12.1inch lcd embedded module with high bright .The brightness 1000nits can easy to read under the sun.
High bright lcd Touch Screen can be used indoor or outdoor.
Product specification | |
Panel size | 12.1" |
Resolution | 1024*768 |
Support Color | 16.7M colors |
Brightness (cd/m²) | 1000 nits (can be customized) |
Contrast ratio | 1000:1 |
View angle | 80°/80°/80°/80° (R/L/U/D) |
Touch panel | |

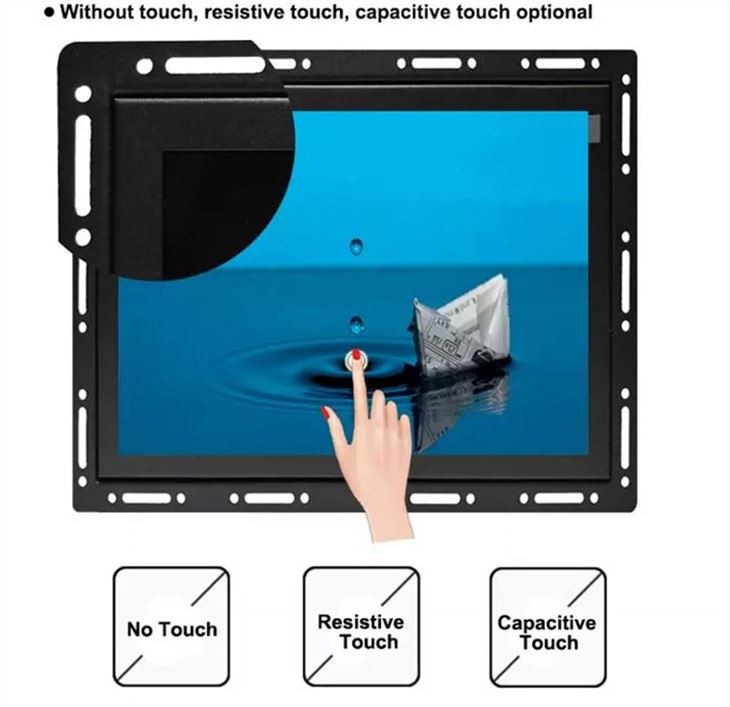

Touchscreen Type | Capacitive Touch (10 points ) |
Surface Hardness | 7H |
Luminousness | 90% |
Touch Interface | USB (RS232 optional) |
Touch response time | 2ms |
Working Life | >50 million times |
OSD | |
OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
Support OS | Windows ,HDMI, Android, ect. |
Power Supply | |
External Power Supply | AC 100 - 240V, 50-60Hz |
Working voltage | DC 12-24V |
Power consumption | ≤35W |
Enclosure | |
Material | Aluminum Alloy |
Color | Black, Silver or customized |
VESA mounting | 75x75mm/100x100mm |
IP grade | Front panel IP55 waterproof |
Operating Environment | |
Temperature Range | operating: -20 to 50°C, storage: -30 to 80°C |
Relative humidity | operating: -5% to 95%, storage: -5% to 95% |
Packing Details | |
Gross weight | about 4.5kg |
Accessories | Power adapter, VGA cable, USB touch cable, embedded screws |
Other | |
Mounting | embedded mounting screws |
wall mounting brackets (optional) | |
desk stand holder (optional) | |
Warranty | 1 year warranty |
Certificates | CE, 3C, RoHS |
