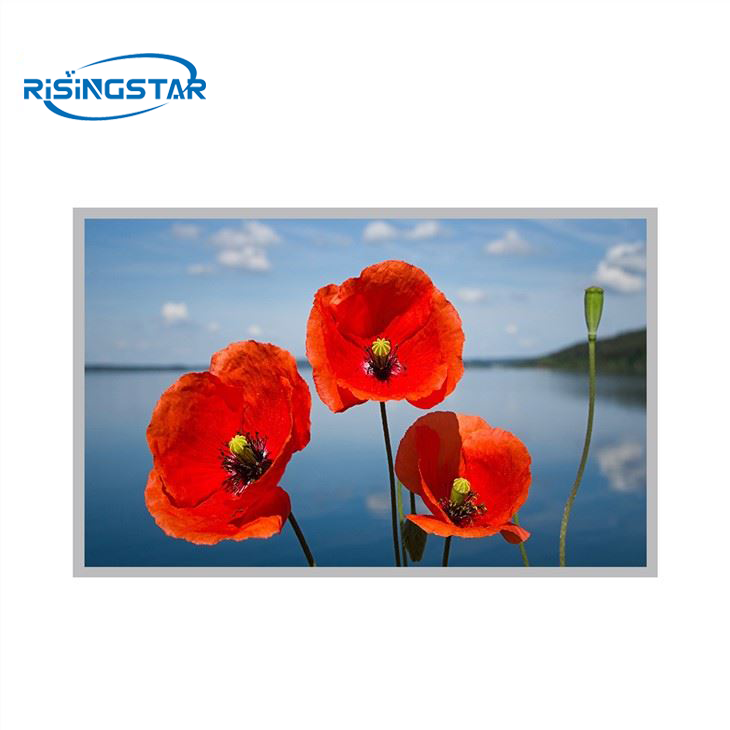

12.1"1000nit Outdoor Tft Lcd Screen Display Panel

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction



Panel BrandInnoluxPanel ModelG121X1-L04
Panel Size12.1"Panel Typea-Si TFT-LCD , LCM
Resolution1024(RGB)×768, XGA, 105PPIPixel FormatRGB Vertical Stripe
Display Area245.76(W)×184.32(H) mmBezel Opening249.0(W)×187.5(H) mm
Outline Size260.5(W)×204(H) ×7.7(D) mmSurfaceAntiglare, Hard coating (3H)
Brightness500nit or customizedContrast Ratio700:1 (Typ.) (TM)
Viewing Angle80/80/70/70 (Typ.)(CR≥10)Display ModeTN, Normally White, Transmissive
Display Colors262K/16.2M   63% NTSCResponse Time5/11 (Typ.)(Tr/Td)
Frequency60HzLamp TypeWLED , 30K hours , With LED Driver
Weight435/465g (Typ./Max.)Touch ScreenWithout
Signal InterfaceLVDS (1 ch, 6/8-bit) , 20 pins Connector
Input Voltage3.3/5.0V (Typ.)
EnvironmentOperating Temp.: -30 ~ 70 °C ; Storage Temp.: -40 ~ 80 °C


Ultra-thin LCD Panel, the brightness reaches 1000nit, the picture is still clear in direct sunlight, the ideal solution for outdoor and window facing, this sunlight readable Lcd Module can be customized brightness: 600-1000nit.

Bright-Brilliant-High-Brightness-Monitor-Signage-ID_1559693827636_03

12.1 inch Digital Display LCD screen with High Brightness LED Backlight Module


1、Backlight Module Structure: all aluminum structure, light and thin, good appearance, effective heat dissipation.

2、LED Backlight: white LED beads, high brightness, 50K hrs lifespan, perfect brightness uniformity.

3、Assemble the light strip: aluminum structure +LED Backlight, fix the LED Backlight on the aluminum structure to facilitate heat conduction.

4、Article lamp: aluminum structure +LED Backlight, fix the LED Backlight on the aluminum


12.1 inch Light LCD Module Sunlight Readable Lcd Panel

Ultra slim 12.1 inch lcd module connect the wires and attach 3M reflective film to make the backlight reflect more uniform to the original brand open cell. Enter the 10,000-class clean room and check the light source to ensure that the LED backlight works normally.


Ultra Slim 12.1 inch LCD Module with Place Optical Flims


Slim High Brightness Lcd module places optical flims: diffusion plate, diffusion film, gloss enhancement film,etc to improve the brightness and uniformity of the backlight.


Slim High Hrightness LCD Module with RisingStar/RisingStar/RisingStar/BOE,etc Original Open Cell


This slim 12.1 inch lcd module assemble RisingStar/RisingStar/RisingStar/BOE,etc original open cell (normal grade and industrial grade high tni110℃)


Ultra Slim 12.1 inch LCD Module with T-con Board


12.1 inch light lcd module assembles T-con board, LED driver boards, constant DC12V power supply.


12.1 inch High Hrightness Module with Brightness Test


This slim high brightness 12.1 inch lcd module, have passed brightness test, color temperature brightness test, Topcon BM-7 color brightness tester.
