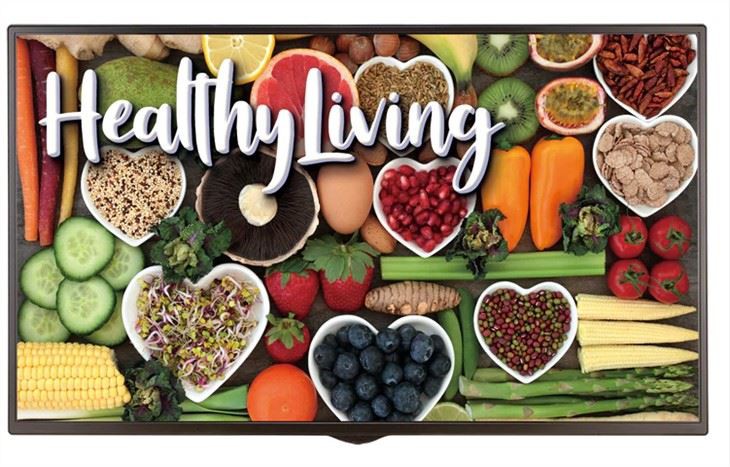

55SM5KE Class - Versatile Signage
55SM5KE Class - Versatile Signage
55SM5KE Class - Versatile Signage

55SM5KE Class - Versatile Signage

Payment Type:L/C,T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Product Attributes

Model No.55SM5KE

BrandRisingStar

Size55-inches

Brightness700-nits

BrandRisingStar

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Place of Originshenzhen

Payment TypeL/C,T/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

The SM5KE series provides dynamic content with clear picture quality, enhancing advertising effectiveness and  helping to generate demand for your brand and products.  RisingSmart Platform has not only been optimized  to develop and run a variety of customized apps, but user convenience has been enhanced with intuitive UI and  value-added functions.

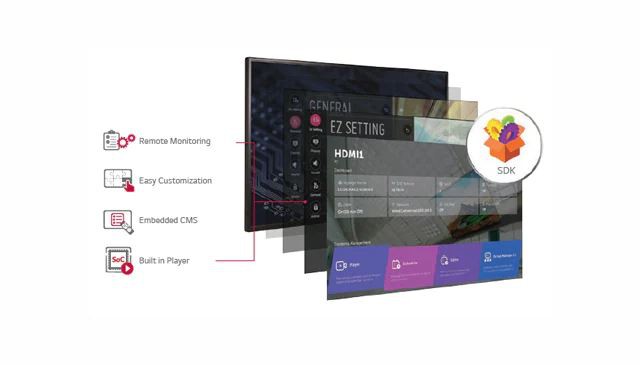

Simple Set-up & Customization

System Integrators can easily build and execute their own apps.   Also, it is easy to use  with intuitive menu and usable without instructions, as all of signage-related functions can be indexed in one  menu.

Simple_Set_up-PDP_FTR_465x265_1531775073153

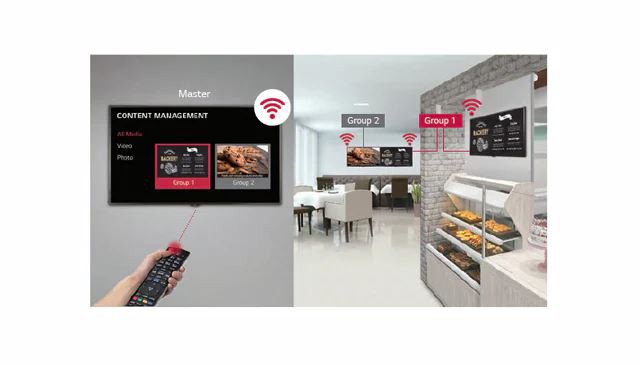

Embedded Content Management

The embedded CMS (Content Management System) allows you to edit and play content, schedule a playlist and even group and control signage via remote control, mouse or even mobile phone, without needing a separate PC or software. This makes content management much easier and user-friendly.

Embedded_Content_Management-PDP_FTR_465x265_1531775246111

Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), shop managers can provide coupons and information in realtime.

Real_time_Promotion-PDP_FTR_465x265_BLUETOOTH-M

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.


Wireless Access Point

The SM5KE series operates as a virtual router which can be an wireless access point for mobile devices.

Wireless_Acces_Point-PDP_FTR_465x265_1531775984528

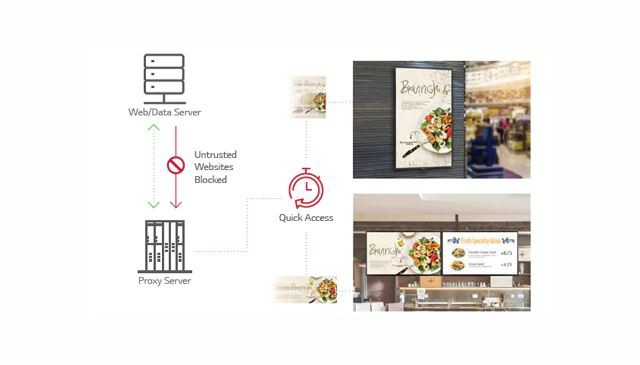

Quick Web Access via Proxy Server

Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

Quick_Web_Access-PDP_FTR_465x265_1531776149956

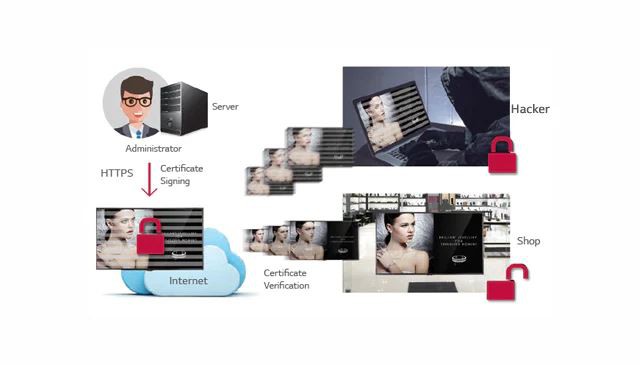

Secured Network Communication

HTTPS* protocol support ensures secure communication between clients and servers. Content or documents using HTTPS can be shared and displayed on Digital Signage, so owners can protect their critical business assets from unwelcome pirates.

Secured_Network-PDP_FTR_465x265_1531776302369

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. This can function as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

Thermal_Printer-PDP_FTR_465x265_1531777051156

Detachable Logo & Built-in Speaker

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sound can be played from built-in speakers, giving advertisements greater impact.


Conformal Coating

Electronics products can be often unavoidably exposed to dust and water during maintenance.

Rising applies a  conformal coating on major circuit boards to minimize such circumstances by protecting against dust, iron  powder, humidity, etc.


Conformal_Coating-PDP_FTR_465x265_1531777474404





Size 55
Resolution 1920*1080(16:9)
Pixel Pitch ( mm ) 0.530×0.530
Active Display Area(mm) 1209.6(H) x 680.4(V)
Brightness(Typ.) 700nits
Contrast Ratio 1300:1
Viewing Angle(H/V) 178/178
Operation Hour 24/7
Haze 2%
Input VGA HDMI RJ45 USB
Output N/A
Bezel Color Black
Bezel Width 11.8×12.8mm (T/B) 11.1x111mm(L/R)
Monitor Dimension(WxHxD) 1234.8×708.1 x59.8mm
VESA Mount 300×400 4*M6
Operation Temperature 0°C to 45°C
Operation Humidity 10% to 80%
Power Supply 100-240V 50/60Hz
Consumption TBD
SPECIAL FEATURES Temperature sensor. Auto brightness sensor. Silent fans cooling Source selection,
Brightness/Contrast/Backlight selet Energy saving, Smart energy saving
Operation Temperature Range 0°Cto45°C(No direct sunlight),0°C to 35°C(Direct sunlight)
Operation Humidity Range 10% to 80%
Induded Accessories Remote controll(w/o battery) ,AC power plug
Optional Accessories Mounting brachets(wall mount,roof hanging)
