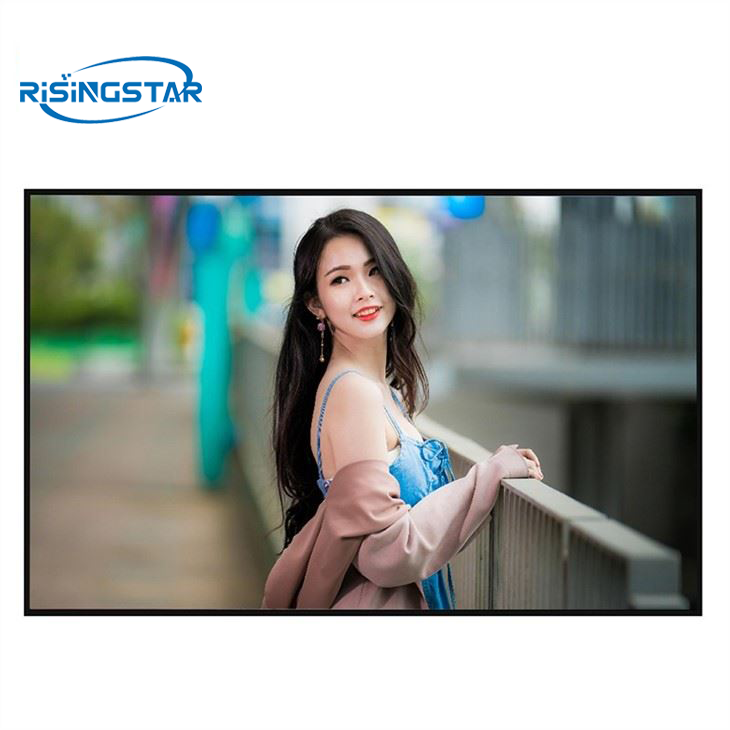

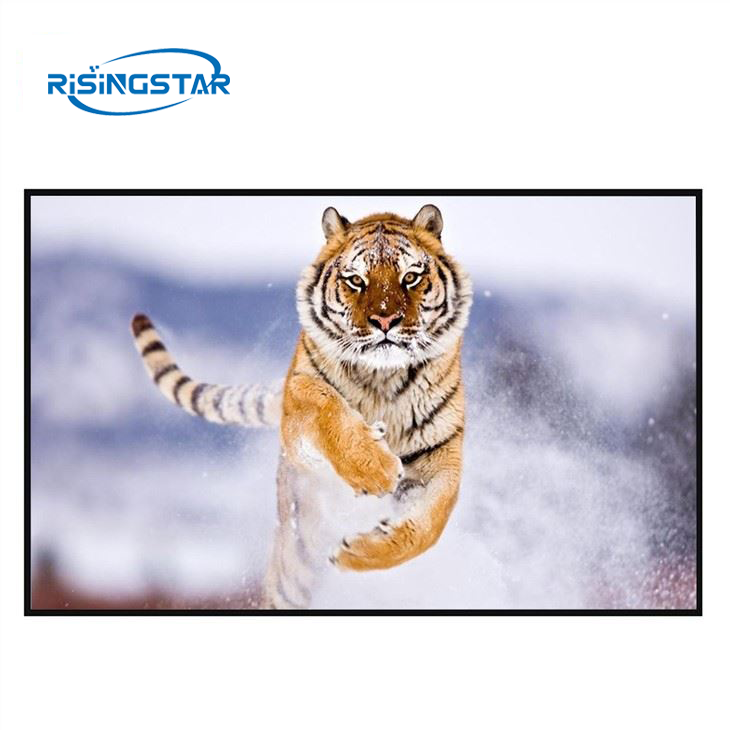

55 Inch High Brightness H-Tni Lcd Module Panel

Product Introduction：

Product Introduction

Size		55inch
Panel type		a-Si TFT-LCD
View area		1214.2 × 685.0 mm (H×V)
Dispaly area		1209.6 × 680.4 mm (H×V)
Outline size		1232 × 708.9 × 28.6 mm (H×V×D)
Dispaly mode		IPS,Normally black,Transmissive
Drive-screen Voltage		12.V (Typ)
Resolution		1920*1080
Display ratio		16:9
Display brightness		2500cd/m2
Constrast Ratio		1300:1
View angle		89/89/89/89
Display color		16.7M , 68% NTSC
Working freqyency		60Hz
Surface Treatment		Haze ,Hard coating(3H)
Light source type		WLED
Backlight lifetime		50000 hrs

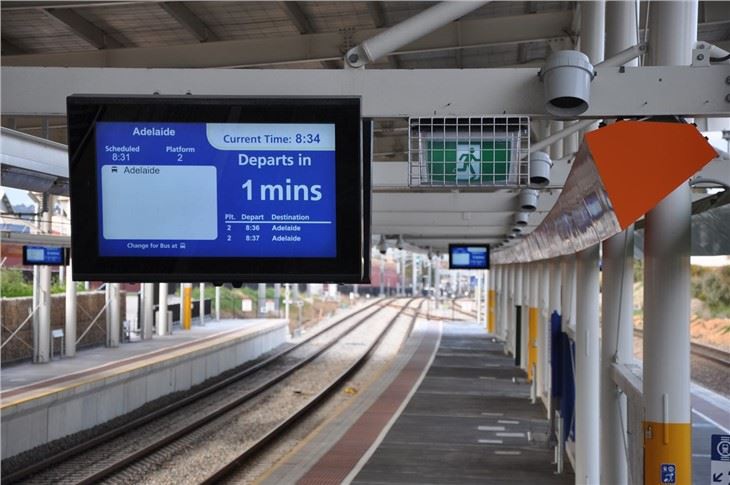

          The Risinglcd 55 inch outdoor high brightness TFT Lcd Module is widely used in commercial applications. The high-brightness LCD module can be directly processed into an open display, Digital Signage, Outdoor TV, outdoor monitor, the advantages of the product:

1. Using RisingStar industrial-grade LCD Panel, suitable for all weathers in the world;

2. The direct-lit backlight design is more reliable in heat dissipation;

3. Optical materials pass the 120℃ reliability test;

4. The backlight driver supports 3 adjustment methods;

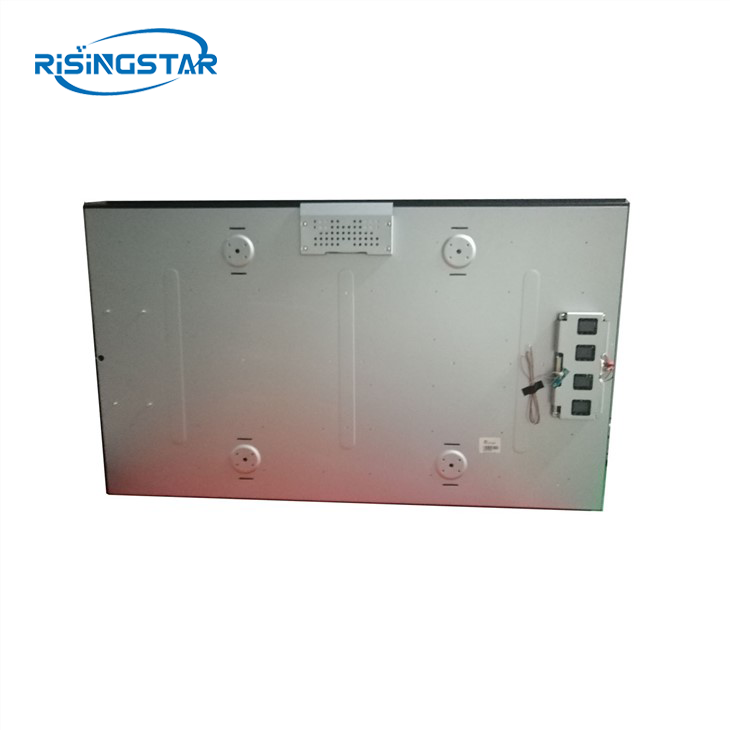

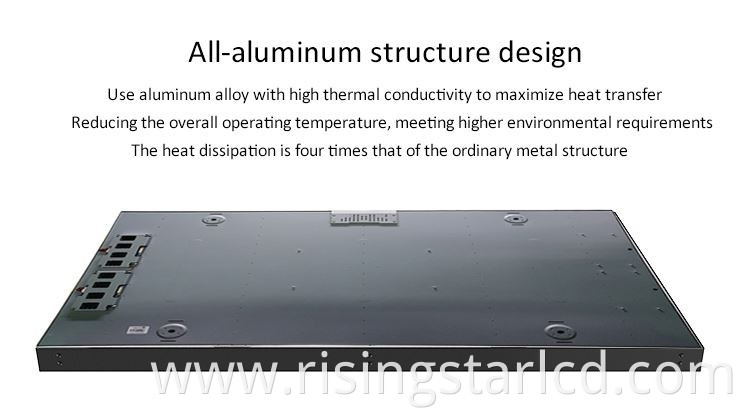

5. The product structure adopts aluminum alloy material;

6. Support double-sided display

7. Support horizontal screen and vertical screen playback mode;
