Advanced Model 32 inch Lcd Display
Advanced Model 32 inch Lcd Display
Advanced Model 32 inch Lcd Display
Advanced Model 32 inch Lcd Display
Advanced Model 32 inch Lcd Display
Advanced Model 32 inch Lcd Display

Advanced Model 32 inch Lcd Display

Payment Type:T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Air,Express

Product Description
Product Attributes

Model No.RS320ENT-ND15

BrandRisingstar

Size32-inch

Brightness1500-nits

BrandRisingstar

Supply Ability & Additional Information

Productivity30K

TransportationOcean,Air,Express

Place of OriginChina

CertificateCE/ROSH/ISO9001

Payment TypeT/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

      Risingstar advanced model 32inch Lcd Display for outdoor and semi-outdoor applications,waterproof Outdoor Lcd monitors. Mainly used in outdoor sunlight ,The screen brightness is above 1500 nits, But the Risingstar advanced model 32inch lcd display brightness can achive 5000nits , of which 1500 nits is a thin side-lit backlight design , 2000 nits or more is a direct backlight solution, all-aluminum structure, advanced model 32inch lcd display features: light, thin, better heat dissipation.


32inch



          Risingstar lcd product size is 10.1 to 98 inches, brightness: 500 to 5000 nits, and can be customized.Technical parameters of 32-inch 1500 nits industrial outdoor high-brightness Lcd Module:

          1. Using RisingStar/BOE /RisingStar original LCD Panel, with the high quality.

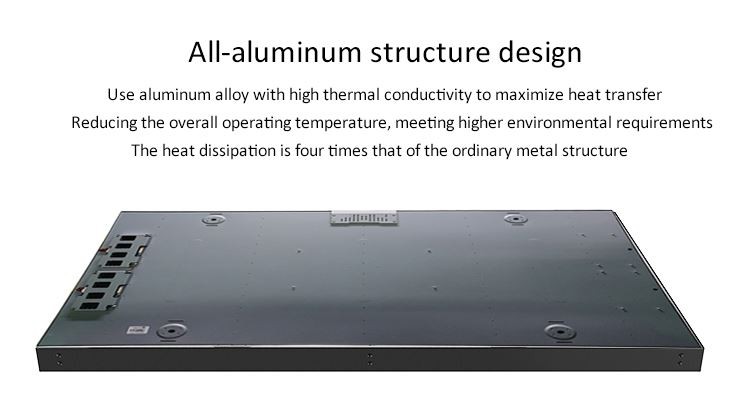

          2 . Aluminum alloy structure, better heat dissipation, High and low temperature resistance -30 to 110 degrees

          3. Auto adjustment brightness

          4. Direct backlight design, higher reliability.

          h3

lcd display

          32inch lcd display




Items

  Specification

  Note

Panel Brand

Risingstar


Diagonal Size

32"


Panel Type

a-Si TFT-Module

RisingStar

Resolution

1920×1080 (RGB)


Pixel Format

RGB Vertical Stripe


Display Area

698.4×392.85mm (H×V)


Outline Size:

703.4×397.9×40mm (H×V×D)


Surface

Antiglare (Haze 1%), Hard coating (2H).


Brightness

500 to 5000 cd/m² (Typ.)


Contrast Ratio

 1300:1 (Typ.) (TM)


waterproof level

   /


Protection level

   /


Support Color

1.67B   100% NTSC


Viewing Angle

89/89/89/89 (Min.)(CR≥10)


Display Mode

IPS, Normally Black, Transmissive .


Response Time

5 (Typ.)(G to G); 8 (Typ.)(MPRT).


Lamp Type

WLED , 60K hours , With LED Driver


Frequency:

 60Hz


Panel Weight

6.2Kgs (Typ./Max.)


Application

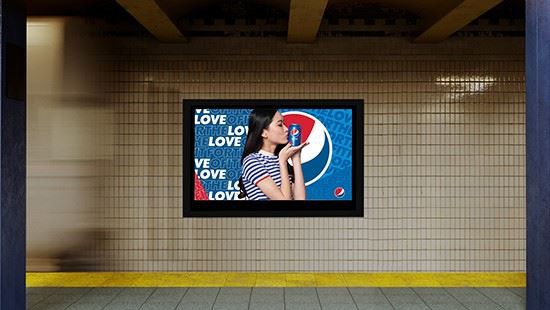

Outdoor Digital Signage


Signal Interface

LVDS


Input Voltage:

24V ,110 to 260V (Typ.).


Operating Temp.

 -30 ~ 110 °C


Storage Temp.

-30 ~ 110 °C
