32 Inch 2500nits Passenger Information Display Solution
32 Inch 2500nits Passenger Information Display Solution
32 Inch 2500nits Passenger Information Display Solution
32 Inch 2500nits Passenger Information Display Solution
32 Inch 2500nits Passenger Information Display Solution
32 Inch 2500nits Passenger Information Display Solution

32 Inch 2500nits Passenger Information Display Solution

Payment Type:D/P,T/T,D/A

Incoterm:EXW,CIF,CFR,FOB

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Product Attributes

Model No.RS320EUY-GD25

BrandRisingstar

Size32-inches

Brightness2500-nits

Supply Ability & Additional Information

Productivity400K

TransportationOcean,Land,Air,Express

Place of OriginChina

CertificateCE/ROSH/ISO9001

Payment TypeD/P,T/T,D/A

IncotermEXW,CIF,CFR,FOB

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

Items

  Specification

  Note

Panel Brand

Risingstar


Diagonal Size

32"


Panel Type

a-Si TFT-Module


Resolution

1920×1080 /3840*2160(RGB)


Pixel Format

RGB Vertical Stripe


Display Area

698.4×392.85mm (H×V)


Outline Size:

703.4×397.9×40mm (H×V×D)


Surface

Antiglare (Haze 1%), Hard coating (2H).


Brightness

2500 cd/m²


Contrast Ratio

 1300:1 (Typ.) (TM)


waterproof level

   /


Protection level

   /


Support Color

1.67B   100% NTSC


Viewing Angle

89/89/89/89 (Min.)(CR≥10)


Display Mode

IPS, Normally Black, Transmissive .


Response Time

5 (Typ.)(G to G); 8 (Typ.)(MPRT).


Lamp Type

WLED , 60K hours , With LED Driver


Frequency:

 60Hz


Panel Weight

6.2Kgs (Typ./Max.)


Application

Outdoor Digital Signage


Signal Interface

LVDS


Input Voltage:

24V ,110 to 260V (Typ.).


Operating Temp.

 -30 ~ 110 °C


Storage Temp.

-30 ~ 110 °C


         Industrial LCD screen are popular used in outdoor/semi-outdoor Digital Signage  displayer.

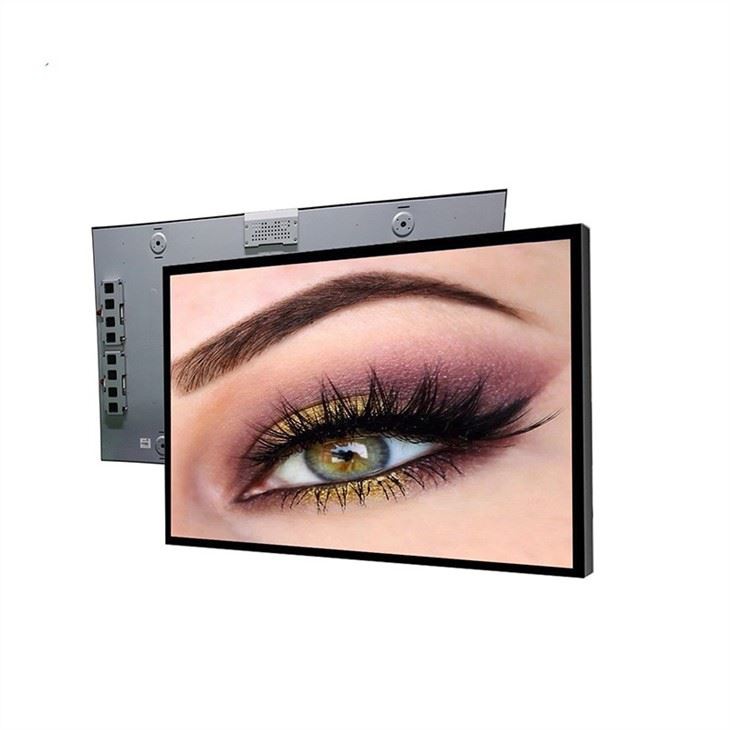

Risingstar industrial lcd screen 32 inch the brightness 2500nits with aluminum alloy shell,increase the heat dissipation. backlight life can achieve 60000h, industrial lcd screen features as below:

          1. Using RisingStar/BOE /RisingStar original LCD Panel, with the high quality.

          2 . Aluminum alloy structure, better heat dissipation, High and low temperature resistance -30 to 110 degrees

          3. Auto adjustment brightness

          4. Direct backlight design, higher reliability.

          5. Low power consumption

Risingstar focuses on passenger information display solutions, providing users worldwide with high brightness TFT LCD displays. It adopts Hi Tni LCD panel technology with high LED backlight, and the latest locally dimmable LED backlight technology provides audiences with a better viewing experience while saving 35% -70% energy. The Risingstar local dimming technology has the same display effect as OLED, with the advantage of reaching up to 5000 nits, which is the ultimate brightness that OLED cannot achieve. Users praise Risingstar's partial dimming technology for outdoor OLED screens.




          lcd screen

            This low power consumption LCD screen can be widely used for public places, such as shopping mall, restaurant,airport, square and commercial buildings. In addition, there is no doubt that the free editing software can support any split screen in horizontal and vertical orientation.
