32 Inch High Tni(110℃)2500nits LCD Panel
32 Inch High Tni(110℃)2500nits LCD Panel
32 Inch High Tni(110℃)2500nits LCD Panel

32 Inch High Tni(110℃)2500nits LCD Panel

Payment Type:T/T,D/A,D/P,Paypal

Incoterm:EXW,CIF,FOB,CFR

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Product Attributes

Size32-inches

Brightness2500-nits

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Payment TypeT/T,D/A,D/P,Paypal

IncotermEXW,CIF,FOB,CFR

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

32 Inch High Tni(110℃)1500nits LCD Panel

High tni LCD panel test introduction:

This is the test for a Hi-Tni Lcd panel which can afford the temperature from -30 Celsius degree to +110 degree, the test will start at the room temperature and continuely increasing or decreasing the temperature to the specific numbers, sometimes it will do this change suddenly to make sure the display keep working under the extremely environment, the entire test will keep 48 hours to make the data reliable.

During the test, display should keep working, the inner component should not have any "out of shape" problems, the cable should keep unimpeded so the electricity and signal can be transimitted, both of the metal and galsses part of the surface of the panel should not have black spots or anything will effects the visible of the display.

Test by yourself or report from third is allowed, warmly welcom for details or any questions.

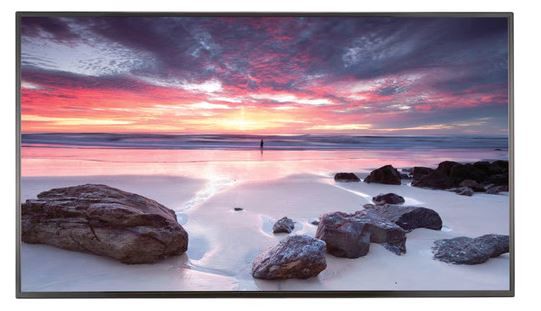

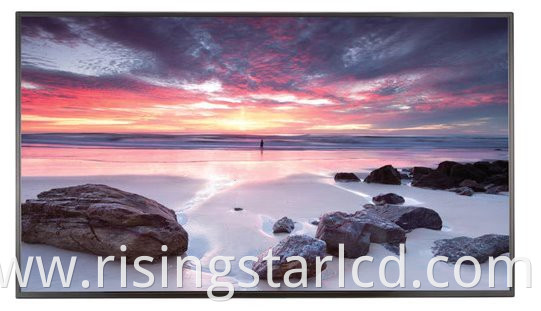

High tni LCD panel pictures:

RisingStar LD550DUN-TKH1 1500 nits high brightness tft module

High tni LCD panel technical parameters:

manufacturer RISINGLCD Model RS320ENT-ND25

Diagonal dimensions32.0 inchtypea-Si TFT-LCD, Lcd Module

resolution1920(RGB)×1080   FHD   69PPIPixel arrangementRGB vertical strips

Display area698.4 (horizontal) ×392.85 (vertical) mmExterior dimensions719.2 (horizontal) ×413.7 (vertical) ×28.6 (thick) mm

Opening area703.4 (horizontal) × 397.9 (vertical) mmSurface treatmentHaze (44%), Hard coating (3H)

Displays brightness2500 cd/m² (Typ.)Comparison3000:1 (Typ.) (Transmission)

Recommended perspectiveFull viewResponse time8 (Typ.) (G to G) ms

Viewing angle89/89/89/89 (Typ.) Display modeAMVA3, often black display, transmissive

Support for colors16.7M/1.07B , 99% sRGBThe type of light sourceWLED, 60K hours, with LED driver

weight4.91Kgs (Typ.)Application products

Frame frequency60Hz

The interface type51 pins LVDS (2 ch, 8/10-bit), terminal

Voltage supply12.0V (Typ.)

Application environmentOperating temperature: -30 ~ 110 °C ; Storage temperature: -30 ~ 110 °C
