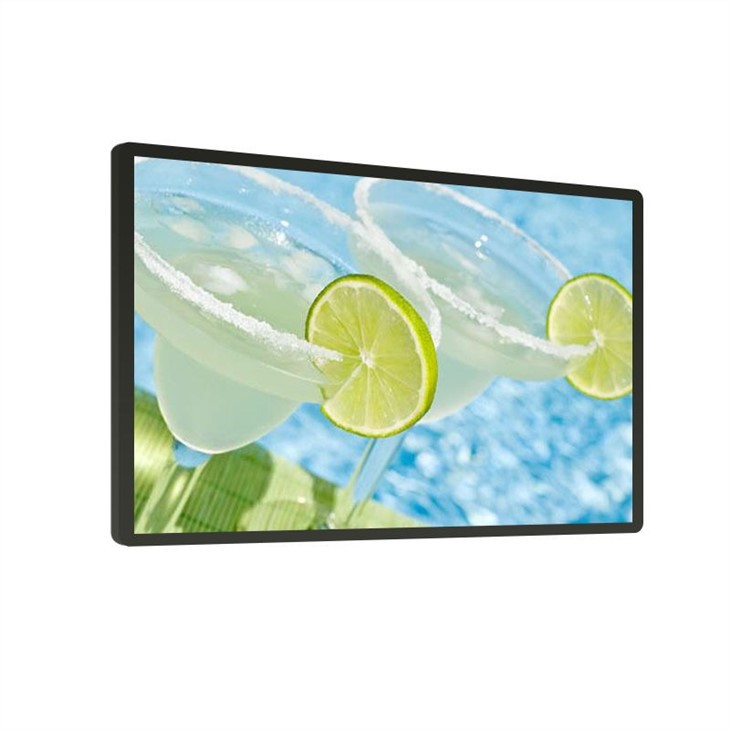

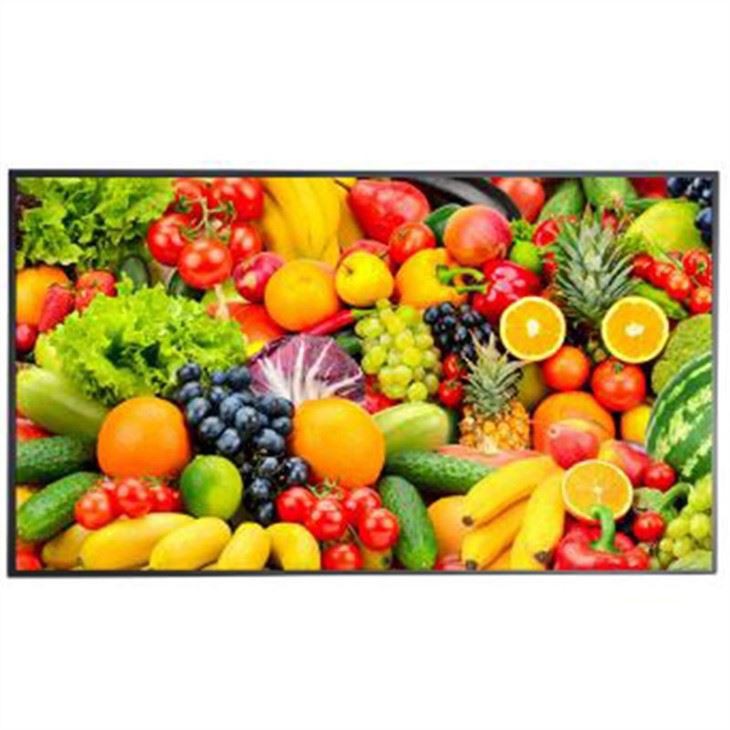

55"2000nits Outdoor HTNI TFT LCD Panel Module

Payment Type:T/T,D/P,D/A

Incoterm:EXW,CIF,CFR,FOB

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Product Attributes

BrandRisingLCD

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Place of OriginShenzhen

Payment TypeT/T,D/P,D/A

IncotermEXW,CIF,CFR,FOB

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction


Panel Brand RISINGSTAR Panel Model RS550DPY-GD20
Panel Size 55.0" Panel Type a-Si TFT-LCD , LCM
Resolution 1920(RGB)×1080[FHD]  Pixel Format RGB Vertical Stripe
Display Area 1212.6(W)×683.4(H)mm Bezel Opening /
Outline Size 1242.1(H)×718(V)×60.3(D)mm(Typ.) Surface Antiglare (Haze 3%), Hard coating (2H)
Brightness 2000 cd/m²or customized Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode Transmissive mode, Normally black
Display Colors 16.7M   Response Time 6/9 (Typ.)(G to G) ms
Frequency 60Hz Input Voltage 12.0V (Typ.)
Weight 16.9kg(Typ.) 17kg(Max) Signal Interface LVDS (2 ch, 8-bit) , 51 pins Connector
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

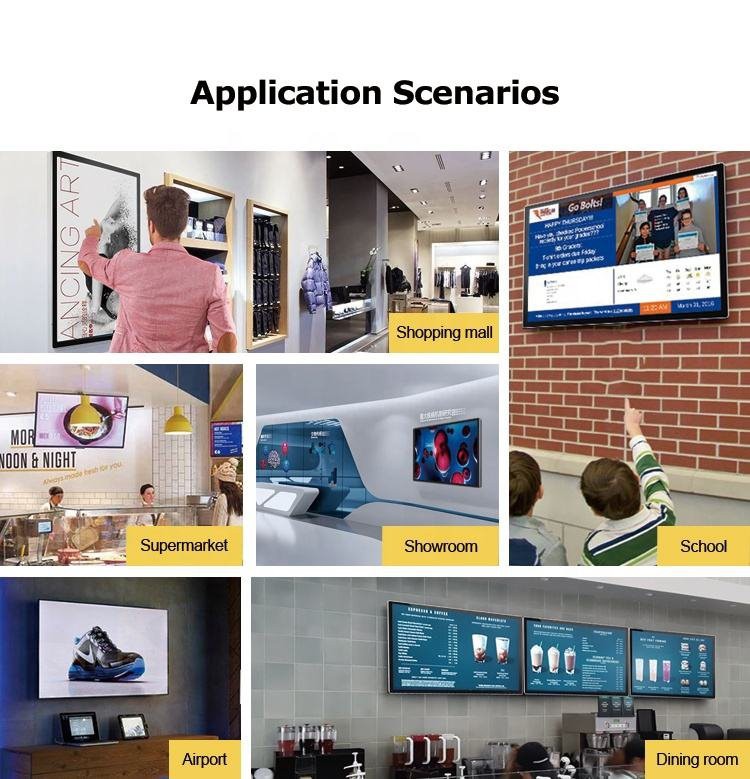

Risingstar industrial display adopts sturdy metal frame, flat panel LCD Panel design, compact and durable, with the advantages of shock resistance, anti-interference, heat dissipation, etc., while meeting the needs of embedded or external installation. Capacitive Touch Screen with 10-point touch, fast, accurate and smooth touch experience. Widely used in industrial display, medical display, commercial Lcd Display, financial equipment, self-service terminals, etc.


Features

1. Professional Outdoor High Brightness Lcd Panel manufacturer

2. Professional high-brightness LCD screen, can withstand 110 high temperature

3. RisingStar, RisingStar, BEO, RisingStar, Innolux partner companies

4. Provide you with professional outdoor technical consultation and guidance

5. Using Risingstar's unique aluminum profile structure, it can match the LCD panels of various manufacturers.

6. All metal structure, good heat dissipation.

7. Direct type structure, equipped with LED backlight Uniform brightness, low power consumption.

8. Automatic dimming system can adjust the brightness of the bright LCD screen according to the ambient light, saving energy and electricity.

high bright LCD TFT-01

Q: Can I purchase a sample for my order?

A:Yes, please feel free to contact us.


Q:how can we guarantee quality?

A:All products should pass the 48-hours test before the shipment.



Q:What are our advantages?

A:Low price high quality products, timely tracking information.


Q:How long is the warranty?

A:We offer one year warranty from the date of delivery.


Q:Are you trading company or manufacturer ?

A: We are factory.
