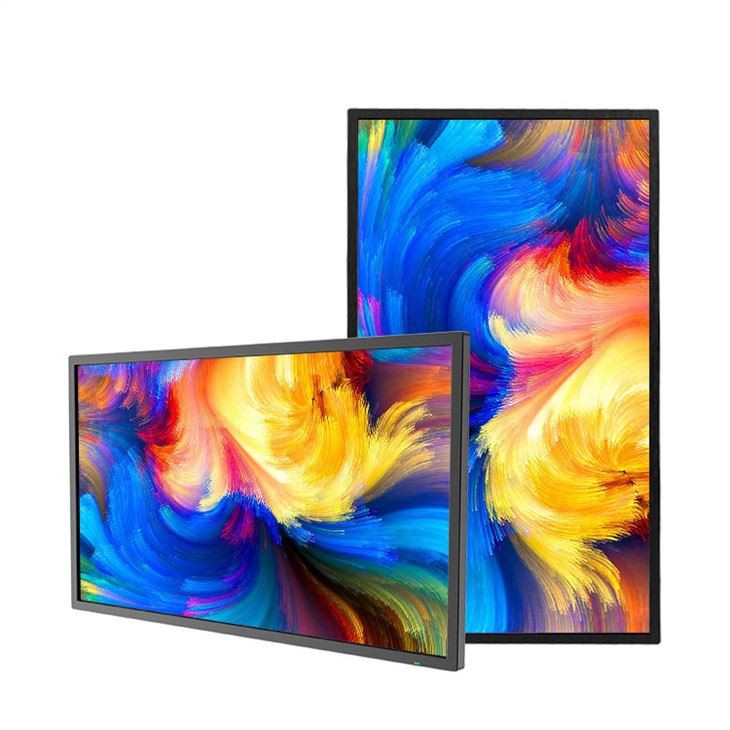

55inch 4000nits Outdoor Industrial LCD Panel
55inch 4000nits Outdoor Industrial LCD Panel
55inch 4000nits Outdoor Industrial LCD Panel
55inch 4000nits Outdoor Industrial LCD Panel

55inch 4000nits Outdoor Industrial LCD Panel

Payment Type:T/T,D/P,D/A,L/C

Incoterm:EXW,CIF,CFR,FOB

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Product Attributes

Size55-inches

Brightness4000-nits

BrandRisingLCD

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Payment TypeT/T,D/P,D/A,L/C

IncotermEXW,CIF,CFR,FOB

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction


Panel Brand RISINGSTAR Panel Model RS550DPY-GD40
Panel Size 55.0" Panel Type a-Si TFT-LCD , LCM
Resolution 1920(RGB)×1080[FHD]  Pixel Format RGB Vertical Stripe
Display Area 1212.6(W)×683.4(H)mm Bezel Opening /
Outline Size 1242.1(H)×718(V)×60.3(D)mm(Typ.) Surface Antiglare (Haze 3%), Hard coating (2H)
Brightness 4000 cd/m²or customized Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode Transmissive mode, Normally black
Display Colors 16.7M   Response Time 6/9 (Typ.)(G to G) ms
Frequency 60Hz Input Voltage 12.0V (Typ.)
Weight 16.9kg(Typ.) 17kg(Max) Signal Interface LVDS (2 ch, 8-bit) , 51 pins Connector
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

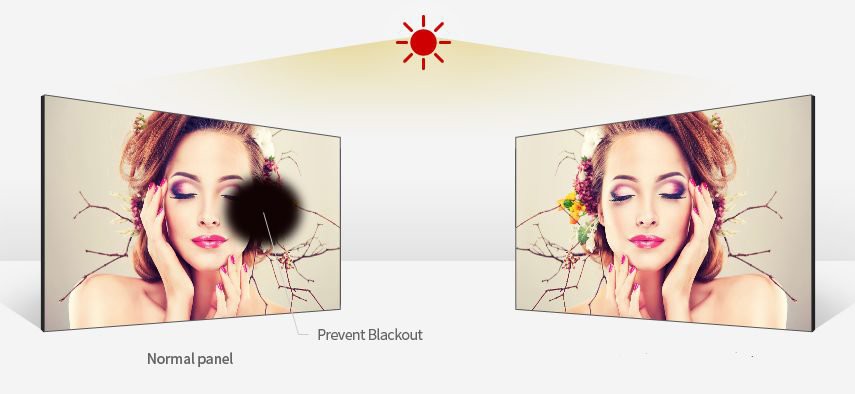

1.Wide temperature, up to 110 degrees Celsius, even in direct sunlight, it can still remain bright and clear, without worrying about dark spots appearing in direct sunlight.

High-tni110

2. Wide viewing angle, IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

3. Super high brightness: 500-5000nit.

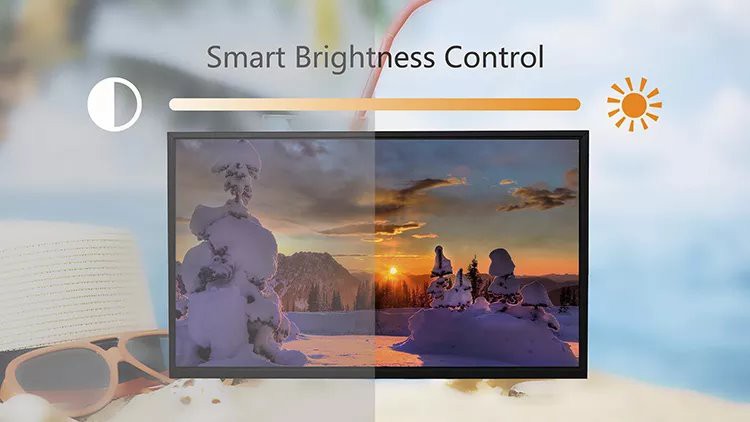

4. Intelligent brightness adjustment, automatically adjust the brightness according to the external environment.

Smart Brightness Control


5. Support horizontal and vertical display

6. Industrial grade quality, support 24/7 operation

7. Polarized technology, wearing polarized sunglasses, the content is also clearly visible.

8. All-aluminum structure, thin and beautiful, the heat dissipation is four times that of ordinary metal

9. LED backlight (50K hours life), uniform brightness, low power consumption.

10. Cooperative enterprises of RisingStar, RisingStar, BEO, RisingStar, Innolux.

11. Customized service: to provide you with a complete solution.

high bright LCD TFT-01


Q: Can I purchase a sample for my order?

A:Yes, please feel free to contact us.


Q:how can we guarantee quality?

A:all products should be tested for 48 hours before the shipment.


Q:What are our advantages?

A:Low price high quality products, timely tracking information.


Q:How long is the warranty?

A:We offer one year warranty from the date of delivery.


Q:Are you trading company or manufacturer ?

A: We are factory.
