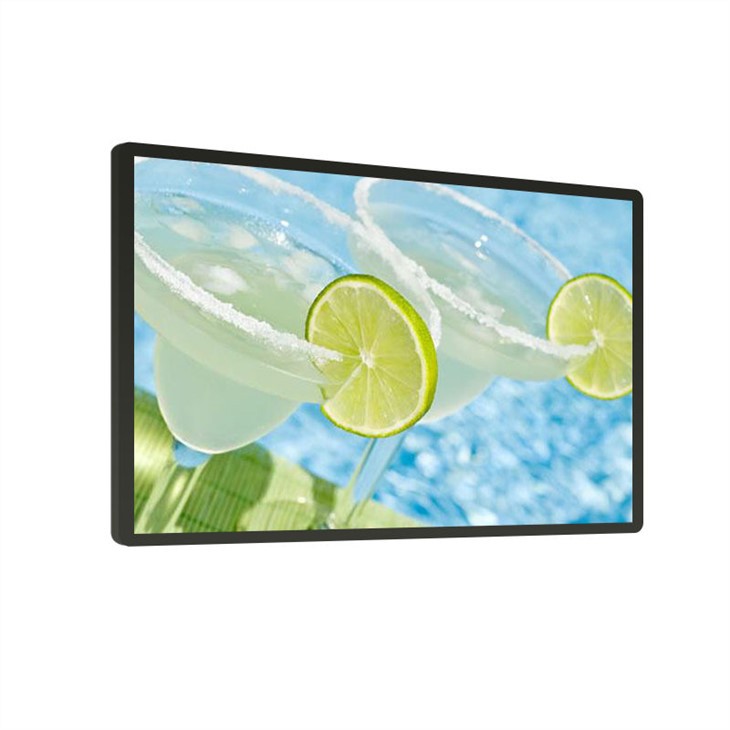

55"3500nits Outdoor industrial Lcd Display Panel

Payment Type:T/T,D/A,D/P,L/C

Incoterm:EXW,CIF,CFR,FOB

Min. Order:1 Piece/Pieces

Transportation:Land,Ocean,Air,Express

Product Description
Product Attributes

BrandRisingLCD

Size55-inches

Brightness3500-nits

BrandRisingLCD

Supply Ability & Additional Information

TransportationLand,Ocean,Air,Express

Place of OriginShenzhen

Payment TypeT/T,D/A,D/P,L/C

IncotermEXW,CIF,CFR,FOB

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction
Panel Brand RISINGSTAR Panel Model RS550DPY-GD35
Panel Size 55.0" Panel Type a-Si TFT-LCD , LCM
Resolution 3840*2160 Pixel Format RGB Vertical Stripe
Display Area 1212.6(W)×683.4(H)mm Bezel Opening /
Outline Size 1242.1(H)×718(V)×60.3(D)mm(Typ.) Surface Antiglare (Haze 3%), Hard coating (2H)
Brightness 3500 cd/m²or customized Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode Transmissive mode, Normally black
Display Colors 16.7M   Response Time 6/9 (Typ.)(G to G) ms
Frequency 60Hz Input Voltage 12.0V (Typ.)
Weight 16.9kg(Typ.) 17kg(Max) Signal Interface LVDS (2 ch, 8-bit) , 51 pins Connector
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C


INTRODUCE


High-brightness Lcd Module , the brightness can reach more than 3000nit, and it is readable in sunlight.

Optional touch function.


Features

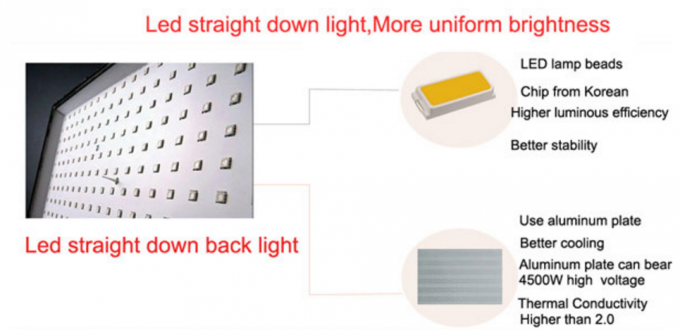

1. Direct type structure, equipped with LED backlight (50K hours life), uniform brightness.

2. Automatic dimming system, which automatically adjusts the brightness according to the ambient light, saving energy and electricity.

3. All-aluminum structure, thin and beautiful, and the heat dissipation is four times that of ordinary metal.

4. Wide viewing angle, 178/178 wide viewing angle with high performance

5. High resolution 2K/4K resolution optional

6. Industrial glass, the screen will not be blackened under direct sunlight.

7. VGA DVI interfaces, Touch Screen options if requested

8. Industrial-grade panel, support 24-hour all-weather operation

20170809214615_99205


Service


1.We offer one year warranty for all products from the date of delivery.

2. Any questions, we provide online answers within 12 hours



Risingstar is a direct supplier for a range of Outdoor Digital Signage, high bright screens for sunlight readable application.

1.High Brightness Lcd panel

2.Window Facing Display

3.Full Outdoor Digital Signage

High-brightness high-definition LCD module screen, available in various sizes (10.1-98 inches). Brightness support customization (500-5000 brightness)

_202208151729331


Q: Can I purchase a sample for my order?

A:Yes, please feel free to contact us.


Q:how can we guarantee quality?

A:Always final Inspection before shipment;


Q:What are our advantages?

A:Low price high quality products, timely tracking information.


Q:How long is the warranty?

A:We offer one year warranty from the date of delivery.


Q:Are you trading company or manufacturer ?

A: We are factory.
