Shenzhen Risingstar Outdoor High Light LCD Co., Lt
Min. Order:1 Piece/Pieces
Size: 10.1 inch
Brightness: 1000 nits
Contrast Ratio: 1000:1
Resolution: 1280*800
Operating Temperature: -10 - 50°C
Small size embedded outdoor displays, 10.1 inch TFT 1000 nits lcd monitor. The content displayed on the screen can be clearly seen in a well-lit environment, Can be used with all kinds of charging piles, self-service vending machines, kiosks and other server terminals.
If you have other needs, please contact us, we will customize the most suitable liquid crystal display solution according to your needs.
Embedded outdoor displays product feature
10.1" TFT LCD Panel
1280*800 resolution
outdoor used ,the brightness from 500nits to 1500 nits optional
Capacitive touch panel, covered with 2mm tempered glass Solid and reliable for vandal proof
VGA HDMI DVI USB interface
High performance mainboard, 7/24 continuous operation
Support 12-24V wide voltage

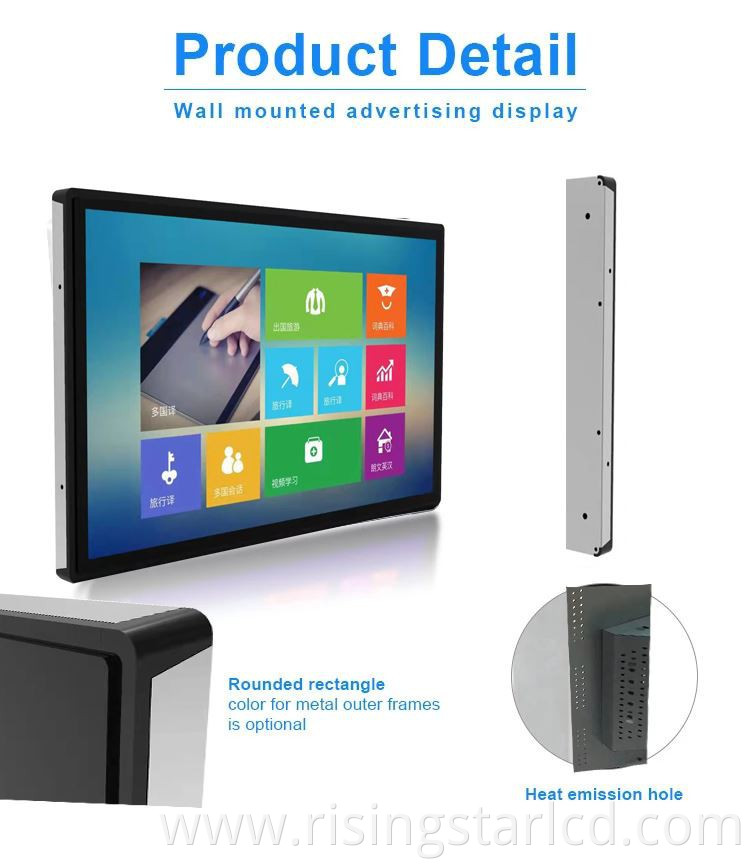

Ultra-thin front bezel 3mm, ideal for embedded mounting
Front panel IP55 waterproof dust prevention
Wide temperature operation: -10 - 50°C
| Product specification | |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 1280*800 or 1024*600 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits (can be customized) |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows ,HDMI, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | DC 12-24V |
| Power consumption | ≤35W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Black, Silver or customized |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP55 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 50°C, storage: -20 to 80°C |
| Relative humidity | operating: -5% to 95%, storage: -5% to 95% |
| Packing Details | |
| Gross weight | about 4kg |
| Accessories | Power adapter, VGA cable, USB touch cable, embedded screws |
| Other | |
| Mounting | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, 3C, RoHS |
