12.1 Inch High Brightness 1000cd/m2 Lcd Modules
12.1 Inch High Brightness 1000cd/m2 Lcd Modules
12.1 Inch High Brightness 1000cd/m2 Lcd Modules
12.1 Inch High Brightness 1000cd/m2 Lcd Modules
12.1 Inch High Brightness 1000cd/m2 Lcd Modules

12.1 Inch High Brightness 1000cd/m2 Lcd Modules

Payment Type:T/T,D/P,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Payment TypeT/T,D/P,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction
12.1 Inch High Brightness 1000cd/m2 Lcd Modules



Size
12.1inch
Panel item
RS121ENT-NE10
Panel type
a-Si TFT-LCD
Display mode
 IPS,Normally white,transmissive display
Pixels
1280*800
brightness
1000cd/m2
Constrast Ratio
700:1
Response Time
4/12ms
View angle
80/80/80/60
View area
263.52*165.6mm(H*V)
Dispaly area
261.12*163.2mm(H*V)
Outline Size
283*185.1*10.2mm(H*V*D)
Signal Type
WLED
Working freqyency
60Hz
Working temperature
-30~80゚C
Storage Temperature
-30~80゚C
Display ratio
16:9
Display color
16.7m
Supply Voltage
3.3V
Surface Treatment
Haze
Weight
0.62kgs

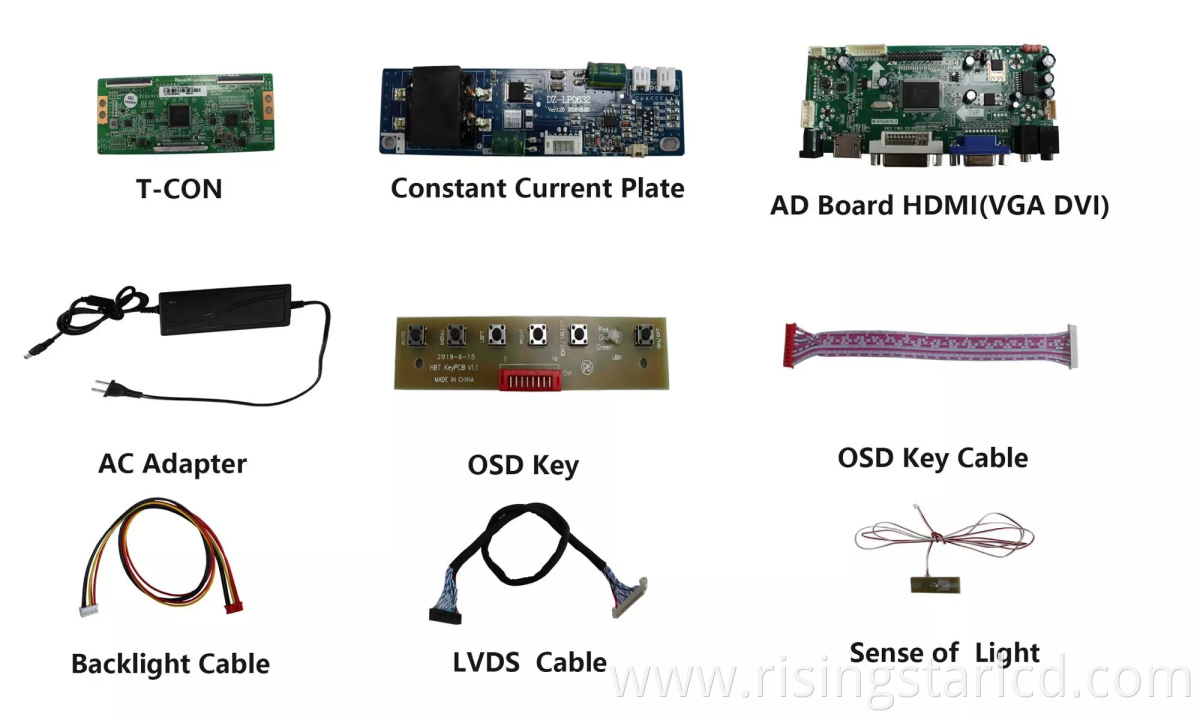

Product Additional Accessories
Product Feature and application
12.1inch 1280*800 ,Brightness 500-1300nits , LVDS,IPS, Lcd Display Screen,The Brightness can Be Customized.

Shenzhen RisingStar Outdoor Highlight LCD Technology Co., uses a dedicated system for LED backlight, which is not only more energy efficient than traditional CCFL backlight, it is also quite bright.
Shenzhen RisingStar Outdoor Highlight LCD Technology Co., specializes in producing ultra-High Brightness Lcd modules that can be  easily viewed in direct sunlight, such as store windows or outdoor cabinets.



Bright highlight, uniform brightness, color saturation
RisingStar Outdoor's advanced color management solution provides more detailed color management options, allowing users to fine-tune colors either automatically or manually;
Side-entry lighting design, brightness 500--1000nits (optional), brightness uniformity can reach more than 90%;The color saturation is high, the picture is clear, and the picture quality is fine.
