Shenzhen Risingstar Outdoor High Light LCD Co., Lt

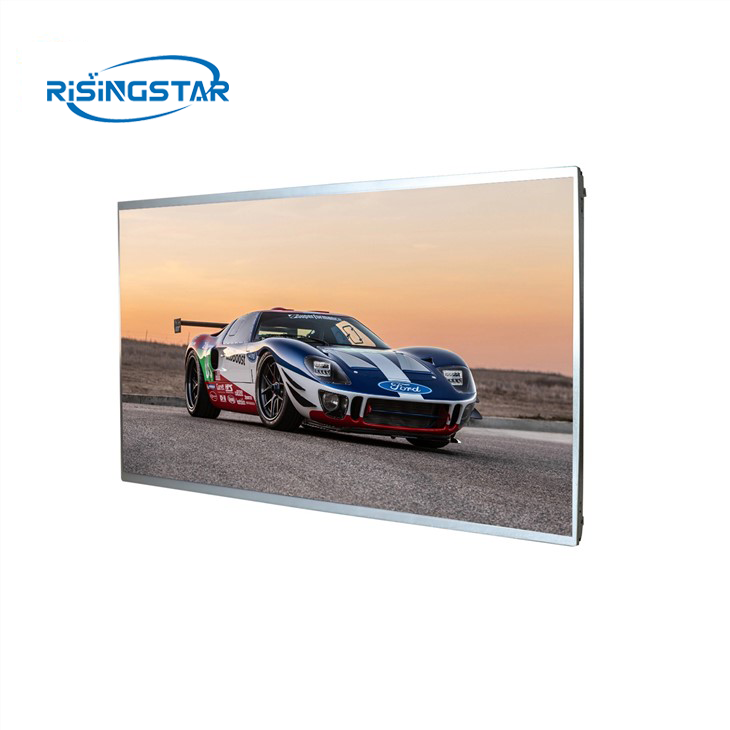

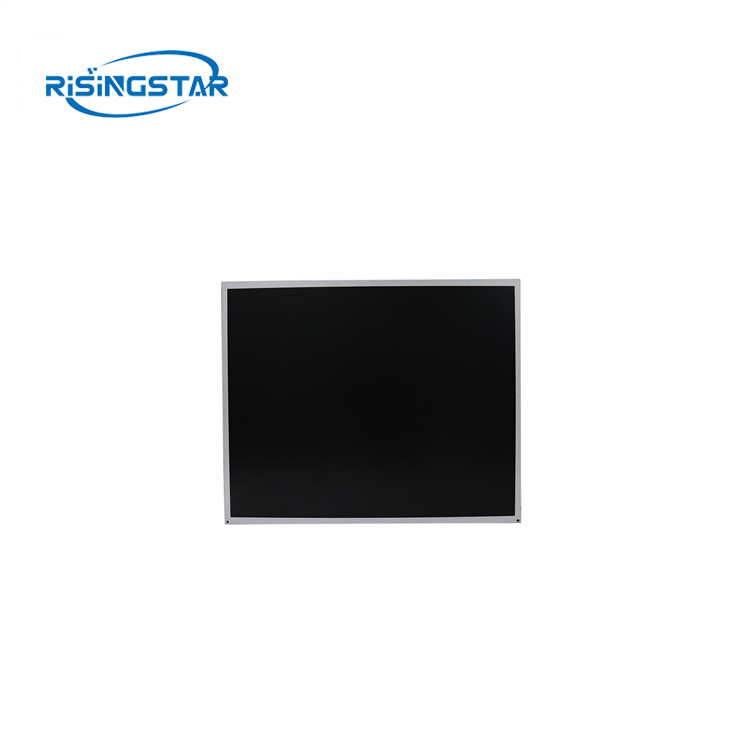

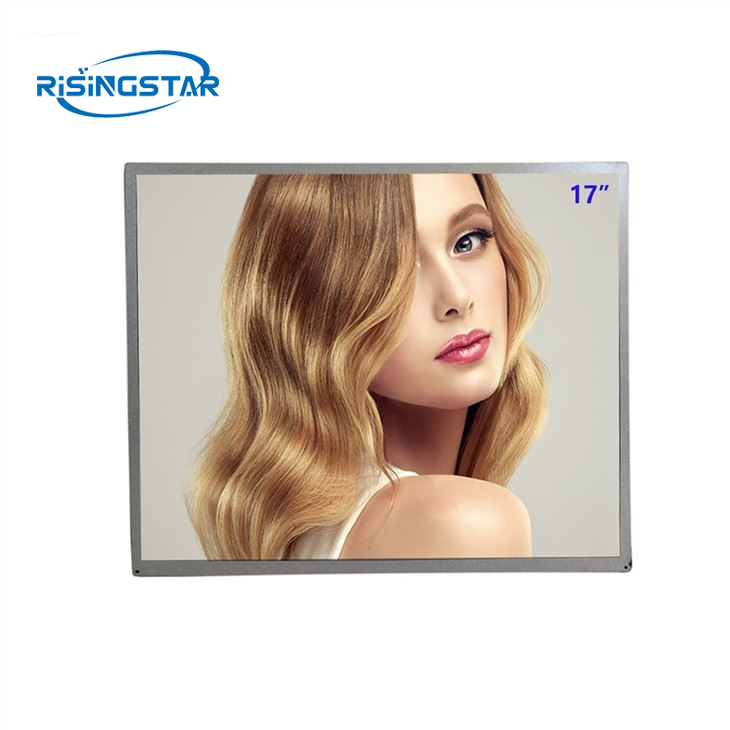

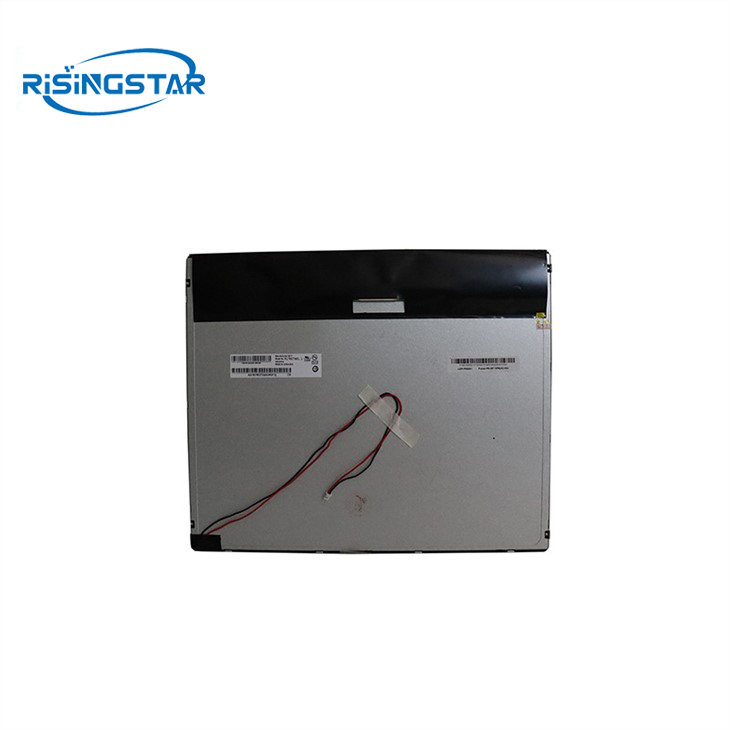

17inch high bright Lcd Module,Brightness 1000 cd/m2 TFT LCD screen,Original design, Stability highlight ,Full size design,New original package display module structure and installation method thereof,High flexibility, excellent heat dissipation and convenient maintenance。
| Size | 17inch | |||
| Panel item | RS170NET-N10 | |||
| Panel type | a-Si TFT-LCD | |||
| Display mode | IPS,Normally black，transmissive display | |||
| Pixels | 1280*1024 | |||
| brightness | 1000cd/m2 | |||
| Constrast Ratio | 1000:1 | |||
| Response Time | 3.8/1.2ms | |||
| View angle | 85/85/80/80 | |||
| View area | 341.72*274.14mm(H*V) | |||
| Dispaly area | 337.92*270.336mm(H*V) | |||
| Outline Size | 358.5*296.5*10.8mm(H*V*D) | |||
| Signal Type | LVDS | |||
| Working freqyency | 60Hz | |||
| Working temperature | 0- 50ﾟC | |||
| Storage Temperature | -20 - +60ﾟC | |||
| Display ratio | 5:4 | |||
| Display color | 16.7m | |||
| Backlight Voltage | 5V | |||
| Backlight Power Consumption | 8.4w | |||
| Surface Treatment | Haze ,Hard coating(3H) | |||
| Weight | 1.27kgs | |||

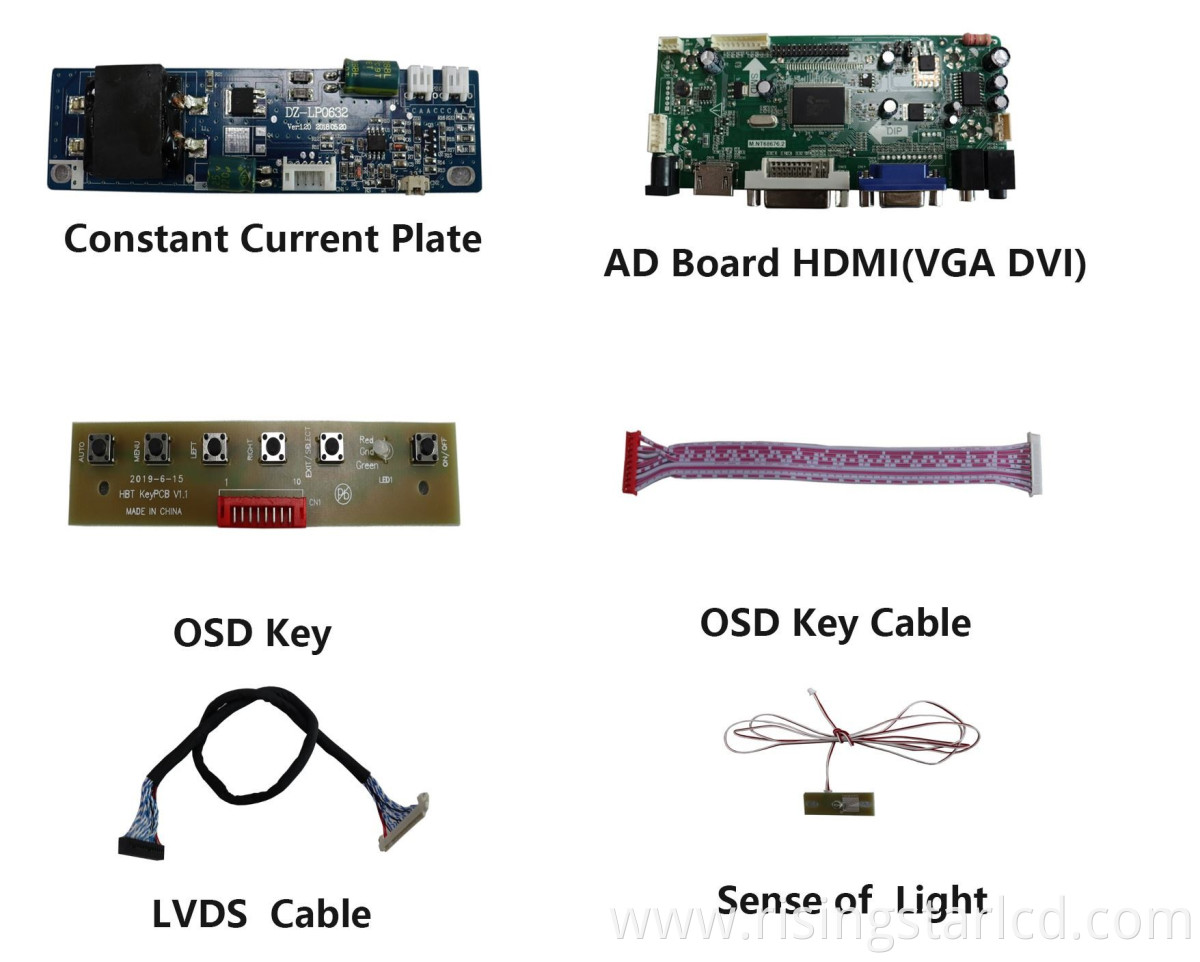

Product Additional Accessories
Product application:
Hot Tags: 17inch high bright lcd module, China, factory, cheap, price, customized, quotation, window facing LCD, 75 inch LCD Panel, Outdoor Tft Lcd, Lcd Display supplier, 43 inch lcd board, Brightness LCD Panel, 43 inch signage panel, LCD panel, LCD module, High Brightness Display.
Square Lcd Screen 17inch
1280x800 High Bright Lcd Display 12.1inch
