High Brightness 23.6 Inch 1000 Nits LCD
High Brightness 23.6 Inch 1000 Nits LCD
High Brightness 23.6 Inch 1000 Nits LCD

High Brightness 23.6 Inch 1000 Nits LCD

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

High brightness 23.6 inch 1000 nits Lcd Display module IPS screen LCD Panel

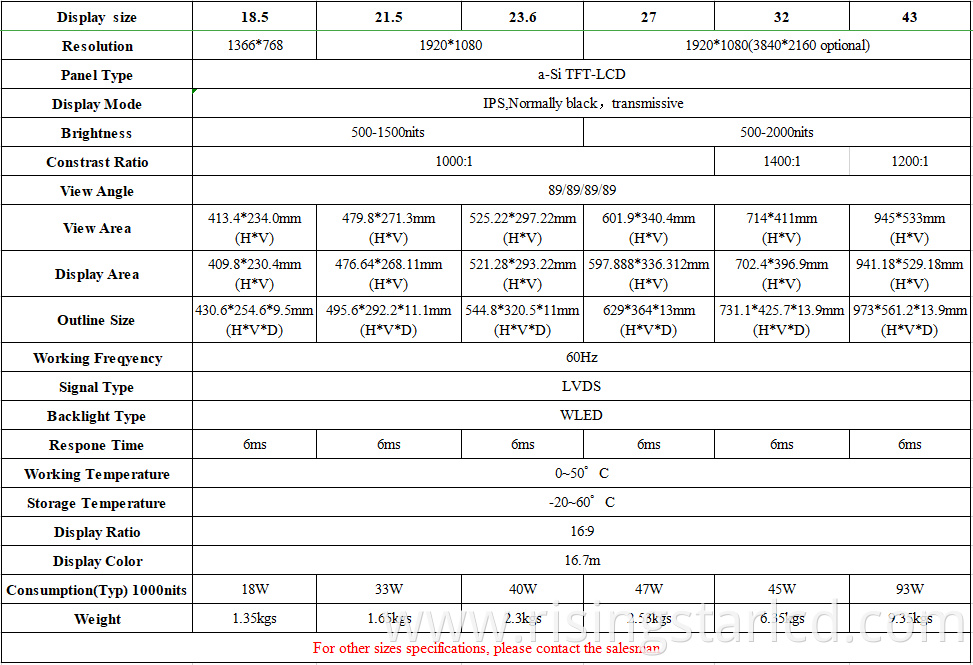

ize
23.6inch
Panel type
a-Si TFT-LCD
View area
525.22 × 297.22 mm (H×V)
Dispaly area
521.28 × 293.22 mm (H×V)
Outline size
544.8 × 320.5 mm (H×V×D)
Dispaly mode
IPS,Normally black,Transmissive
Drive-screen Voltage
5V (Typ)
Resolution
1920*1080 , WXGA
 Display ratio
16:9
Display brightness
500- 1500cd/m2
Constrast Ratio
1000:1
 View angle
 85/85/80/80
 Display color
16.7M , 72% NTSC
Working freqyency
60Hz
Surface Treatment
Haze ,Hard coating(3H)
Light source type
WLED
Backlight lifetime
50000 hrs


Hot Tags: high brightness 23.6 inch 1000 nits lcd, China, factory, cheap, price, customized, quotation, window facing LCD, high bright lcd displays, LCD display UK, highlight LCD screen, 15 4 inch TFT panel, high quality outdoor screen, Ultra Brightness Screen
