1000 Nits Lcd Module With Driver Board
1000 Nits Lcd Module With Driver Board
1000 Nits Lcd Module With Driver Board
1000 Nits Lcd Module With Driver Board
1000 Nits Lcd Module With Driver Board

1000 Nits Lcd Module With Driver Board

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

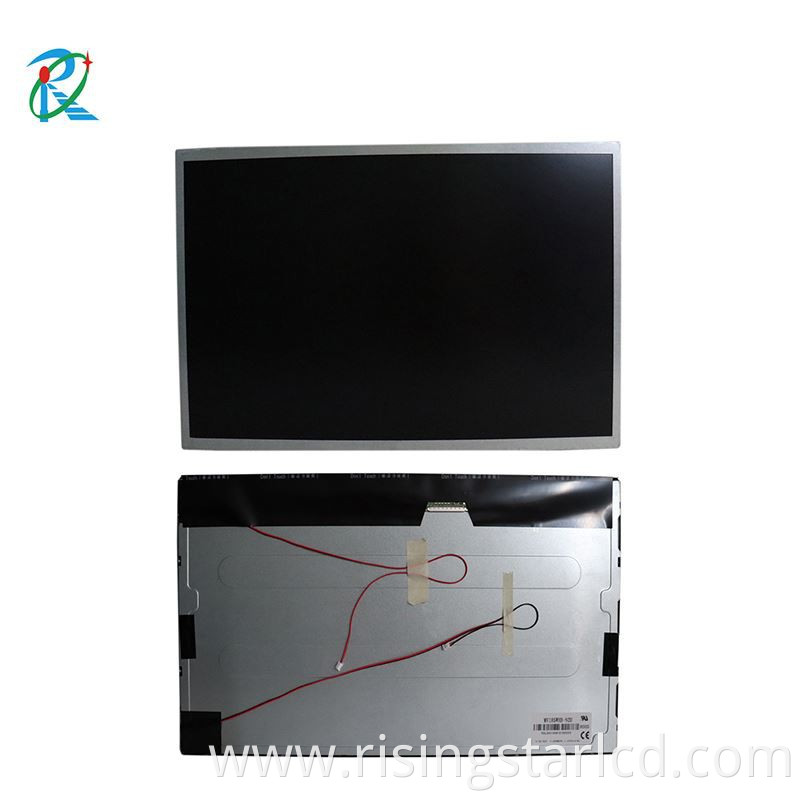

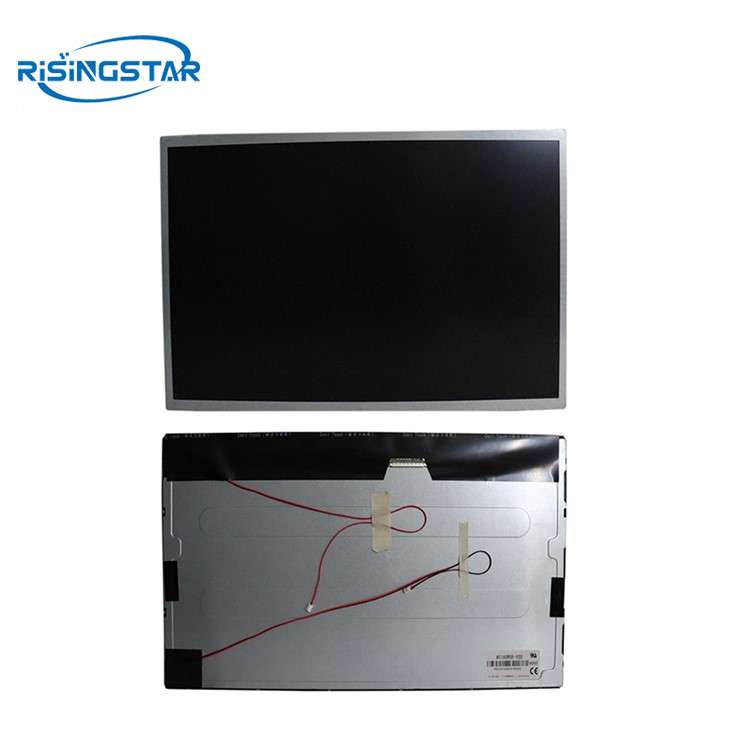

       1000 nits Lcd Module with driver board, the module size 13.3inch ,This module is a color active matrix LCD module incorporating Oxide TFT(Thin Film Transistor). It is compose of a color TFT-LCD Panel, driver ICs, a control circuit and power supply circuit.Resulotion 1920*1080.



13.3

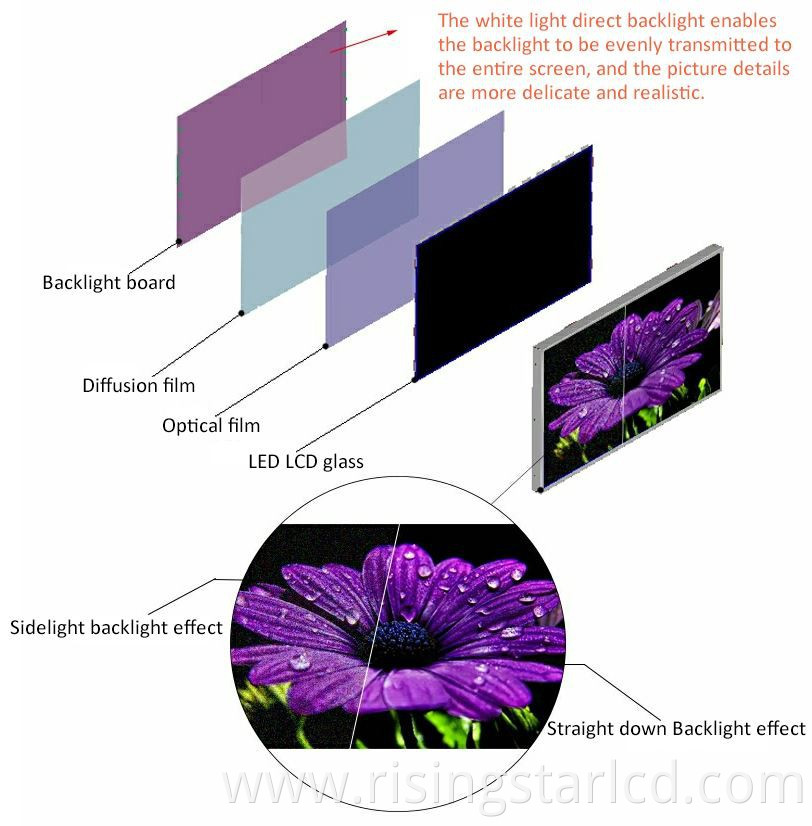

        In 1000nits lcd module,LED side-entry backlight , color filters for excellent color perfomance is incorporated to realize brighter and clearer picture, making this model optimum fro use in multi-media applications.



1000 nits lcd

         LED backlighting is both more energy efficient and provides a brighter image than traditional CCFL backlights;Due to the compact nature of LEDs and the modular structure of the patented design, the display is usually thinner;Risingstar uses a dedicated system for LED backlights, which is not only more energy efficient than traditional CCFL backlights, it is also quite bright.


lcd module 13.3 inch


Size 13.3inch
Panel item RS133NET-N10
Panel type a-Si TFT-LCD
Display mode  IPS,Normally black,transmissive display
Pixels 1920*1080
brightness 1000cd/m2
Constrast Ratio 800:1
Response Time 25ms
View angle 89/89/89/89
View area 295.07*166.68mm(H*V)
Dispaly area 293.472*165.078mm(H*V)
Outline Size 309.7*184.1*10.1mm(H*V*D)
Signal Type LVDS,30Pin
Working freqyency 60Hz
Working temperature 0- 70゚C
Storage Temperature -25- +65.0゚C
Display ratio 16:9
Display color 16.7m
Nominal Input Voltage  3.3V
Surface Treatment Haze
Weight 0.5kgs
