Min. Order:1 Piece/Pieces
Brand: RisingSTAR
Productivity: 500K
Place of Origin: SHENZHEN
Certificate: CE/ROSH/UL/SIO9001

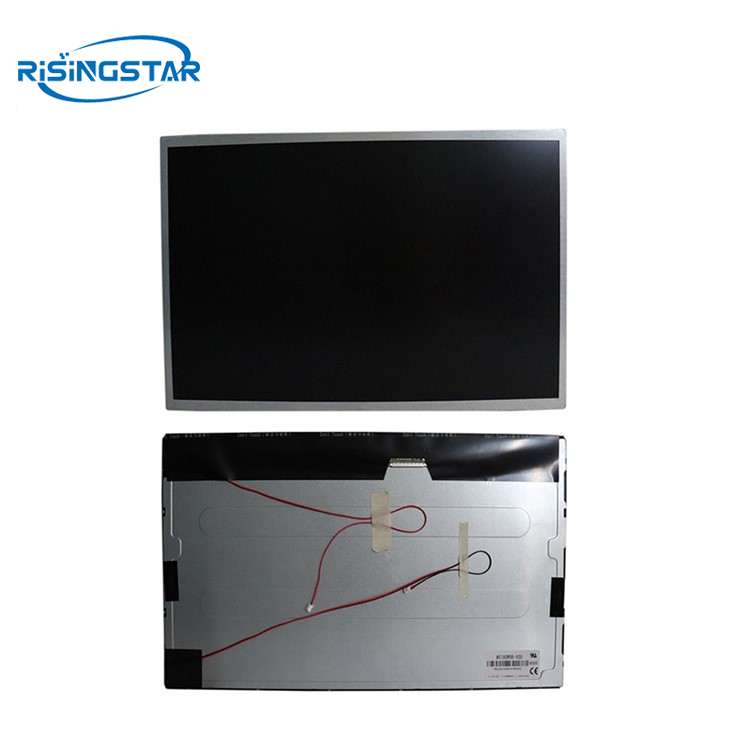

800 Nits Lcd Module in china,the module size 13.3inch ,This module is a color active matrix LCD module incorporating Oxide TFT(Thin Film Transistor). It is compose of a color TFT-LCD Panel, driver ICs, a control circuit and power supply circuit.Resulotion 1920*1080.
800nits lcd module with high resulotion ensures that every detail can be presented to the viewer, so that the information can be fully conveyed, and this visual effect can make the viewer impressive.
13.3 inch High Brightness Lcd module is widely used in vehicles, industrial control displays, electronic class cards, new energy charging piles, etc.
Application:
Size | 13.3inch |
Panel item | RS133NET-N10 |
Panel type | a-Si TFT-LCD |
Display mode | IPS,Normally black,transmissive display |
Pixels | 1920*1080 |
brightness | 1000cd/m2 |
Constrast Ratio | 800:1 |
Response Time | 25ms |
View angle | 89/89/89/89 |
View area | 295.07*166.68mm(H*V) |
Dispaly area | 293.472*165.078mm(H*V) |
Outline Size | 309.7*184.1*10.1mm(H*V*D) |
Signal Type | LVDS,30Pin |
Working freqyency | 60Hz |
Working temperature | 0- 70゚C |
Storage Temperature | -25- +65.0゚C |
Display ratio | 16:9 |
Display color | 16.7m |
Nominal Input Voltage | 3.3V |
Surface Treatment | Haze |
Weight | 0.5kgs |
