17 Inch 1000 Nits Sunlight Readable LCD Display
17 Inch 1000 Nits Sunlight Readable LCD Display
17 Inch 1000 Nits Sunlight Readable LCD Display
17 Inch 1000 Nits Sunlight Readable LCD Display

17 Inch 1000 Nits Sunlight Readable LCD Display

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

BrandRisingSTAR

Supply Ability & Additional Information

Productivity200K

Place of OriginSHENZHEN

CertificateCE/ROSH/UL/ISO9001

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

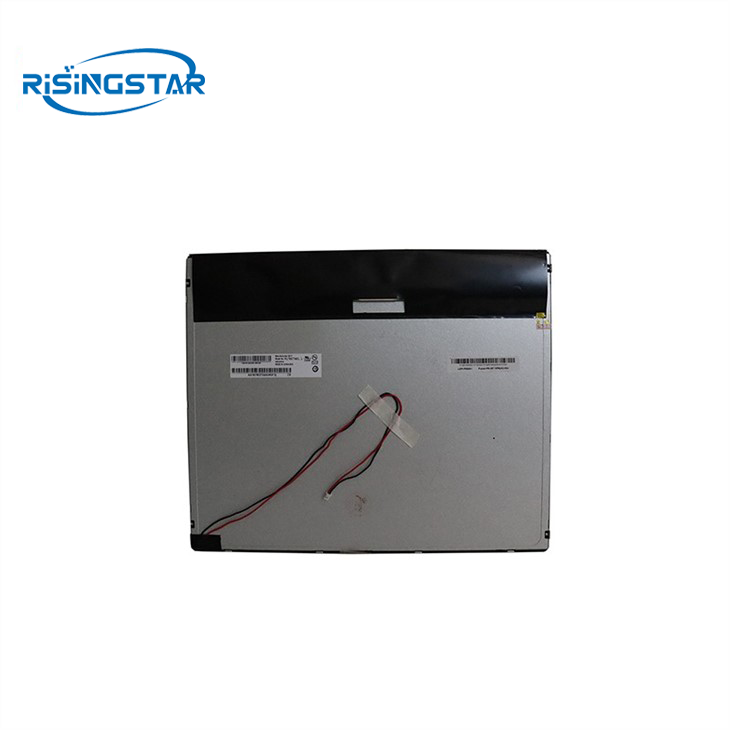

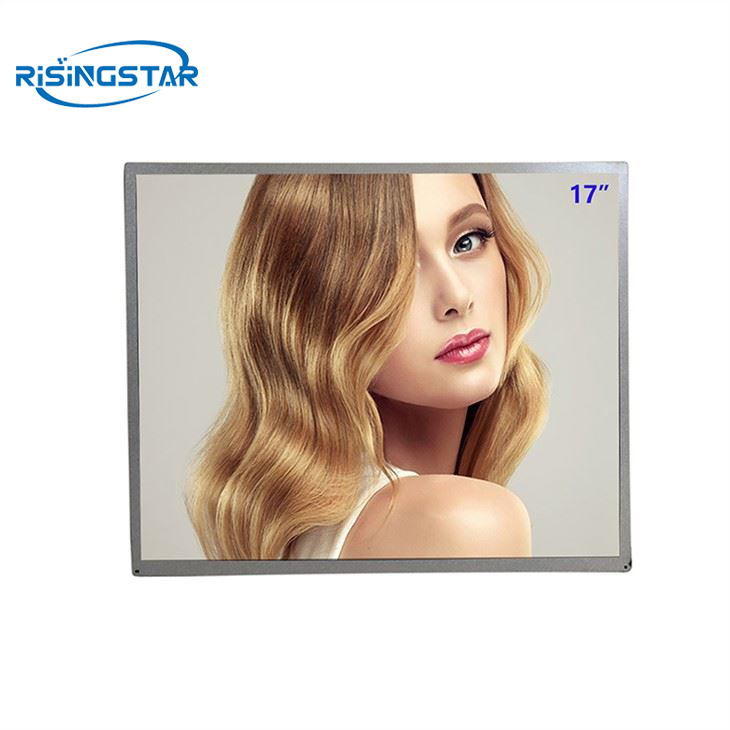

         Resingstar  17 inch square Lcd Display module ,Resulotion 1280*1024,the brightness Max 1500nits ,adopts A-SI TFT-LCD technology 17.0 inch Lcd Module products, it is equipped with WLED backlight, including LED driver backlight drive, no touch.  Let the LCD Panel can clearly readable at any time.

        17inch lcd display module resulotion is 1280(RGB)×1024 (SXGA), the aspect ratio is 5:4 (width: height), and the pixels are arranged in RGB vertical stripes.  The display area: 337.92×270.336 (width × height) mm, View area :341.6×274.0 (width × height) mm, and the outer size is 358.5×296.5 (width × height)×18(thickness) mm. The surface treatment is fog surface, Hard coating (3H),  For backlighting, this product uses a WLED side entry light source (top) with a life of 50K hours.



17 inch lcd module

       17inch lcd display module feature :

      -- Square lcd panel,Aspect ratio:5:4

       --Sunlight readable

       --High brightness by 1500nits

       --Self-developed LED backlight technology

       --24/7 working time

       --Low power consumption














Model Name

RS170NET-N05

Description

17" TFT LCD,500nits LED backlight

size

17"

Display area (mm)

337.92(H) x 270.336(V)

Brightness

350-1500cd/m²

Resolution

1280*1024

Aspect ratio

5:4

Contrast ratio

1000:1

Viewing angle

85/85/80/80

Color saturation (NTSC)

72%

Display colors

16.7M

Video interface

LVDS(2 ch, 8-bit) ,30pin

Dimensions (mm)

358.5*295.5*18

Weight (Net)

1.3kg

Customized

Brightness, Color, Size
