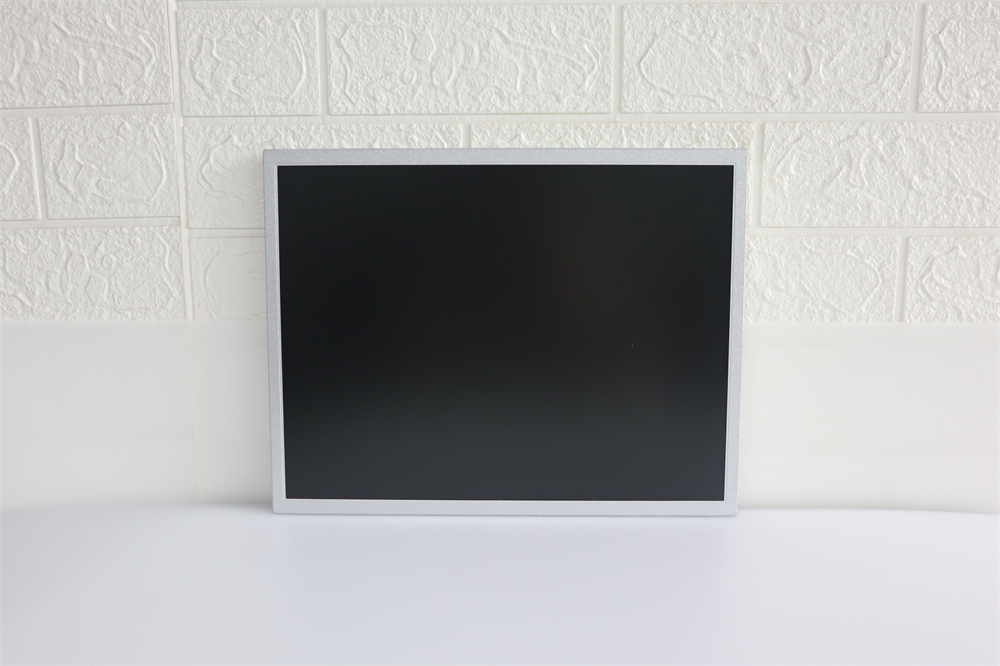

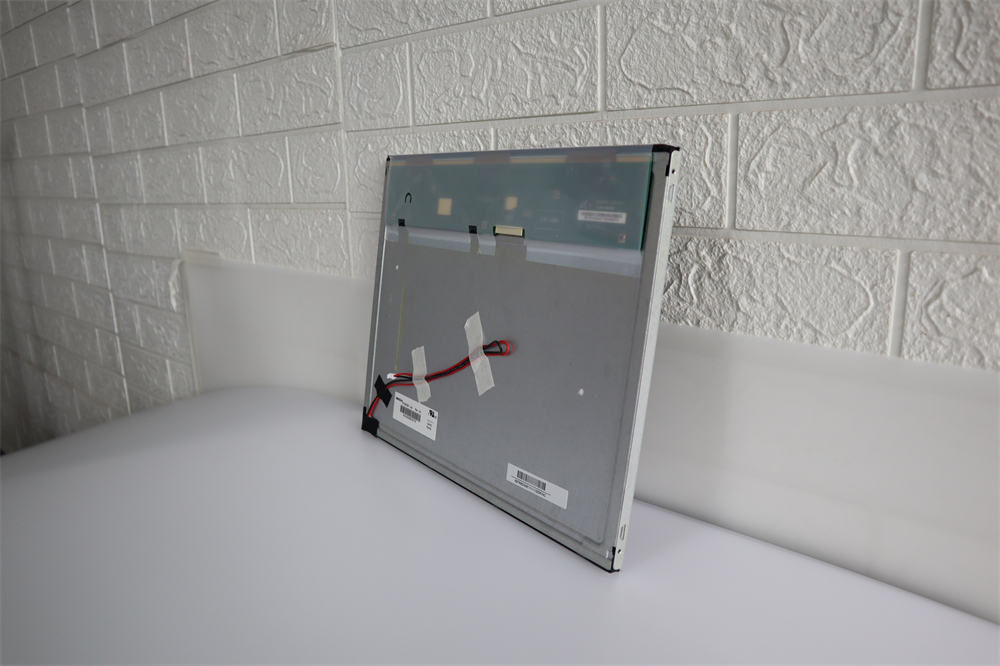

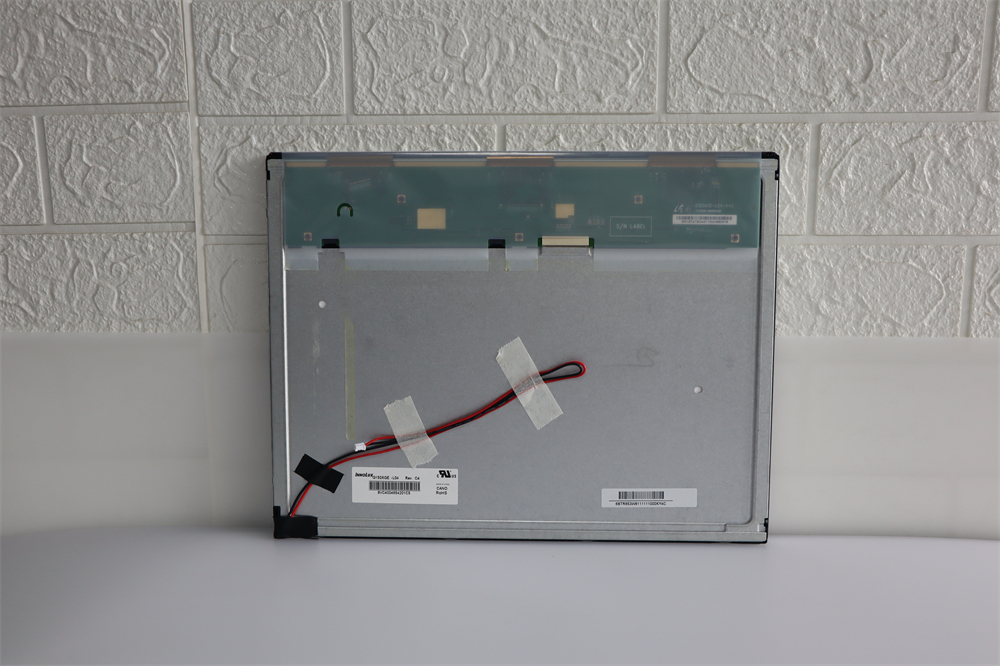

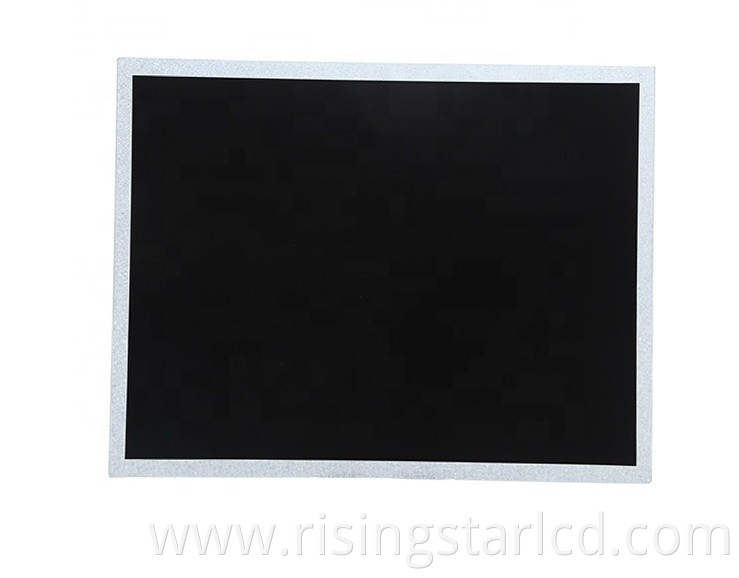

15" High Brightness Lcd Panel 1500cd/m2
1 Introduction
It is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCD Panel, a backlight system, column driver and row driver circuit. This TFT LCD has a 15.0-inch diagonally measured active display area with resolution (1024 horizontal by 768 vertical pixels array).
2 Features
15.0” TFT LCD Panel
LED Backlight System
Supported 1024x768 pixels resolution
Compatible with RoHS standard
| Size | 15inch |
| Resolution | 1024*768 |
| Pixel Pitch (H x V) | 0.297 x 0.297mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | Normally White |
| Brightness(nits) | 1000-1500 |
| Contrast Ratio | 800:1 |
| Input Voltage | 3.3V |
| View Angle(L/R/U/D) | 80/80/80/80 |
| Response Time(ms) | 16ms |
| Optical mode | TN |
| Operating Temperature | -20-70° |
| Storage Temperature | -30-80° |
| Interface | LVDS/8-bit |
| Lamp type | LED |
| LED Life Time(Hrs) | 30,000Hours |
| Active Area(mm,H*V) | 304.13*228.10 |
| Outline Dimension | 326.50*253.50*12.00 |
| Weight | 960g |
| Support Color | 16.2M |
| Optimum Viewing Direction | 6 o’clock |
| Surface Treatment | Anti-glare, Hard-Coating (3H) |
| Authentication | ROSH/UL |
| Size | 15inch |
| Panel item | RS150NET-N15 |
| Panel type | a-Si TFT-LCD |
| Display mode | IPS,Normally black，transmissive display |
| Pixels | 1024*768 |
| brightness | 1500cd/m2 |
| Constrast Ratio | 800：1 |
| View angle | 80/80/80/80 |
| View area | 313.55*2378.25mm(H*V) |
| Dispaly area | 304.128*228.096mm(H*V) |
| Outline Size | 326.5*253.5*10mm(H*V*D) |
| Signal Type | LVDS |
| Working freqyency | 60Hz |
| Working temperature | 0- 65.0ﾟC |
| Storage Temperature | -20- +65.0ﾟC |
| Backlight Type | WLED |
| Display color | 16.7m |
| Surface Treatment | Haze ,Hard coating(3H) |
| Drive-screen Voltage | 3.3V |
| Backlight Power Consumption | 13w |
| Weight | 1kgs |
