15.4 Inch High Brightness TFT LCD Panel
15.4 Inch High Brightness TFT LCD Panel
15.4 Inch High Brightness TFT LCD Panel
15.4 Inch High Brightness TFT LCD Panel
15.4 Inch High Brightness TFT LCD Panel

15.4 Inch High Brightness TFT LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

BrandRisingstar

Supply Ability & Additional Information

Productivity189k

Place of OriginSHENZHEN

CertificateISO9001/CE/ROSH/UL/FCC

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

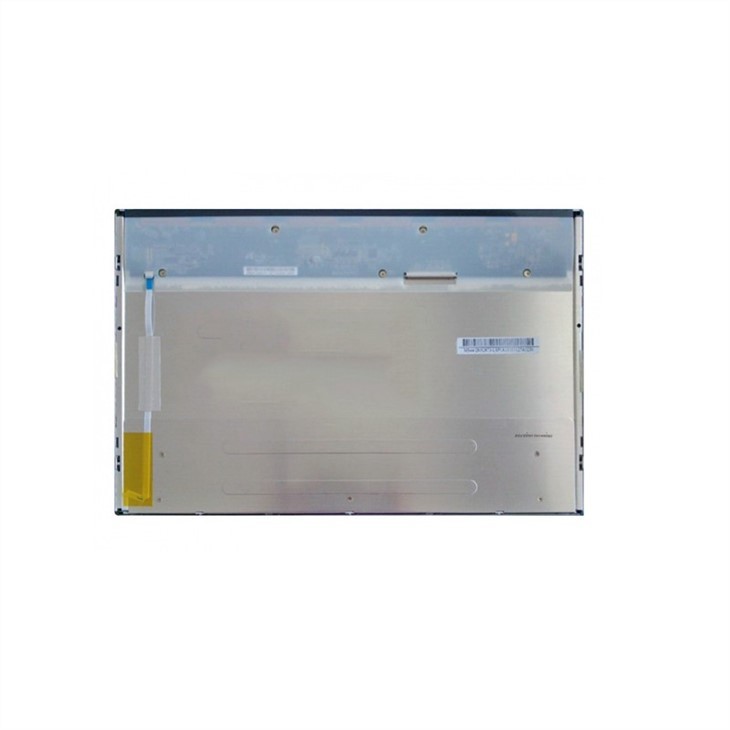

     15.4" High Brightness TFT LCD Panel ,This LCD Panel high brightness by 1000 nits,sunshine readable. This  High Brightness Lcd module with Chimei Innolux original panel.With side-in LED backlight for uniform brightness.

      Each Risingstar outdoor's high light screen is individually color calibrated to the D65 (6500K) CIE color standard;This not only produces a true, natural white, but the color of all screens will be uniform.With side-entry lighting design,The high brightness 500-1000 nits can be choose,Brightness uniformity more than 90%.

      15.4" high brightness TFT lcd panel,It is equipped with WLED backlight, backlight drive with LED driver, The operating temperature: -30 ~ 80°C, the storage temperature : -30 ~ 80°C, and the vibration resistance is 1.5g (14.7m /s²).This model is wide temperature panel, backlight life 50K hours, signal port LVDS,30 Pin.

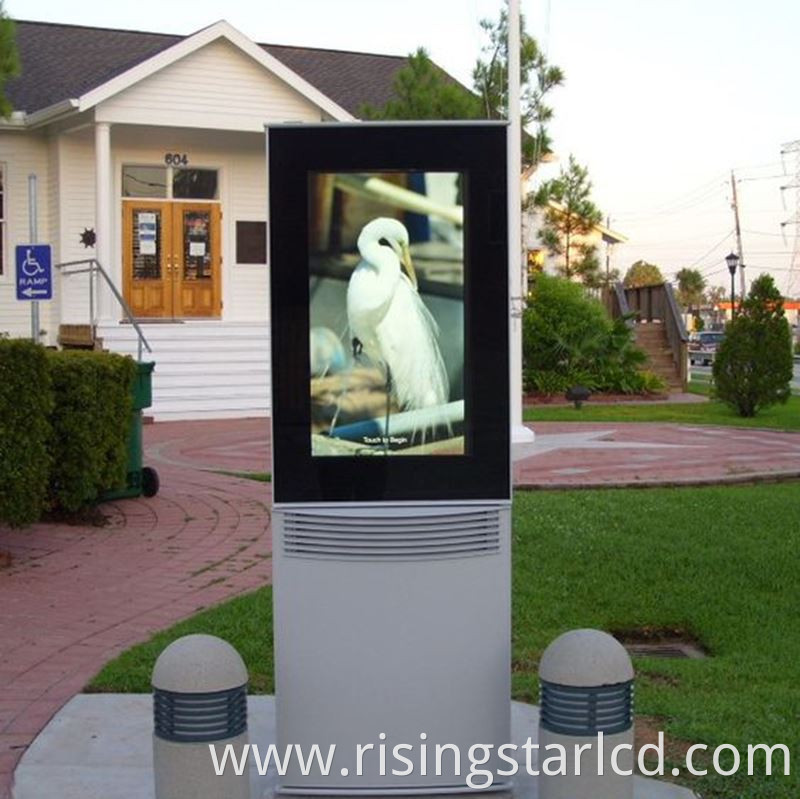

      15.4" high brightness is widely used in industrial control displays, electronic class cards, new energy charging piles, express cabinets, outdoor handheld control panels, car custom screens,, etc.

15.4 TFT lcd panel

Product size15.4 inchTypea-Si TFT-LCD
Pixel Format1280(RGB)×800[WUXGA] 98PPIConfigurationRGB Vertical Stripe
Active Area334.5(H)×210.3(V) mmOutline Dim.352(H)×230(V) ×9.5(D) mm
Viewing Angle80/80/70/70 (Min.)(CR≥10)TreatmentGlare , Hard coating (3H)
Luminance1000 cd/m² (Typ.)Contrast Ratio700:1 (Typ.) (TM)
View DirectionSymmetryResponse Time5/11(Typ.)(Tr/Td)
Support Color16.2M 56% NTSCLight SourceWLED , 50K hours , With LED Driver
Weight880gDesigned ForOutdoor High Brightness Automotive Display
Frequency60HzTouch PanelWithout
Interface TypeLVDS(1 ch,6/8-bit) , 30pins

Power Supply3.3V (Typ.)

EnvironmentOperating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
