Shenzhen Risingstar Outdoor High Light LCD Co., Lt
Min. Order:1 Piece/Pieces
Brand: Risingstar
Productivity: 135K
Place of Origin: SHENZHEN
Certificate: CE/ROSH/UL/ISO9001

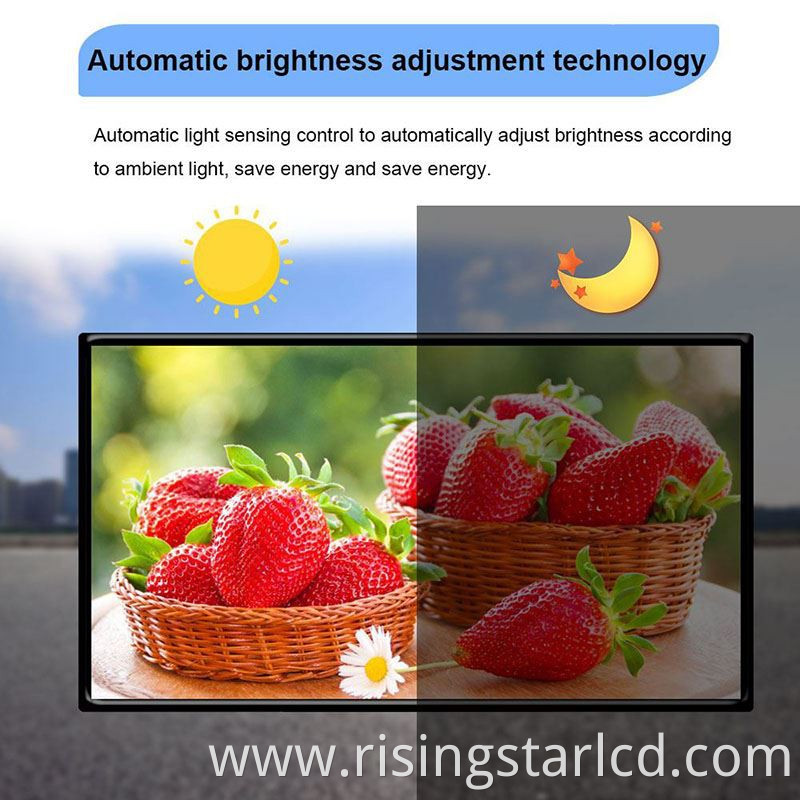

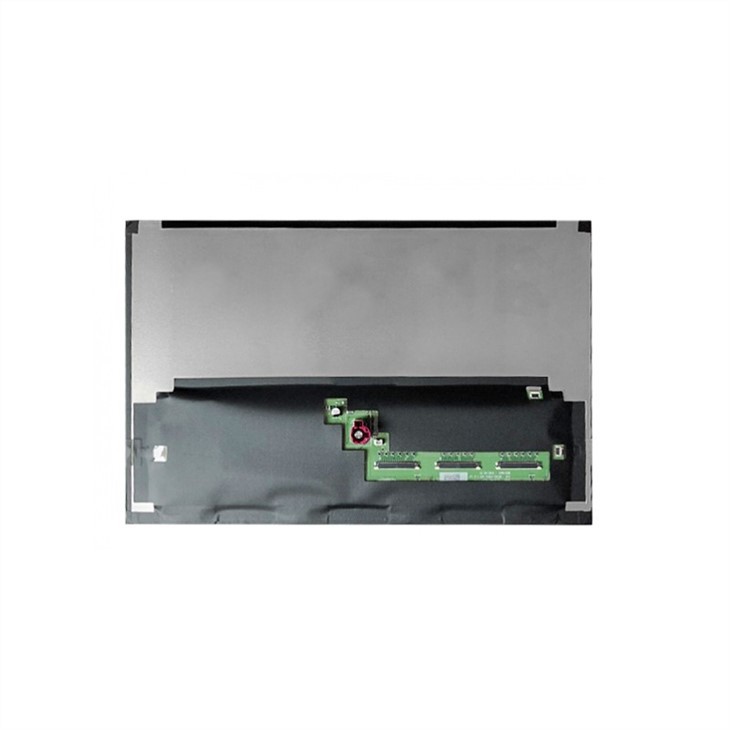

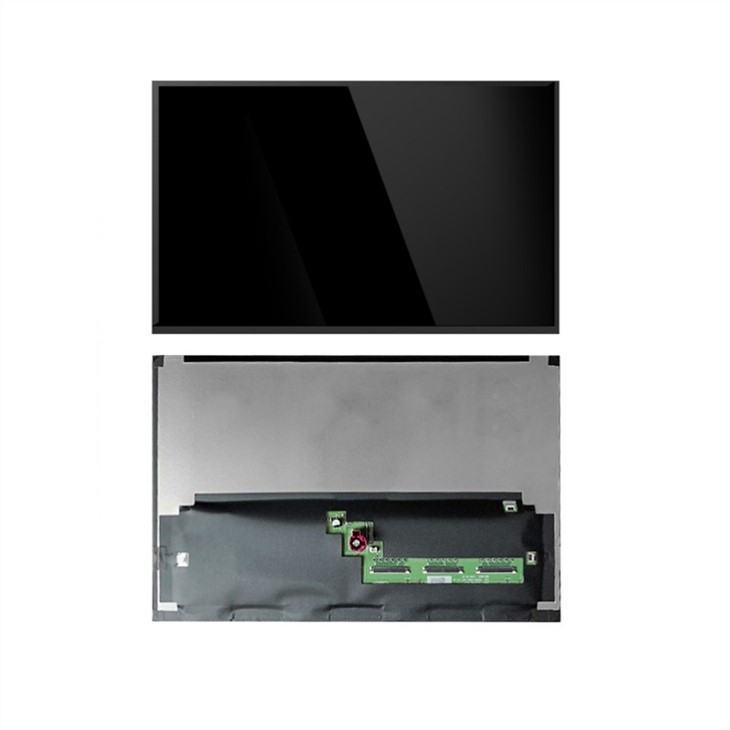

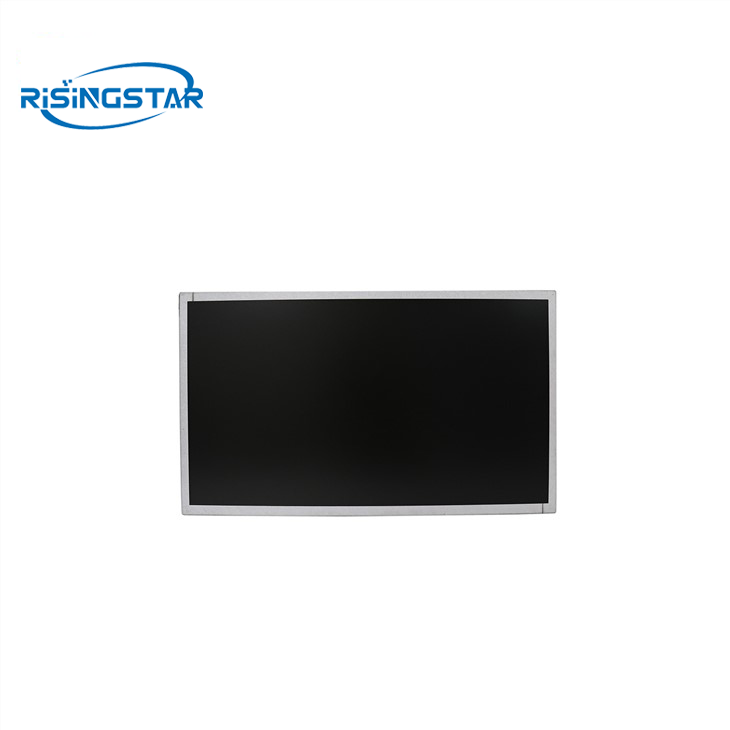

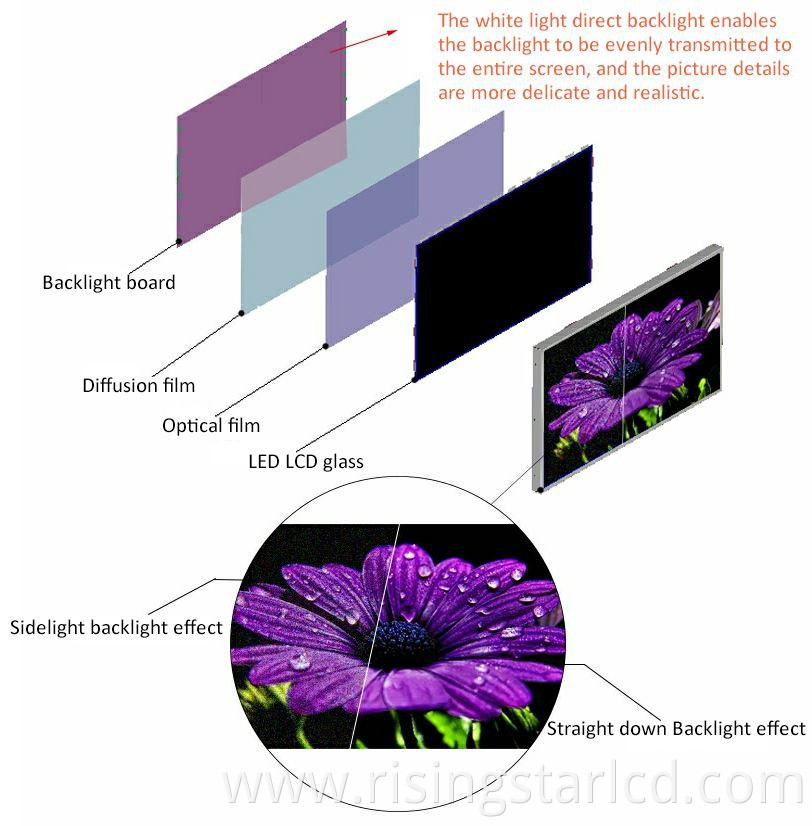

15.4inch 1000 nits outdoor tft LCD screen from shenzhen risingstar .This 15.4 "Lcd Module with A-SI TFT-LCD technology, equipped with WLED backlight, including LED driver backlight drive.With light sensor,the brightness can be adjust according the nearby light sources change.
High Brightness Lcd screens need long hours of work, and the diversity of the environment and temperature changes are large. Therefore, high contrast, durability and stability have become an indispensable feature of industrial LCD screens. 15.4 inch TFT LCD Panel meet this needs.
The ordinary brightness of the LCD panel brightness can only reach 350nits ,but the 15.4inch 1000 nits outdoor tft lcd screen high brightness can be achieve 1000 cd / m2, 1000nits high brightness screen is widely used in express cabinets, electronic bus stop advertising screen, outdoor read the newspaper column, the scenic area publicity column, etc.
| Product size | 15.4" | Type | a-Si TFT-LCD |
| Pixel Format | 1920(RGB)×1200[WUXGA] 147PPI | Configuration | RGB Vertical Stripe |
| Active Area | 330.62(H)×206.64(V) mm | Outline Dim. | 341.2(H)×219.14(V) ×13(D) mm |
| Viewing Angle | 80/80/70/70 (Min.)(CR≥10) | Treatment | Hard coating (3H) |
| Luminance | 800-1000 cd/m² (Typ.) | Contrast Ratio | 1450:1 (Typ.) (TM) |
| View Direction | Symmetry | Response Time | 10/8(Typ.)(Tr/Td) |
| Support Color | 16.2M 56% NTSC | Light Source | WLED ,20K hours , With LED Driver |
| Weight | 830/850g(Typ./Max) | Designed For | Outdoor High Brightness Automotive Display |
| Frequency | 60Hz | Touch Panel | Without |
| Interface Type | LVDS(1 ch,2 port) , 6pins | ||
| Power Supply | 12.0V (Typ.) | ||
| Environment | Operating Temperature: -40 ~ 95 °C ; Storage Temperature: -30 ~ 85 °C |
