Shenzhen Risingstar Outdoor High Light LCD Co., Lt
Brand: Risinglcd
Productivity: 1250k
Place of Origin: SHENZHEN
Certificate: CE/ROSH/UL/ISO9001

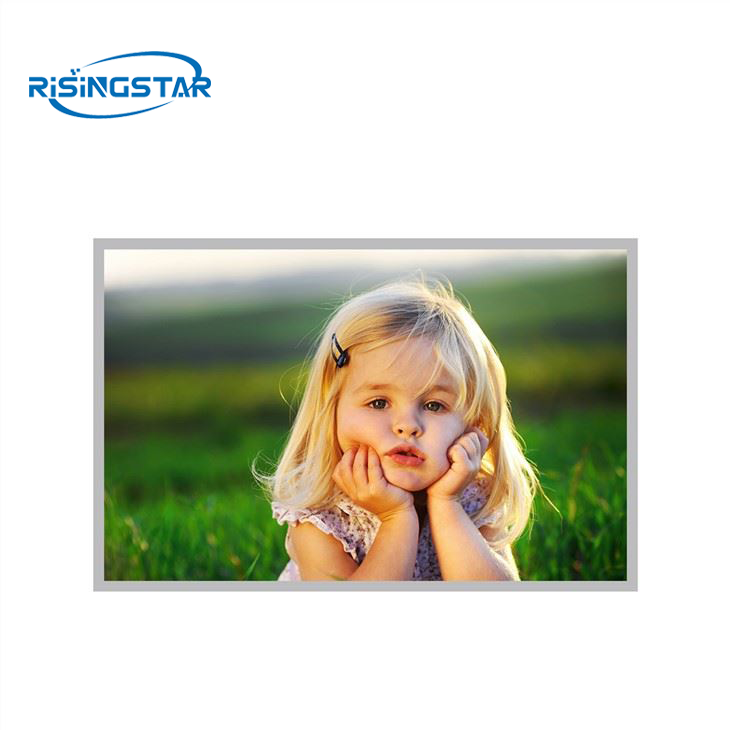

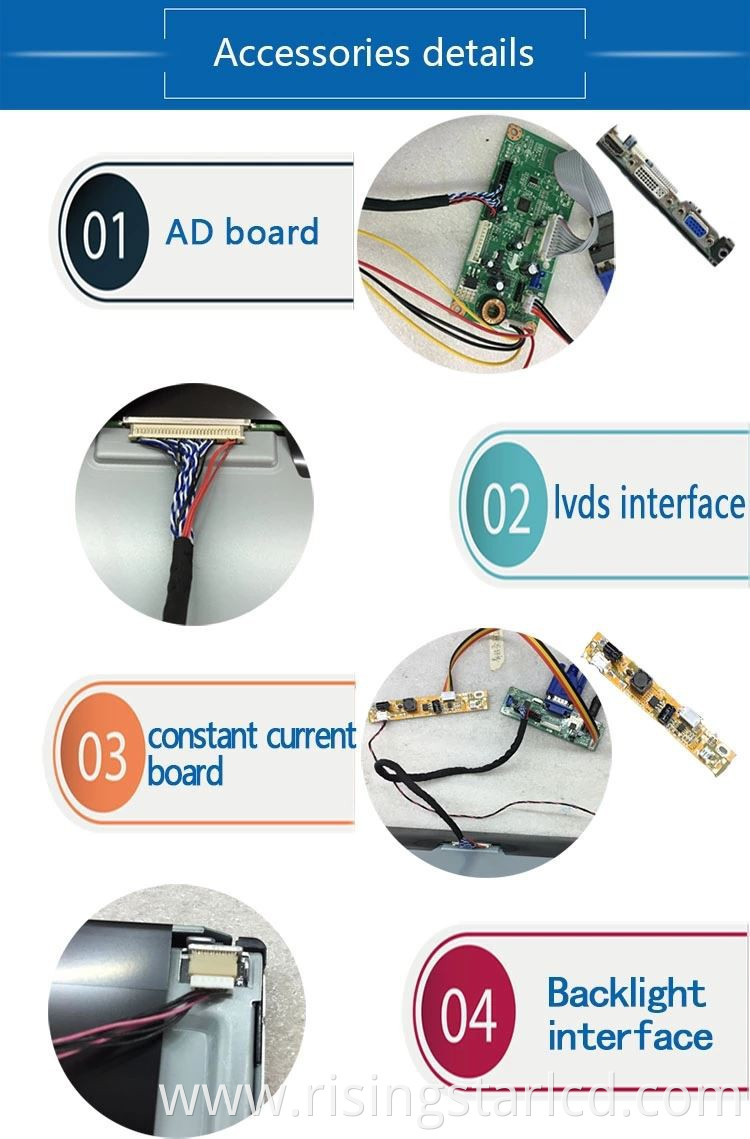

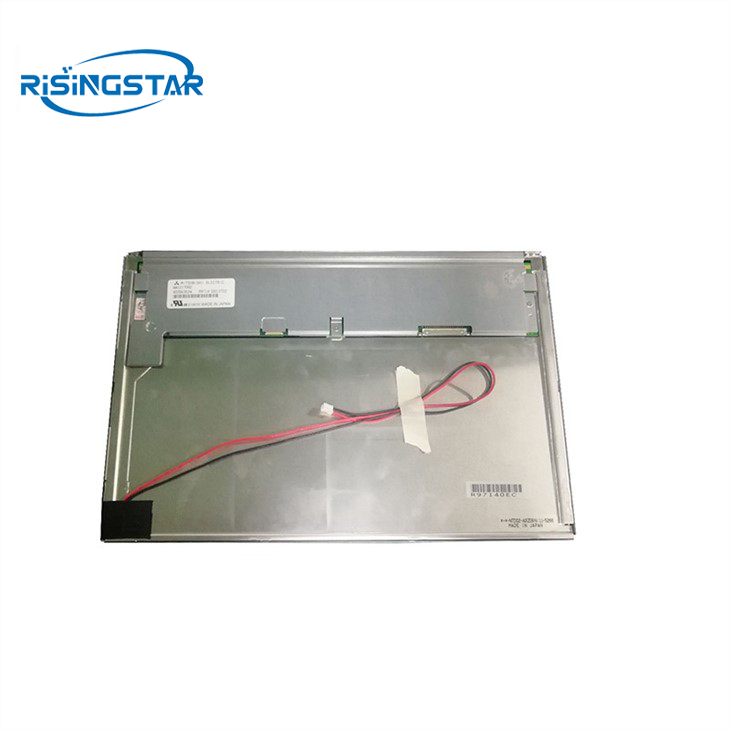

Shenzhen risingstar 10.1 inch 1000 nit TFT LCD Panel,Original RisingStar/BOE/Innolux Lcd Module,The mainboard link with the LCD panel is connected with the panel interface through the panel row. Different LCD panels use different interface forms. Risingstar 10.1 inch 1000 nits TFT lcd panel is mainly LVDS interface.
Paremeter
| Size | 10.1inch |
| Panel item | RS101NET-N10 |
| Panel type | a-Si TFT-LCD |
| Display mode | IPS,Normally black，transmissive display |
| Pixels | 1280*800 |
| brightness | 350-1000cd/m2 |
| Constrast Ratio | 800:1 |
| Response Time | 14/11ms |
| View angle | 85/85/85/85 |
| View area | 218.96*137.6mm(H*V) |
| Dispaly area | 218.96*137.6mm(H*V) |
| Outline Size | 230.7*152.55*7mm(H*V*D) |
| Signal Type | LVDS |
| Working freqyency | 60Hz |
| Working temperature | -20~70ﾟC |
| Storage Temperature | -25~70ﾟC |
| Display ratio | 16:9 |
| Display color | 16.7m |
| Backlight Voltage | 3.3V |
| Backlight Power Consumption | 6.18w |
| Surface Treatment | Haze |
| Weight | 0.375kgs |
