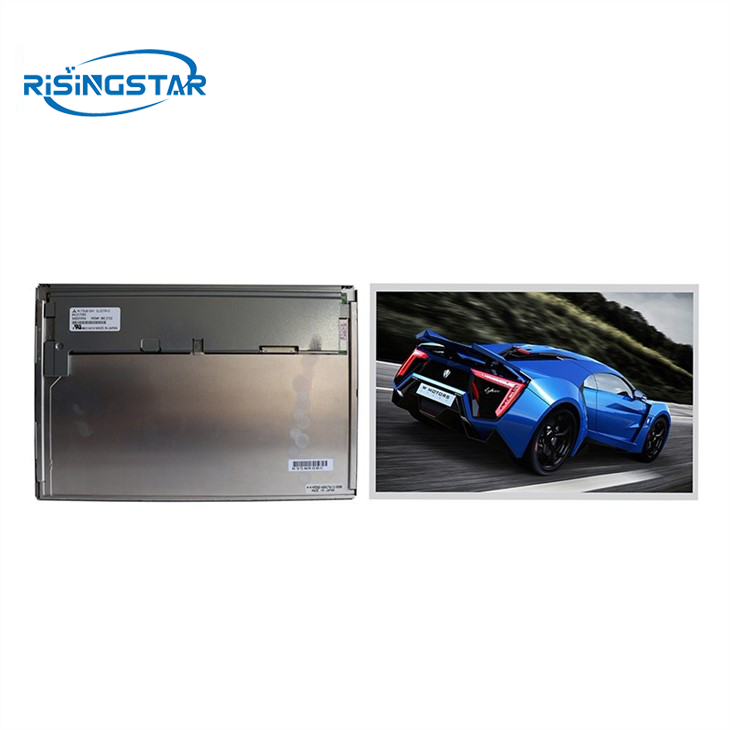

12.1inch 1500Nits High Brightness TFT LCD Panel
12.1inch 1500Nits High Brightness TFT LCD Panel
12.1inch 1500Nits High Brightness TFT LCD Panel
12.1inch 1500Nits High Brightness TFT LCD Panel
12.1inch 1500Nits High Brightness TFT LCD Panel

12.1inch 1500Nits High Brightness TFT LCD Panel

Payment Type:D/P,T/T,D/A,Paypal

Incoterm:EXW,CIF,CFR,FOB

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Product Description
Product Attributes

BrandRisinglcd

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Payment TypeD/P,T/T,D/A,Paypal

IncotermEXW,CIF,CFR,FOB

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction


Size 12.1inch
Panel item RS121ENT-NE15
Panel type a-Si TFT-LCD
Display mode  IPS,Normally black,transmissive display
Pixels 1280*800
brightness 1500cd/m2
Constrast Ratio 1000:1
Response Time 25ms
View angle 89/89/89/89
View area 264.22*168.12mm(H*V)
Dispaly area 261.12163.2mm(H*V)
Outline Size 278*184*9.94mm(H*V*D)
Signal Type LVDS,30 pin
Working freqyency 60Hz
Working temperature -30~85℃
Storage Temperature -30~85℃
Display ratio 16:10
Display color 16.7m
Backlight Voltage 3.3V
Surface Treatment Haze
Weight 0.39kgs


12.1 inch screen

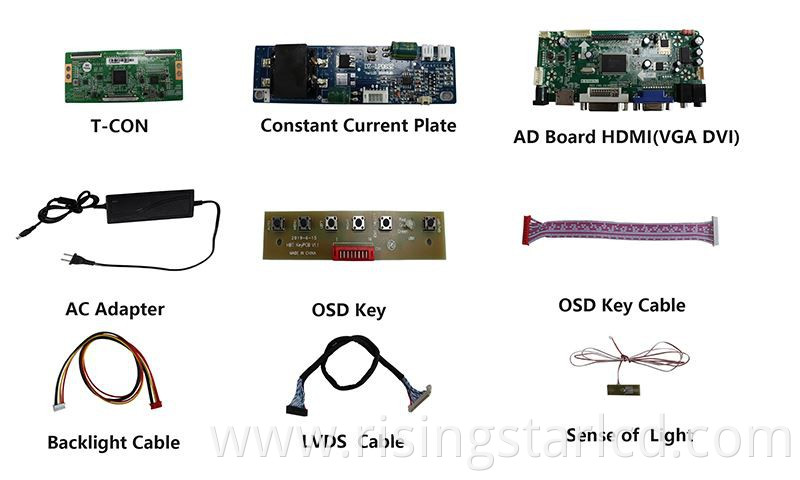

     12.1 inch high brightness Touch Screen use industrial LCD Panel,LCD screen high temperature can be reach 85℃, Risingstar 12.1 inch touch screen is your best choose for outdoor /semi outdoor used.  The acceaaories have mainboard, T-CON,constant current plate ,backlight cables,lvds cables and light sensor cables. 12.1 inch Lcd Module with high quality and low price

high brightness screen
