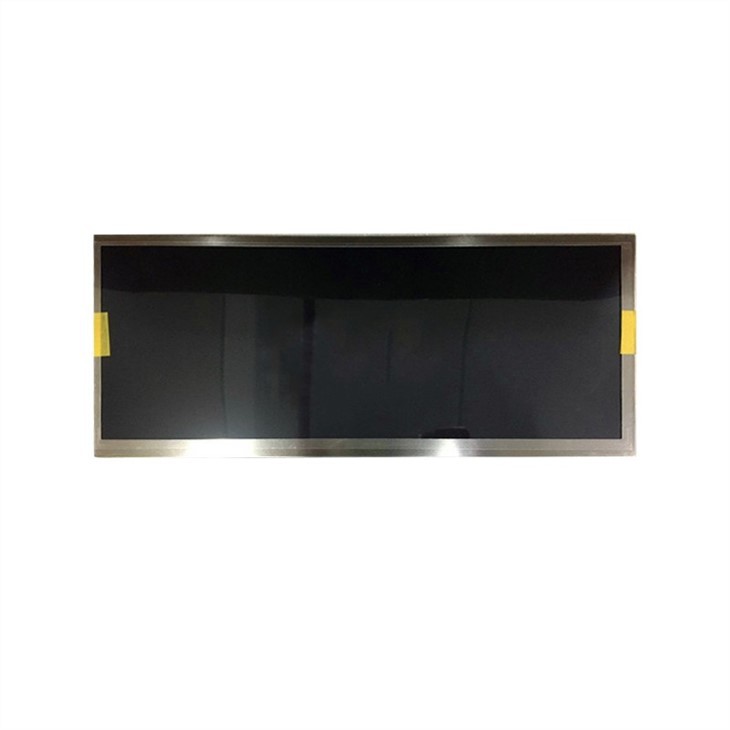

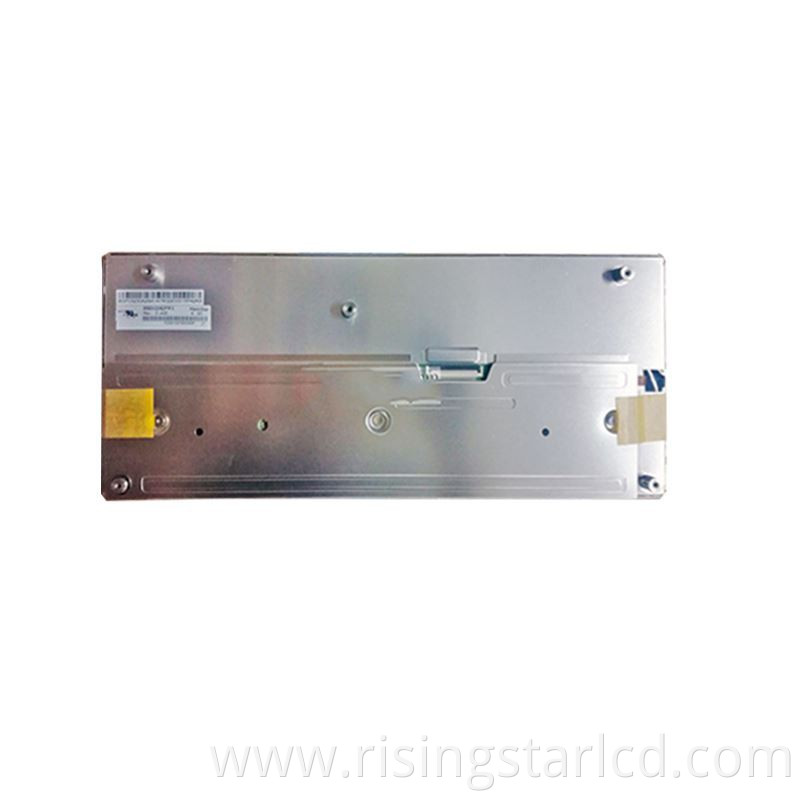

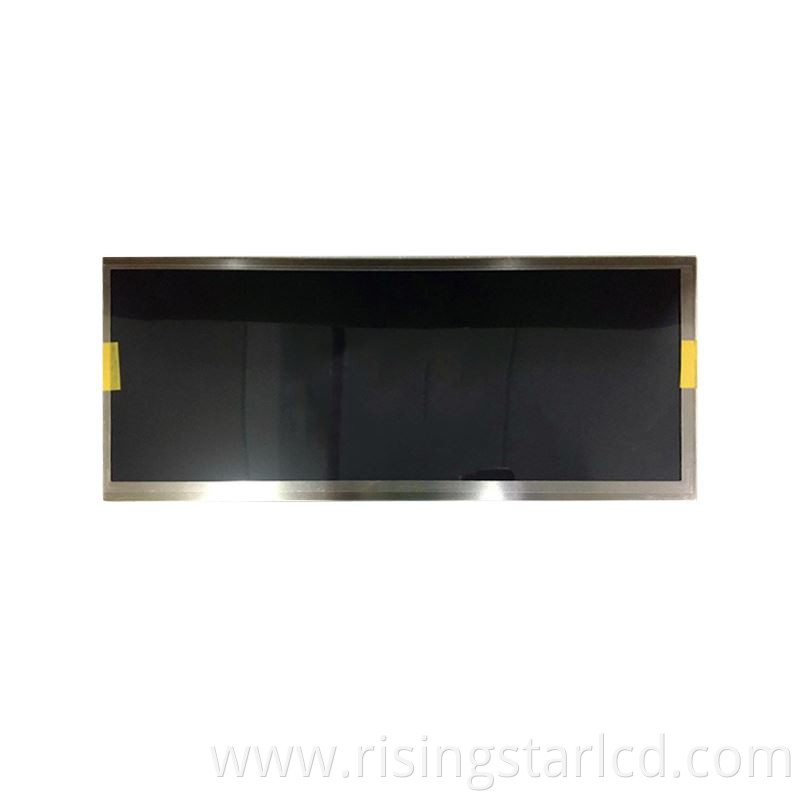

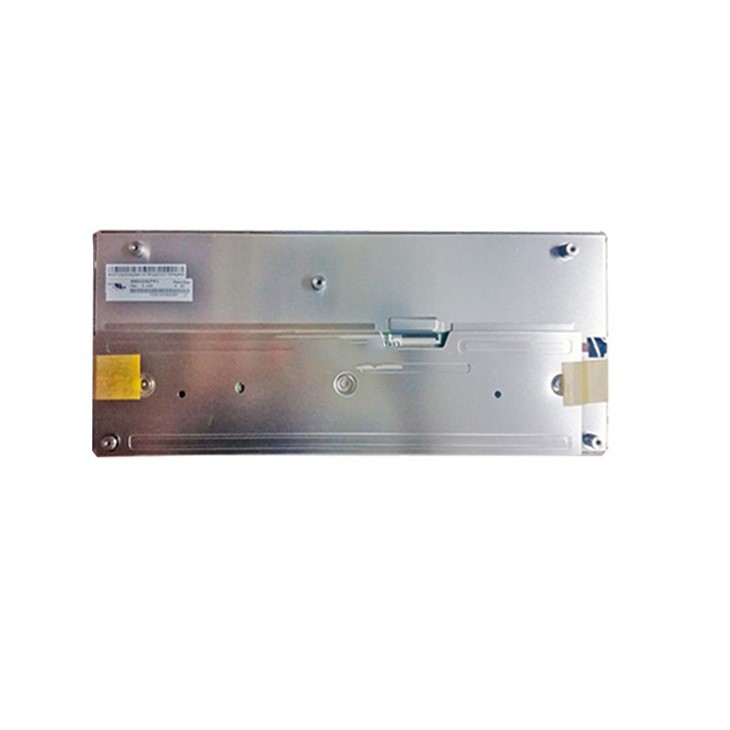

12.3 Inch 1000 Nits Sunlight Readable LCD Panel
12.3 Inch 1000 Nits Sunlight Readable LCD Panel
12.3 Inch 1000 Nits Sunlight Readable LCD Panel
12.3 Inch 1000 Nits Sunlight Readable LCD Panel
12.3 Inch 1000 Nits Sunlight Readable LCD Panel
12.3 Inch 1000 Nits Sunlight Readable LCD Panel

12.3 Inch 1000 Nits Sunlight Readable LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

BrandRisinglcd

Supply Ability & Additional Information

Productivity12500

Place of OriginSHENZHEN

CertificateCE/ROSH/ISO9001/UL

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

    Shenzhen risingstar 1000 nit LCD Panel 12.3inch LCD screen.With LVDS interface high brightness 1000 nits,Sunshine readable. This style lcd panel is industrial lcd panel ,working temperature -30~85℃.The vibration resistance of this lcd panel is 2.9G(28.4m/s2), which is mostly used for car /bus display.


1000 nit lcd panel

1000 lcd panel

Parameter

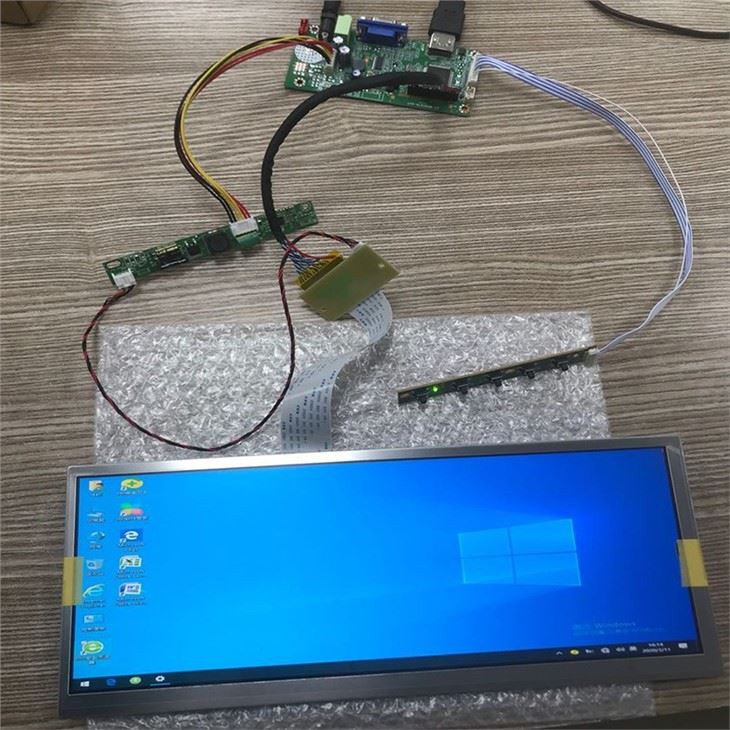

LVDS (2 ch, 8-bit) , 50 pins
Size 12.3inch
Panel item RS123NET-N10
Panel type a-Si TFT-LCD
Display mode  Normally black
Pixels 1920*720,    167PPI
brightness 1000cd/m2
Constrast Ratio 1000:1
View angle 85/85/85/85
Dispaly area 292.032*109.512mm(H*V)
Outline Size 308.1*130.7.6mm(H*V*D)
Signal Type LED
Working freqyency 60Hz
Working temperature -30~85℃
Storage Temperature -30~85℃
Display ratio 8:3
Display color 16.7m
Supply Voltage 3.3V
Single interface  LVDS (2ch,8-bit),50 pin
Weight 0.52kgs
