21.5 inch DLED highlight LCD screen,high brightness can be reach 2500 nits for outdoor used.New style 21.5 inch DLED lcd screen with aluminum alloy structure,more heat dissipation than the other structure. Sunshine readable lcd screen,With light sensor it can be adjust brightness between day and night. 21.5 inch highlight lcd screen with LVDS interface.30pin.The drive screen voltage is 5.0V (Typ.)
Feature:
1. High brightness by 2500 nits
2. Aluminum alloy structure design;
3. Matrix LED backlight design;
4, Automatically dimming backlight driver motherboard.
5.Higher heat dissipation and low power consumption
| 21.5 inch DLED Lcd Module Product Parameter | |||
| | specification | Unit | Remarks |
| size | 21.5" | | |
| Brightness | 2000 | nits | |
| Active Area | 476.064(H)*267.786(V) | mm | |

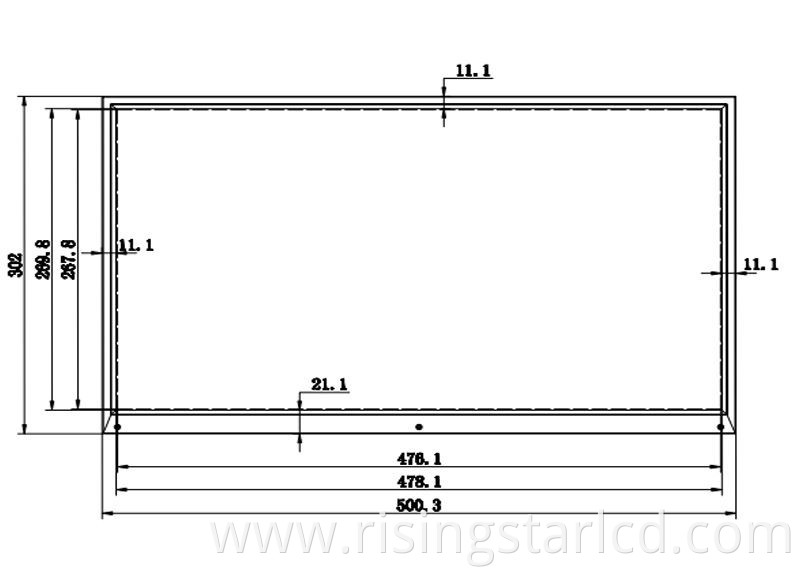

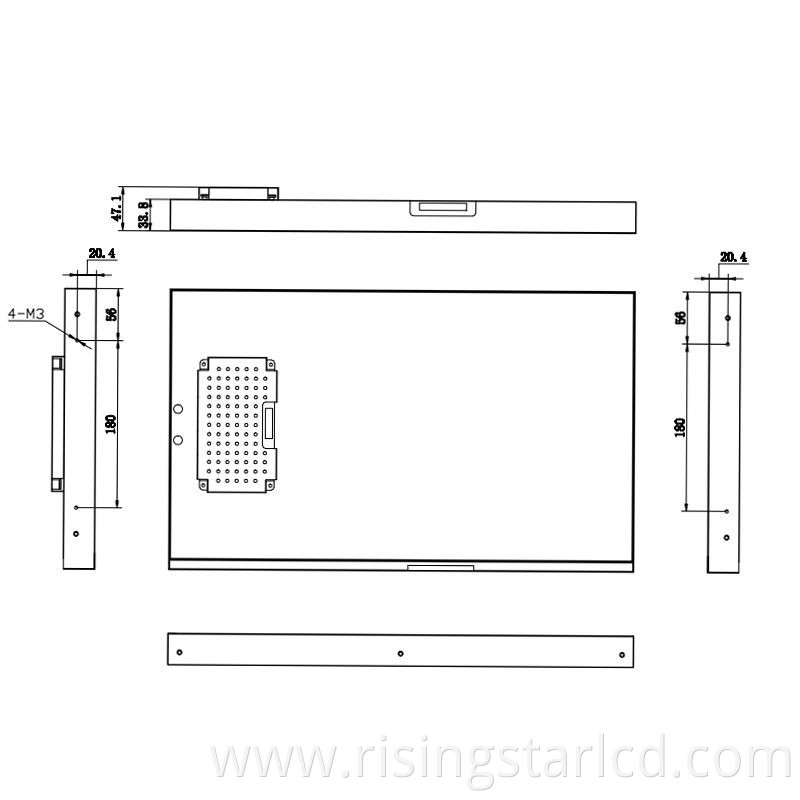

| Dimensional outline | 500.3(H)*302(V)*33.8(D) | mm | detail refer to drawing |
| Number of pixels | 1920*1080 | | |
| Type | TFT-LCD | | |
| Pixels Pitch | 0.24795×0.24795 | mm | |
| Display color | 16.7M | colors | |
| display mode | Normally black | | |
| Constrast Ratio | 1000:1 | | |
| View Angle | 89/89/89/89(Typ)(CR≥10) | | |
| Weight | 2.8 | kgs | Estimated |
| Interface type | LVDS (2ch,8-bit),30 pin | | |
| Surface treatment | Haze 25%,3H | | |
| Backlight | DLED | | |
| Working temperature | 0℃ -- 50℃ | | |
