Shenzhen Risingstar Outdoor High Light LCD Co., Lt
Model No.: G170ETN02.1

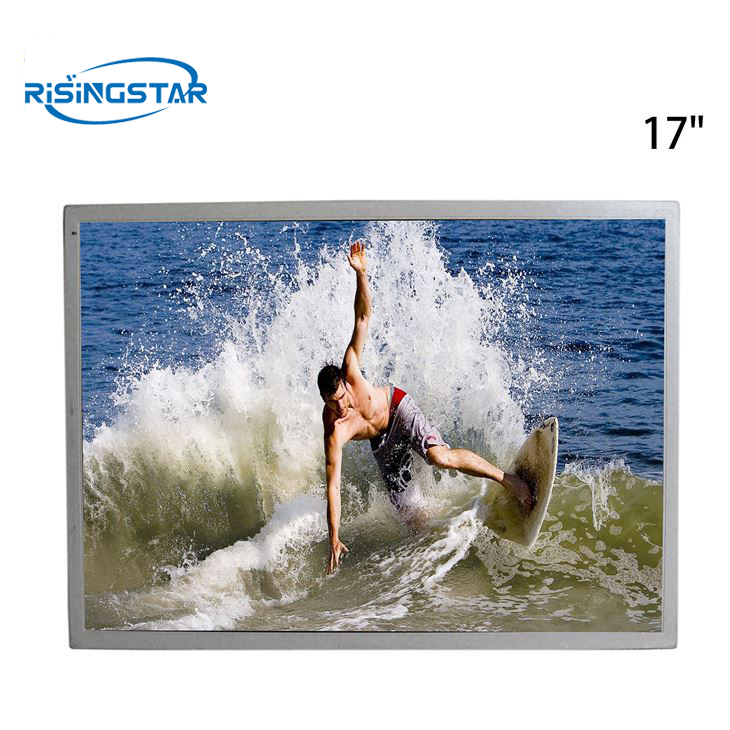

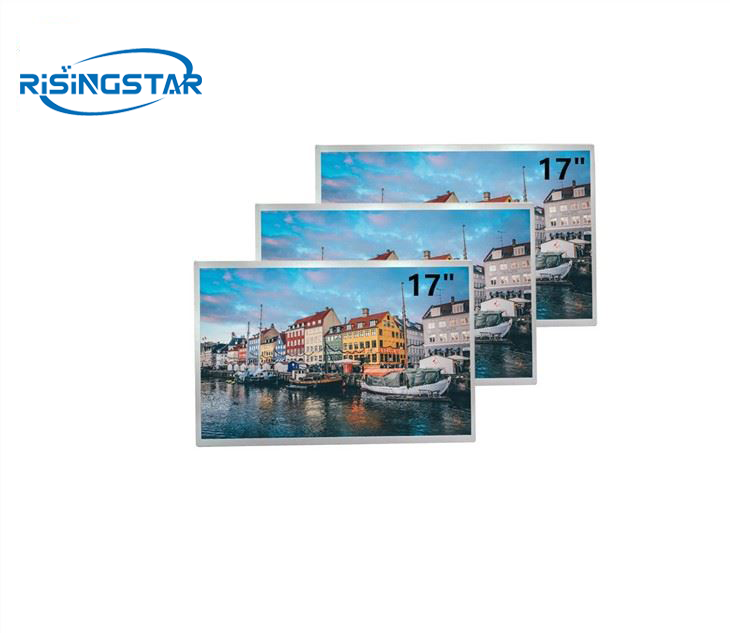

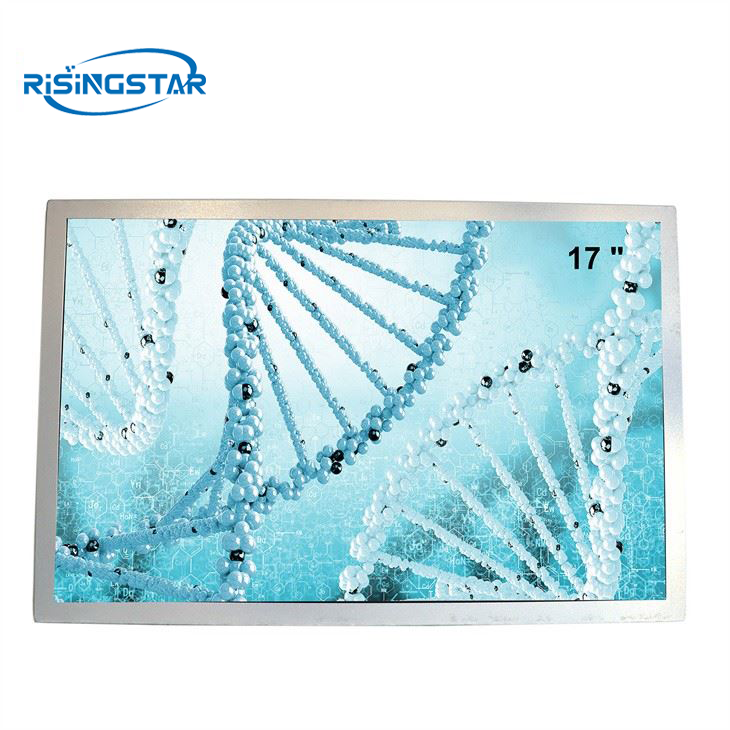

17.0" RisingStar G170ETN02.1 TFT Lcd Module
Not afraid of the sun, patent structure ultra-thin design, black quality technology.
Not afraid of the sun clearly show.
NTSC 72% color gamut coverage, restore super rich image color.
500-5000NIT brightness customization, precise control of the brightness of each area.
High temperature liquid crystal ensures superior display quality even in extreme weather conditions.
| brand | RisingStar | Model name | G170ETN02.1 |
| size | 17.0" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1280(RGB)×1024 [SXGA] 96PPI | Pixel configuration | RGB vertical bar |
| Display size | 337.92 × 270.336 mm (H×V) | Appearance of size | 358.5 × 296.5 mm (H×V) |
| Visual size | 341.6 × 274.0 mm (H×V) | Surface treatment | Mist side，Hard coating (3H) |
| Brightness(cd/m²) | 800 (Typ.) | contrast | 700 : 1 (Typ.) |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
| Signal system | LVDS (2 ch, 8-bit) , terminal , 30 pins | | |
| Maximum rated | Storage temperature: -30 ~ 85 °C Working temperature: -30 ~ 85 °C | | |
Hot Tags: 17.0" RisingStar G170ETN02.1 TFT LCD Module, China, factory, cheap, price, customized, quotation, window facing LCD, Ultra Brightness Screen, 2000nits screen, 55 inch lcd modules, 32 inch high bright displays, Outdoor Lcd display 2500nits, High Brightness Touch Screen, LCD Panel, LCD module, High Brightness Display., LCD panel, LCD module, high brightness display.
10.1" RisingStar G101EVN03.1 TFT LCD Module
2500 Cd/㎡ Outdoor LCD Advertising Screen
