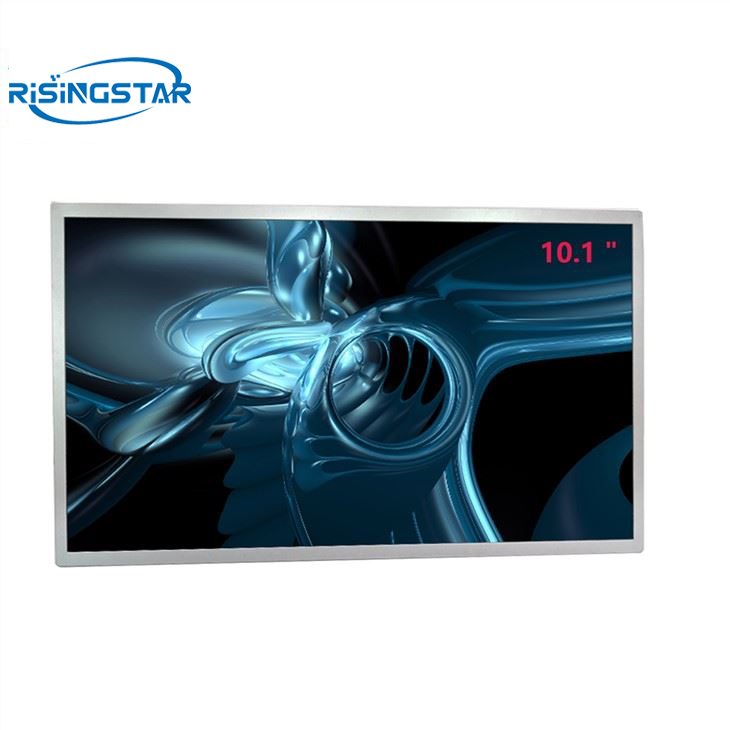

10.1" RisingStar G101EVN03.1 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.G101EVN03.1

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

10.1" RisingStar G101EVN03.1 TFT Lcd Module


Picture quality black technology.

The dark is darker, the light is brighter.

Industrial grade liquid crystal, to ensure the quality of liquid crystal.

NTSC 72% color gamut coverage, restore rich image color.


Same size model:G101EVN03.0、C101UAN01.0


brand RisingStar Model name G101EVN03.1
size 10.1" Screen type a-Si TFT-LCD,LCD module
resolution 1280(RGB)×800, WXGA, 149PPI Pixel configuration RGB vertical bar
Display size 216.96(wide)×135.6(high) mm Surface treatment mirror (Haze 0%)
Brightness(cd/m²) 1000 cd/m² (Typ.) contrast 1300:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Apply to Industrial and outdoor highlighting
Signal system LVDS (1 ch, 6/8-bit) , 40 pins , terminal Appearance of size 227.69×148.31×7.75(H×V×D) mm
Maximum rated Storage temperature: -30 ~ 70 °C    Working temperature: -20 ~ 60 °C
