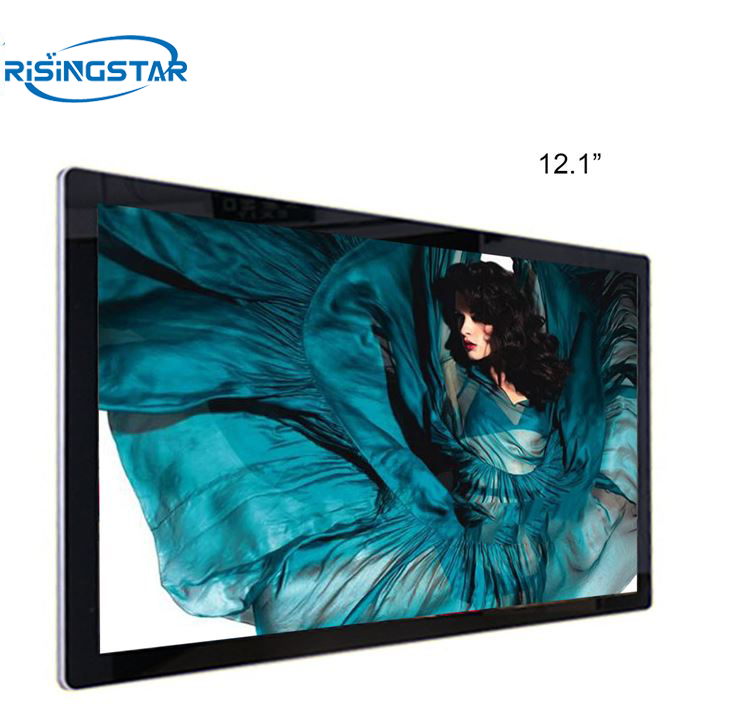

12.1" RisingStar G121EAN01.3 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.G121EAN01.3

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

2.1" RisingStar G121EAN01.3 TFT Lcd Module.

Sunlight Readable And Clear DisplayNTSC 70% Color Gamut Coverage and restore the abundant color of the imageThe brightness can be customized from 500nit-5000nit and the uniformity is well controlledIt can bear the high temperature and display the optimum image quality under extreme Weather and temperature.


Other models in the same size:G121EAN01.2

brand RisingStar Model name G121EAN01.3
size 12.1" Screen type LCD module,a-Si TFT-LCD
resolution 1280(RGB)×800 (WXGA) 124PPI Pixel configuration RGB vertical bar
Display size 261.12 × 163.2 (H×V) mm Appearance of size 283 × 185.1 × 9.9 (H×V×D) mm
Visual size 264.22 × 168.12 (H×V) mm Surface treatment Mist side,Hard coating (3H)
Brightness(cd/m²) 1500 cd/m² (Typ.) contrast 1000 : 1 (Typ.)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Apply to Industrial and outdoor highlighting
Signal system LVDS (1 ch, 6/8-bit) ,terminal,20 pins

Maximum rated Storage temperature: -30 ~ 85 °C    Working temperature: -30 ~ 85 °C
