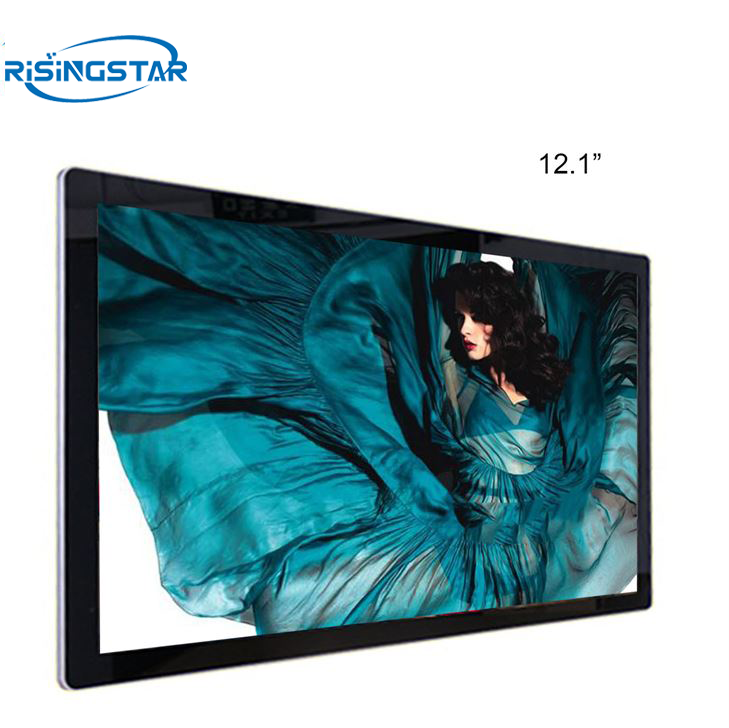

12.1" RisingStar G121EAN01.2 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.G121EAN01.2

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

High Brightness Lcd Display SeriesSunlight ReadableHas the patent of Ultra Thin structure Design and Advanced technology of image Quality.


500-5000NIT brightness customization, precise control of the brightness of each area.


brandRisingStarModel nameG121EAN01.2
size12.1"Screen typea-Si TFT-LCD,Lcd Module
resolution1280(RGB)×800 (WXGA) 124PPIPixel configurationRGB vertical bar
Display size261.12 × 163.2 (H×V) mmAppearance of size278×184×9.94((H×V×D) mm
Visual size264.22 × 168.12 (H×V) mmSurface treatmentMist side,Hard coating (3H)
Brightness(cd/m²)1000 cd/m² (Typ.)contrast1000 : 1 (Typ.)
Viewing Angle89/89/89/89 (Typ.)(CR≥10)Apply toIndustrial and outdoor highlighting
Signal system30 pins   LVDS (1 ch, 6/8-bit) , terminal

Maximum ratedStorage temperature: -30 ~ 85 °C    Working temperature: -30 ~ 85 °C
