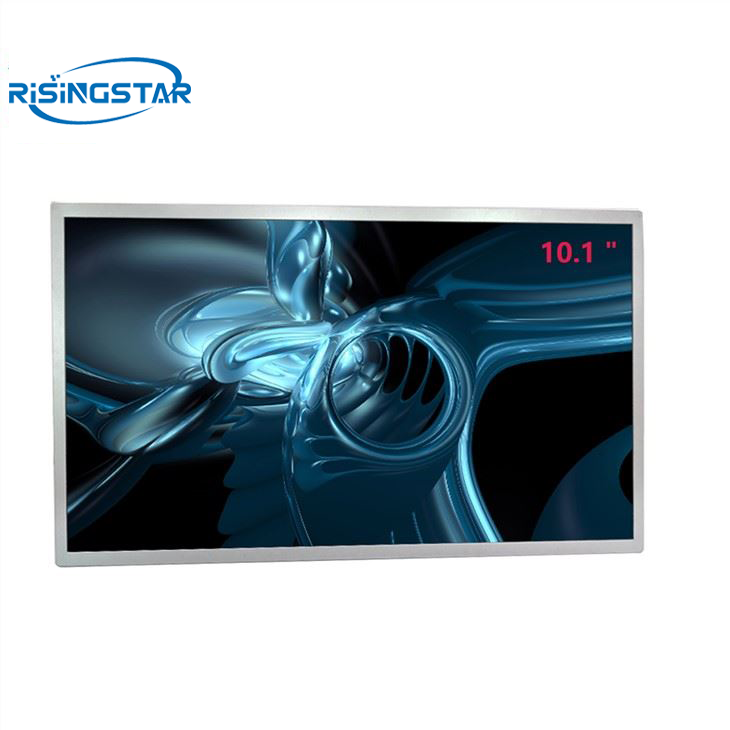

Risinglcd RisingStar G104XVN01.0 TFT Module
Risinglcd RisingStar G104XVN01.0 TFT Module
Risinglcd RisingStar G104XVN01.0 TFT Module

Risinglcd RisingStar G104XVN01.0 TFT Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.G104XVN01.0

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

yacht monitor, cruise ship monitor, industrial machinery interactive screen, brightness adjustment mode: automatic/manual.

RisingStar G104xvn01.0 is tested outdoors or in bright sunny places. It adopts industrial-grade LCD Panel, which is resistant to high temperature and low temperature, and does not black out under ultraviolet and infrared radiation. Quality determines the market.

Manufacturer: RisingStar     Model: G104XVN01.0

Size: 10.4 inch             Type: a-Si TFT-LCD, LCM

Resolution: 1024(RGB)×768 XGA 123PPI

Pixel arrangement: RGB vertical bar

Display area: 210.4 (W) × 157.8 (H) mm

Appearance size: 238.6 (W) × 175.8 (H) × 7 (D) mm

Response time: 20/10 (Typ.)(Tr/Td) ms

Viewing Angle: 89/89/89/89 (Typ.)

Display Mode: AMVA3, Normally Black, Transmissive

Color supported: 262K/16.2M , 60% NTSC

Light source type: WLED 50K hours, with LED driver

Weight: 295g (Typ.) Application: Industrial Field

Frame rate: 60Hz Touch technology: No touch

Appearance size: 238.6 (W) × 175.8 (H) × 7 (D) mm

Opening area: 215.4(W)×161.8(H) mm

Surface treatment: Matte, Hard coating (3H)

Display Brightness: 470 to 900cd/m² (Typ.)

Contrast 3000:1 (Typ.) (Transmittance)

Recommended viewing angle: full viewing angle

Interface type: 30 pins LVDS(6/8-bit) Voltage supply: 3.3V (Typ.)

Operating temperature: -30 ~ 80 °C ; Storage temperature: -30 ~ 80 °C

Lcd Module brightness customization range: 500-2000cd/㎡.
