Shenzhen Risingstar Outdoor High Light LCD Co., Lt

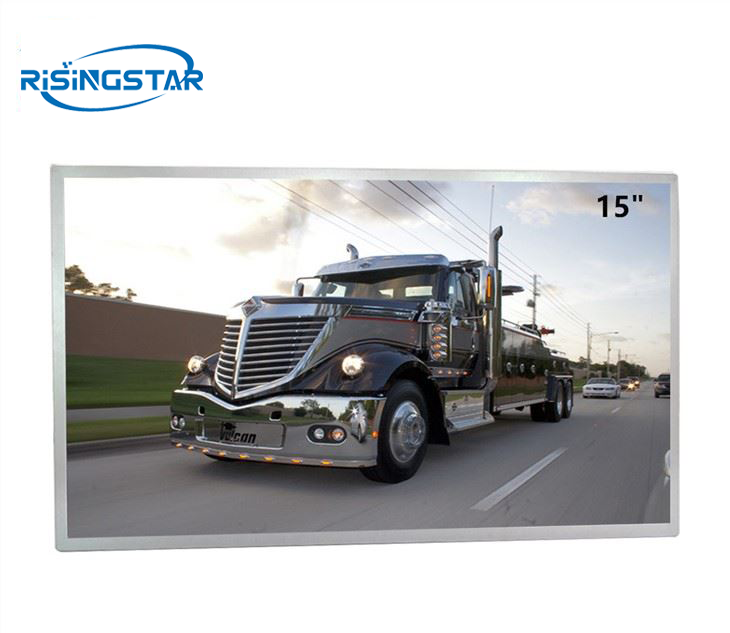

Model No.: G150XTN06.9
7× 24 hours all-weather operation, industrial life up to 50000 hours, and can support sleep/wake up function, suitable for convenience stores, fast food restaurants and other stores, airports, stations and other all-weather operation of public places.
500-5000NIT brightness customization, precise control of the brightness of each area.
| brand | RisingStar | Model name | G150XTN06.9 |
| size | 15.0" | Screen type | a-Si TFT-LCD,Lcd Module |
| resolution | 1024(RGB)×768 XGA 85PPI | Pixel configuration | RGB vertical bar |
| Display size | 304.128(H)×228.096(V) mm | Appearance of size | 326.5(H)×253.5(V) ×10(D)mm |
| Visual size | 311.9(H)×236.85(V) mm | Surface treatment | Mist side |
| Brightness(cd/m²) | 1600 cd/m² (Typ.) | contrast | 800 : 1 (Typ.) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
| Signal system | 20 pins LVDS (1 ch, 6/8-bit) , terminal | | |
| Maximum rated | Storage temperature: -30 ~ 70 °C Working temperature: -30 ~ 70 °C | | |
Hot Tags: 15.0" RisingStar g150xtn06.9 tft lcd module, China, factory, cheap, price, customized, quotation, window facing LCD, 65inch Lcd Display screen, Ultra Brightness Display, High Bright Lcd, tft digital panel, LCD screen for tv, 10 1 TFT LCD Panel, LCD panel, LCD module, High Brightness Display.
