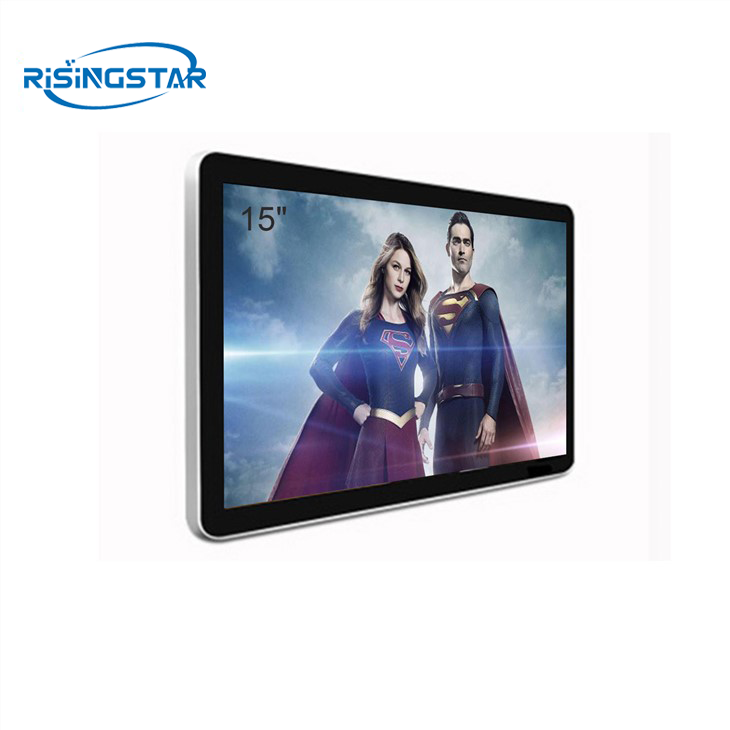

15.0" RisingStar G150XTN06.A TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.G150XTN06.A

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

Adopt hd screen, fine screen, toughened glass panel, safe and effective, smooth high-resolution playback, high quality technology, energy saving and environmental protection.


500-5000NIT brightness customization, precise control of the brightness of each area.

brand RisingStar Model name G150XTN06.A
size 15.0" Screen type a-Si TFT-LCD,Lcd Module
resolution 1024(RGB)×768   XGA   85PPI Pixel configuration RGB vertical bar
Display size 304.128(H)×228.096(V) mm Appearance of size 326.5(H)×253.5(V)×13.5(H)mm
Visual size 311.9(H)×236.85(V) mm Surface treatment Hard coating (2H),Antireflection processing
Brightness(cd/m²) 1800 cd/m² (Typ.) contrast 800 : 1 (Typ.)
Viewing Angle 80/80/70/80 (Typ.)(CR≥10) Apply to Industrial and outdoor highlighting
Signal system 20 pins  LVDS (1 ch, 6/8-bit) , terminal

Maximum rated Storage temperature: -30 ~ 70 °C    Working temperature: -30 ~ 70 °C


Hot Tags: 15.0" RisingStar g150xtn06.a tft lcd module, China, factory, cheap, price, customized, quotation, window facing LCD, outdoor monitor LCD screen, TFT Display screen, 55 inch open frame lcd, 55 inch Lcd Display supplier, bright screen, sulight lcdLCD Panel, LCD module, High Brightness Display.
