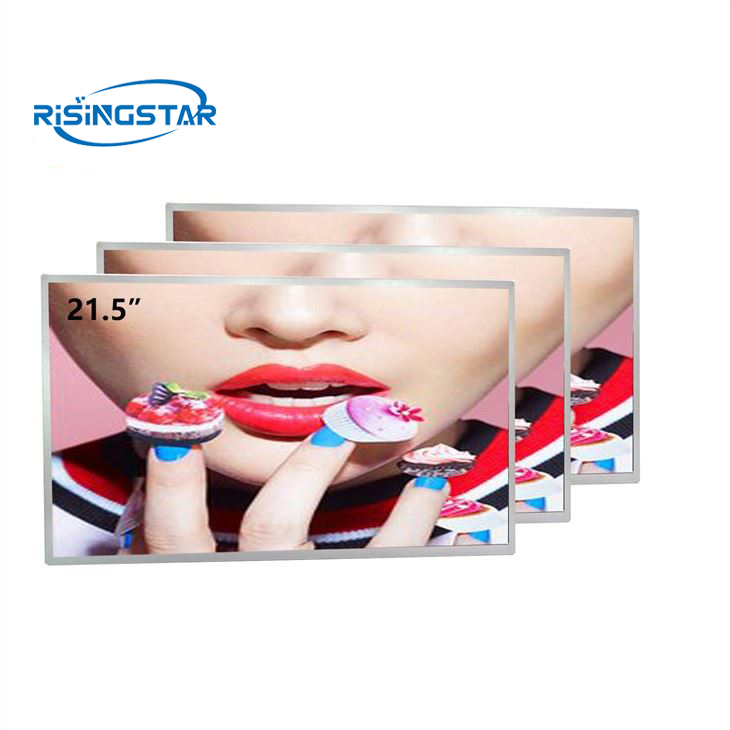

21.5" RisingStar P215HAN02.0 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.P215HAN02.0

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

   21.5" RisingStar P215HAN02.0 TFT Lcd Module


Highlight RGB color of the picture

RGB color mode, so that the pictures and videos displayed in the screen are more high-definition display in areas with strong light, the highlight screen is clearer than the ordinary screen.

500-5000NIT brightness customization, precise control of the brightness of each area.


brandRisingStarModel nameP215HAN02.0
size21.5.0"Screen typea-Si TFT-LCD,LCD module
resolution1920(RGB)×1080, FHD, 102PPIPixel configurationRGB vertical bar
Display size304.128(H)×228.096(V) mmAppearance of size501.1(H)×292.2(V) ×16.12(H) mm
Visual size480.7(H)×271.8(V) mmSurface treatmentMist side,Hard coating (3H)
Brightness(cd/m²)1500 cd/m² (Typ.)contrast1000 : 1 (Typ.)
Viewing Angle89/89/89/89 (Typ.)(CR≥10) Apply toDigital Signage and outdoor highlighting
Signal system30 pins  LVDS (2 ch, 8-bit) , terminal

Maximum ratedStorage temperature: -20 ~ 60 °C    Working temperature: -20 ~ 50 °C
