Shenzhen Risingstar Outdoor High Light LCD Co., Lt

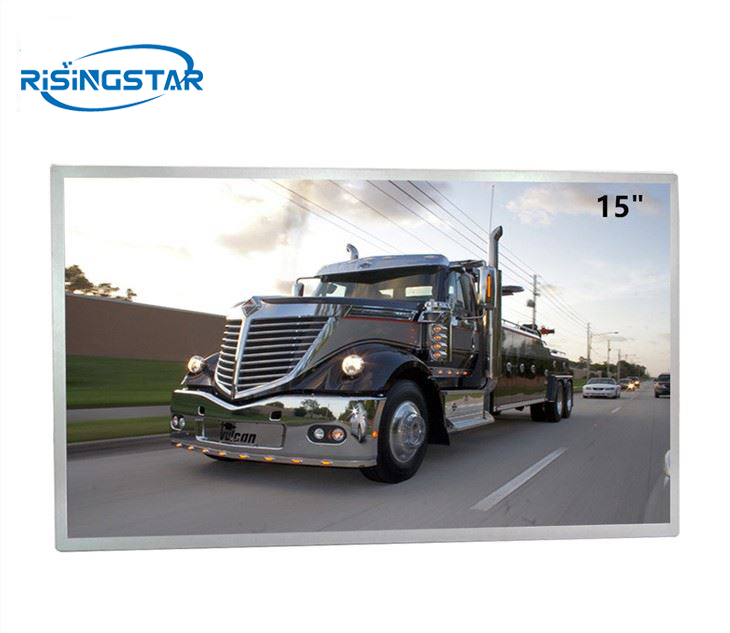

Model No.: G156HAN04.0
Outdoor highlight LCD screen, visible under the sun using straight down LED backlight, LCD screen brightness can reach 500-5000NITS (customized) built-in automatic sensor, can automatically adjust the screen brightness according to the environmental brightness, energy saving.
| brand | RisingStar | Model name | G156HAN04.0 |
| size | 15.6" | Screen type | a-Si TFT-LCD,Lcd Module |
| resolution | 1920(RGB)×1080 [FHD] 141PPI | Pixel configuration | RGB vertical bar |
| Display size | 344.16 × 193.59 mm (H×V) | Appearance of size | 363.8 × 215.9 × 10.82 mm (H×V×D) |
| Visual size | 347.06 × 196.49 mm (H×V) | Surface treatment | Mist side，Hard coating (3H) |
| Brightness(cd/m²) | 1000 cd/m² (Typ.) | contrast | 1000 : 1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
| Signal system | 30 pins LVDS (2 ch, 8-bit) , terminal | | |
| Maximum rated | Storage temperature: -30 ~ 85 °C Working temperature: -30 ~ 85 °C | | |
Hot Tags: 15.6" RisingStar g156han04.0 tft lcd module, China, factory, cheap, price, customized, quotation, window facing LCD, 55 inch lcd screen, nit LCD Panel, outdoor high bright panel, digital lcd panel, 55 inch Outdoor Lcd screen, outdoor lcd signage, LCD panel, LCD module, High Brightness Display.
