Shenzhen Risingstar Outdoor High Light LCD Co., Lt

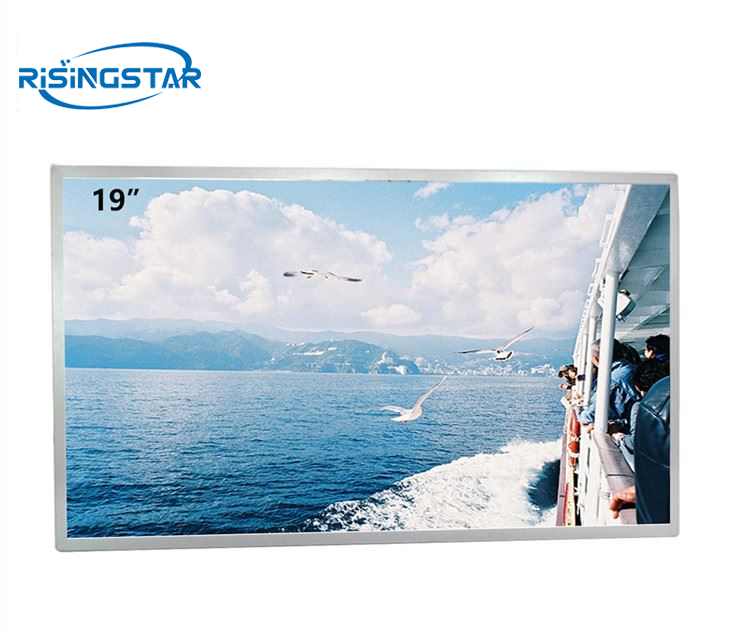

Model No.: G190ETN01.8
IPS High Brightness Display, high light transmittance, low power consumption, multi Angle can clearly display the picture, no deviation, no distortion of the picture, color distortion.
Anti-interference, high and low temperature resistance, suitable for use and operation in a variety of environments.
| brand | RisingStar | Model name | G190ETN01.8 |
| size | 19.0" | Screen type | a-Si TFT-LCD,Lcd Module |
| resolution | 1280(RGB)×1024, SXGA, 86PPI | Pixel configuration | RGB vertical bar |
| Display size | 376.32(H)×301.056(V) mm | Appearance of size | 396(H)×324(V) mm |
| Visual size | 379.72(H)×304.46(V) mm | Surface treatment | Mist side，Hard coating (3H) |
| Brightness(cd/m²) | 800 cd/m² (Typ.) | contrast | 1000 : 1 (Typ.) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
| Signal system | 30 pins LVDS (2 ch, 8-bit) , terminal | ||
| Maximum rated | Storage temperature: -30 ~ 70 °C Working temperature: -30 ~ 70 °C |
