Shenzhen Risingstar Outdoor High Light LCD Co., Lt

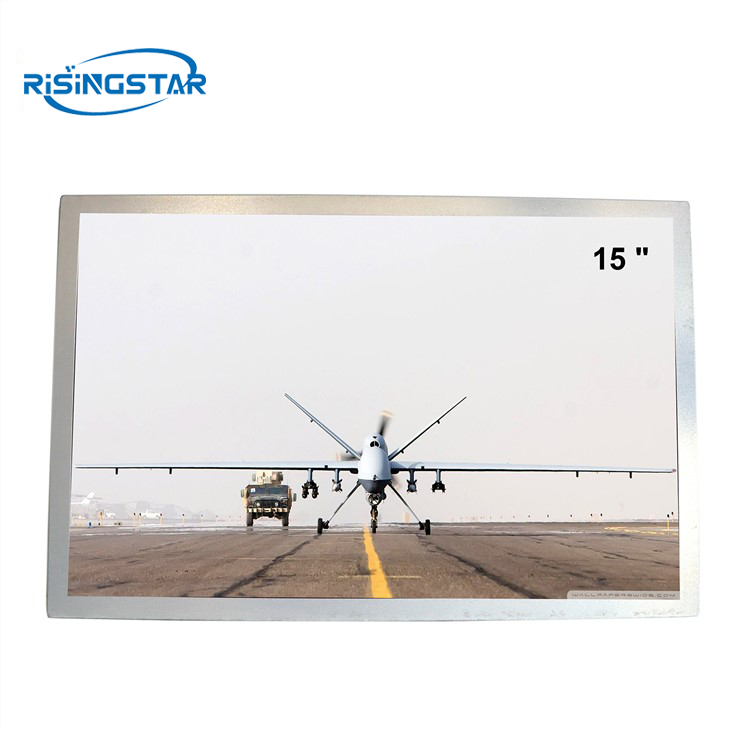

Model No.: G150XTN06.B
The hd screen is full of picture quality.
The display body adopts the new LCD liquid crystal panel, with 800NIT brightness and 24*7 all-weather performance to provide excellent consistent content transmission.
We offer 500-5000Nit brightness customization for precise control of brightness in each area.
| brand | RisingStar | Model name | G150XTN06.B |
| size | 15.0" | Screen type | a-Si TFT-LCD,Lcd Module |
| resolution | 1024(RGB)×768 (XGA) 85PPI | Pixel configuration | RGB vertical bar |
| Display size | 304.128 × 228.096 (H×V) mm | Appearance of size | 326.5 × 253.5 × 10 (H×V×D) mm |
| Visual size | 311.9 × 236.85 (H×V) mm | Surface treatment | Antireflection processing |
| Brightness(cd/m²) | 800 cd/m² (Typ.) | contrast | 800 : 1 (Typ.) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
| Signal system | 20 pins LVDS (1 ch, 6/8-bit) , terminal | ||
| Maximum rated | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 70 °C |
