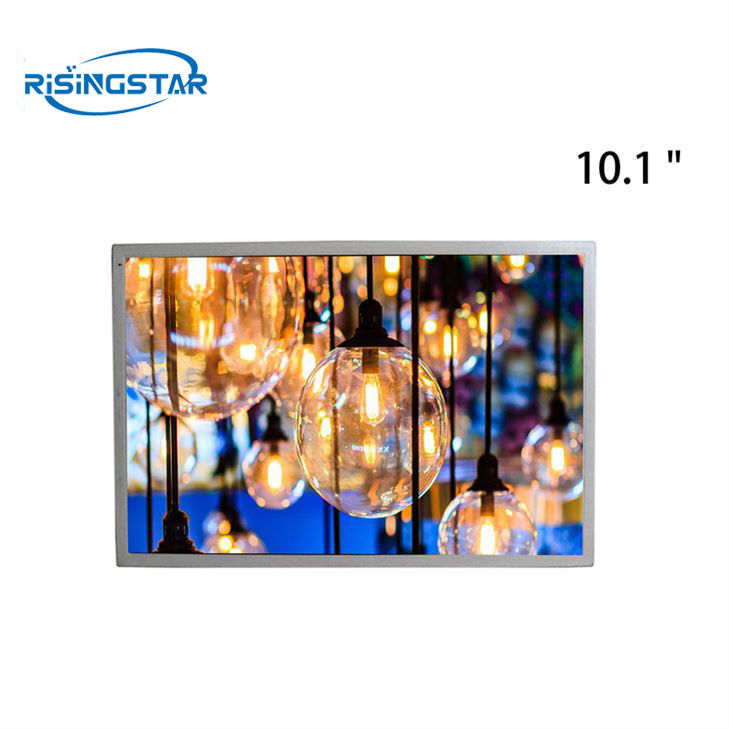

10.1" RisingStar C101UAN01.0 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.C101UAN01.0

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

10.1 inch RisingStar C101UAN01.0 brightness 1400nits sunlight readable TFT Lcd Module.


Read under the sun, clear, bring you a different visual experience.

Independent research and development of temperature control board and fan speed control board according to the internal temperature Automatically adjust at -30°C-85°CProlong the service life of the whole machine.


brand RisingStar Model name C101UAN01.0
size 10.1" Screen type a-Si TFT-LCD,LCD module
resolution 1920(RGB)×1200   [WUXGA]  224PPI Pixel configuration RGB vertical bar
Display size 217.44 × 135.9 mm (H×V) Appearance of size 236.96 × 163 mm (H×V×D)
Brightness(cd/m²) 1400 cd/m² (Typ.) contrast 5000 : 1 (Typ.)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Apply to Digital Signage and outdoor highlighting and Car show
Signal system LVDS (2 ch, 8-bit) , 60 pins ,FPCtermina

Maximum rated Storage temperature: -40 ~ 95°C    Working temperature: -30 ~ 85°C


Hot Tags: 10.1" RisingStar c101uan01.0 tft lcd module, China, factory, cheap, price, customized, quotation, window facing LCD, Lcd Display screens, high bright lcd displays, 3000 nits LCD Panel, 12 1 inch lcd, sunlight screen, Digital Windows DisplayLCD panel, LCD module, High Brightness Display.
