Shenzhen Risingstar Outdoor High Light LCD Co., Lt
Model No.: C120HAT01.3

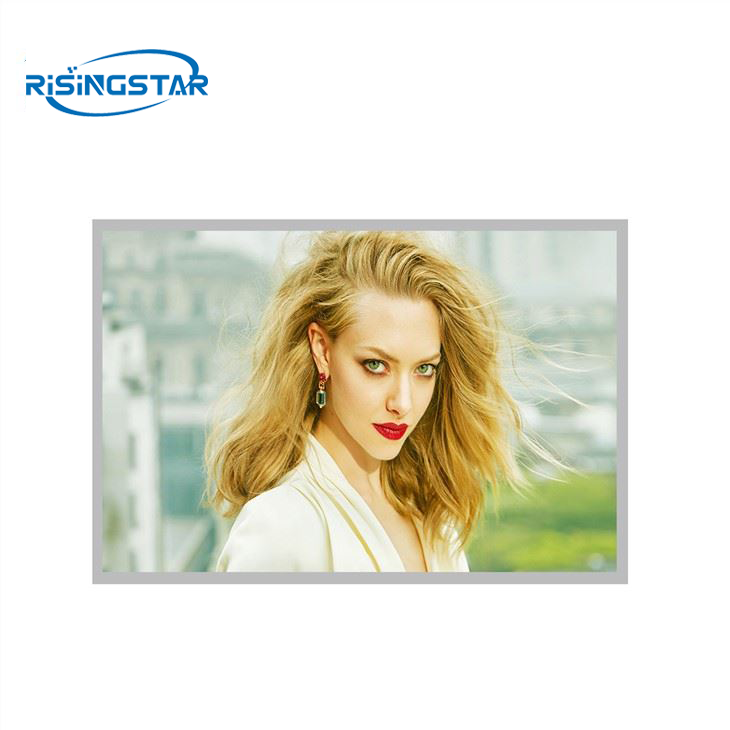

12.0 inch RisingStar C120HAT01.3 brightness 1035nits sunlight readable TFT Lcd Module.
New advertising machine 12 inch high-definition Outdoor Lcd vertical advertising screen
Wide View FeastWide viewing angle screen, full display, from front, side, up and down effect, no deviation.
| brand | RisingStar | Model name | C120HAT01.3 |
| size | 12.0" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1920(RGB)×860 175PPI | Pixel configuration | RGB vertical bar |
| Display size | 278.208(H)×124.614(V) mm | Appearance of size | 307.118×147.556 ×12.5 (H×V×D)mm |
| Brightness(cd/m²) | 1035 cd/m² (Typ.) | Surface treatment | Antireflection processing |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | contrast | 1400 : 1 (Typ.) |
| Signal system | 60 pins LVDS (2 ch, 8-bit) , terminal | Apply to | outdoor highlighting and Car show |
| Maximum rated | Storage temperature: -40 ~ 95°C Working temperature: -30 ~ 85°C |
