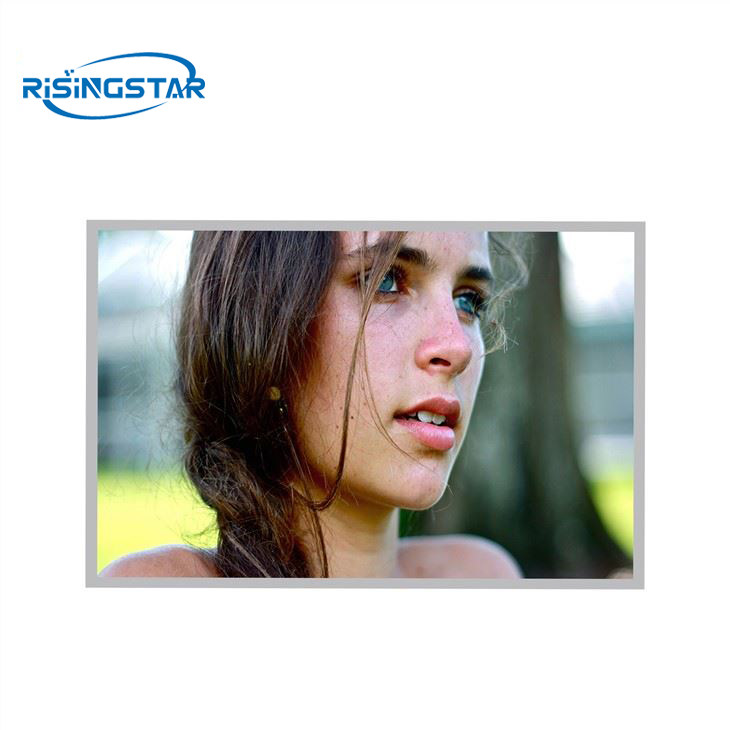

15.4" RisingStar LA154WU1-SL01 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.LA154WU1-SL01

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

15.4 inch RisingStar Display LA154WU1-SL01 brightness 800nits sunlight readable TFT Lcd Module.

brand RisingStar Display (RisingStar Display) Model name LA154WU1-SL01
size 15.4" Screen type a-Si TFT-LCD,LCD module
resolution 1920(RGB)×1200, WUXGA, 147PPI Pixel configuration RGB vertical bar
Display size 330.624×206.64(H×V)mm Surface treatment mirror (Haze 0%),Hard coating (3H)
Brightness(cd/m²) 800 cd/m² (Typ.) contrast 1450:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Min.)(CR≥10)  Apply to Outdoor highlight, car display
Signal system SLVS (1 ch, 2 port) , 6 pins, terminal Appearance of size 341.2×219.14×13(H×V×D) mm
Maximum rated Storage temperature: -40 ~ 95 °C    Working temperature: -30 ~ 85 °C
