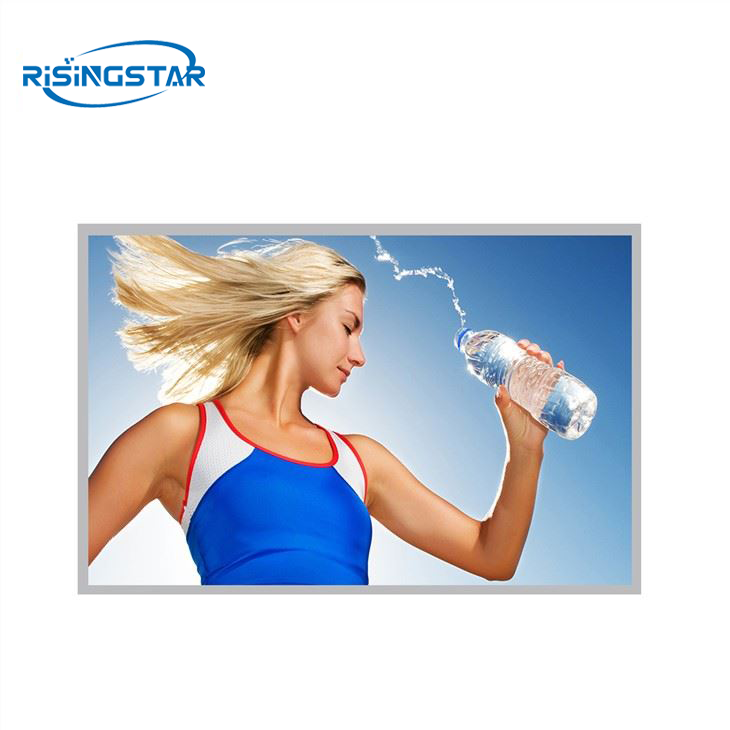

10.3" RisingStar LA103WF4-SL02 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.LA103WF4-SL02

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction


10.3 inch RisingStar Display LA103WF4-SL02 brightness 900nits sunlight readable TFT Lcd Module.


A, rich color, clear display

High Brightness Lcd Display, its color saturation is high, color rich, even professionals are also very recognized, generally high resolution Lcd Display, so the color display is quite rich, and the display effect is clear, can meet the requirements of high clarity and color diversification of customers.

Two, high brightness

One of the most prominent features of the high-brightness LCD screen is its high brightness, and the high-brightness TFT screen is generally suitable for outdoor terminal machines. When we use it outdoors, we do not have to worry about not being able to see the content clearly under the direct sunlight, and can meet the high standard customers with diversified needs. This is a big reason why so many people prefer bright LCD displays.

Third, strong compatibility

Highlight LCD display a variety of interfaces, IC is also the use of general model, so strong compatibility, easy to develop and assemble, early without spending a lot of manpower and material resources on the display selection tangle, but can directly choose the highlight LCD display, easy to grasp the technical problems, greatly save the project time.


brand RisingStar Display (RisingStar Display) Model name LA103WF4-SL02
size 10.3" Screen type a-Si TFT-LCD,LCD module
resolution 1920(RGB)×720, 200PPI Pixel configuration RGB vertical bar
Display size 243.648(W)×91.368(H) mm Surface treatment Anti-fingerprint (AF), Hard coating (3H), anti-reflection treatment
Brightness(cd/m²) 900 cd/m² (Typ.) contrast 1100:1 (Typ.)
Viewing Angle 89/89/89/89 (Min.)(CR≥10)  Apply to car display
Signal system LVDS (2 ch, 8-bit) , 60 pins , terminal Appearance of size 255.65(W)×105.87(H) ×13.09(D) mm
Maximum rated Storage temperature: -40 ~ 95 °C  Working temperature: -30 ~ 85 °C Vibration resistance: 3.0g (29.4m /s²)
