10.3
10.3
10.3

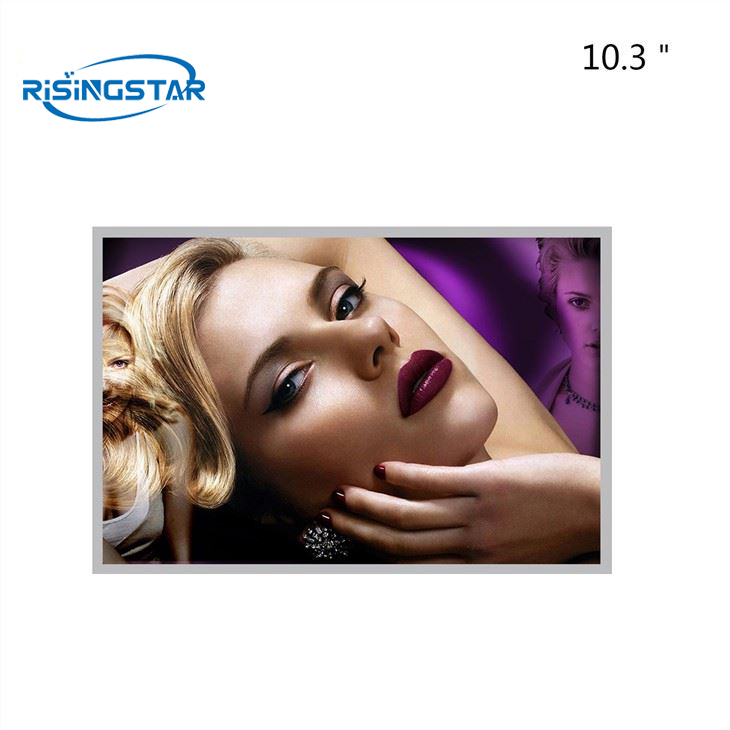

10.3" RisingStar LA103WF1-SL02 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.LA103WF1-SL02

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

10.3 inch RisingStar Display LA103WF1-SL02 brightness 850nits sunlight readable TFT Lcd Module.


The highlight LCD screen not only achieves ultra-bright direct sunlight viewing, but also realizes the large temperature range of -40℃ to 95℃.  And 300NIT - 5000Nit (gray value) ultra wide brightness range.

It is widely used in naked eye 3D display, expressway, industrial embedding, large square shopping places, medical, aviation, ships, special vehicles, long-distance buses, and a variety of high and low temperature complex harsh environment display equipment.


brand RisingStar Display (RisingStar Display) Model name LA103WF1-SL02
size 10.3" Screen type a-Si TFT-LCD,LCD module
resolution 1920(RGB)×720 167PPI Pixel configuration RGB vertical bar
Display size 243.648×91.368(H×V)mm Surface treatment Hard coating (3H)
Open zone 244.653×92.36(H×V) mm contrast 850:1 (Typ.)
Brightness(cd/m²) 850 cd/m² (Typ.) Apply to Outdoor highlight, car display
Viewing Angle 89/89/89/89 (Min.)(CR≥10) Appearance of size 260×110.8×14.15(H×V×D) mm
Signal system LVDS (2 ch, 8-bit) , termina

Maximum rated Storage temperature: -40 ~ 95 °C  Working temperature: -30 ~ 85 °C Vibration resistance: 3.0g (29.4m /s²)
