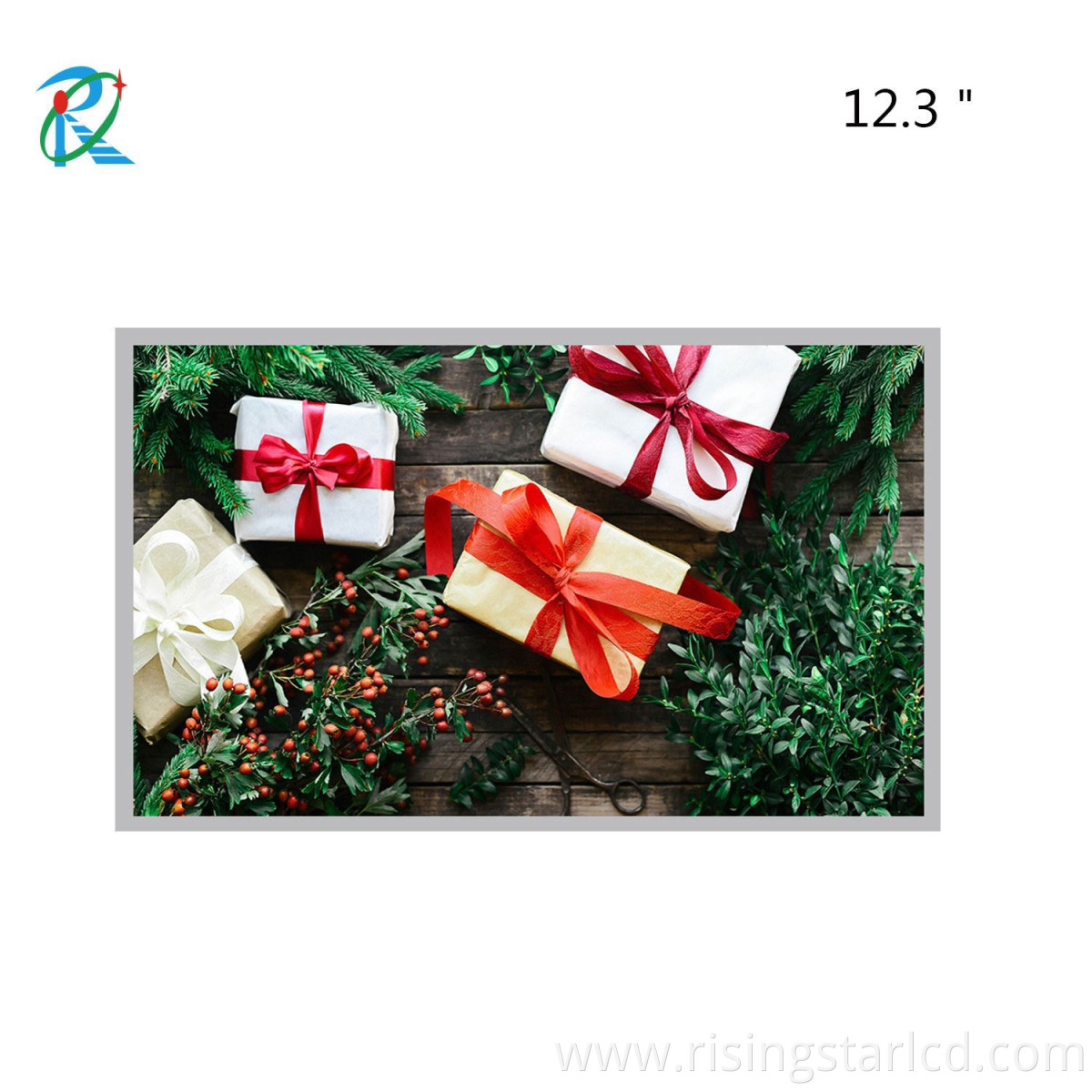

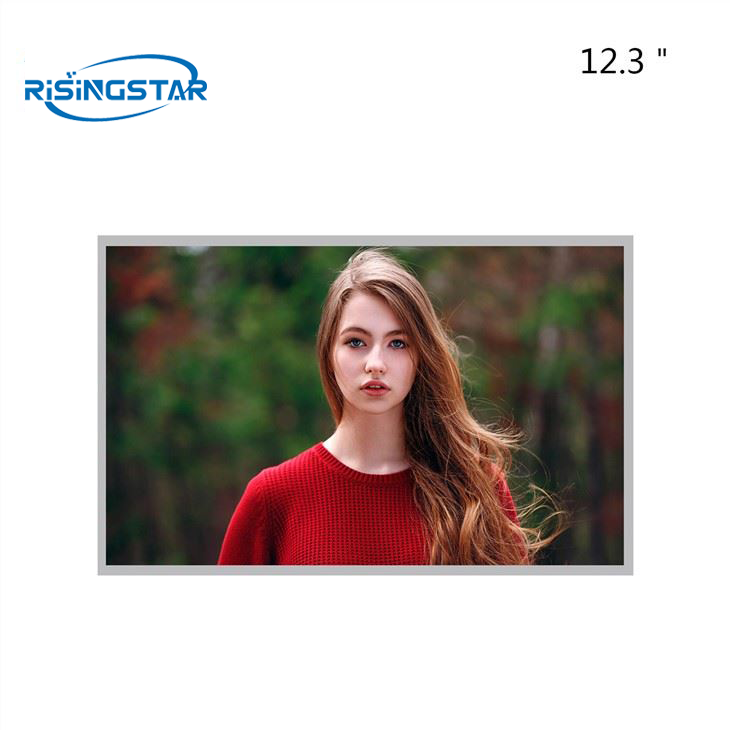

12.3" RisingStar LA123WF1-SR01 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.LA123WF1-SR01

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

12.3 inch RisingStar Display LA123WF1-SR01 High Brightness Lcd panel sunlight visible.


Models of the same brand and size:  LA123WF1-SR01, LA123WF1-SR03 ,LA123WF4-SR03,LA123WF5-SL01,LA123WF4-SR08,LA123WF4-SL02,LA123WF4-SL01,LA123WF4-SR01,LA123WF4-SL03,LA123WF3-SR02,LA123WF1-SR02,LA123WF4-SR09.

You can choose the right model according to your needs  .


brand RisingStar Display (RisingStar Display) Model name LA123WF1-SR01
size 12.3 inch Screen type a-Si TFT-LCD,Lcd Module
resolution 1920(RGB)×720   167PPI Pixel configuration RGB vertical bar
Display size 292.032×109.512(H×V)mm Surface treatment Hard coating
Brightness(cd/m²) 600 cd/m² (Min.) or customized contrast 800:1 (Typ.) [transmission]
Viewing Angle 89/89/89/89 (Min.)(CR≥10) Appearance of size 310×128×11.05mm(H×V×D)
Signal system 110 pins   RSDS (2 Channel) , FPC

Maximum rated Storage temperature: -40 ~ 95 °C  Working temperature: -40 ~ 85 °C

12.3-2
