12.1" Innolux G121X1-L04 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.G121X1-L04

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

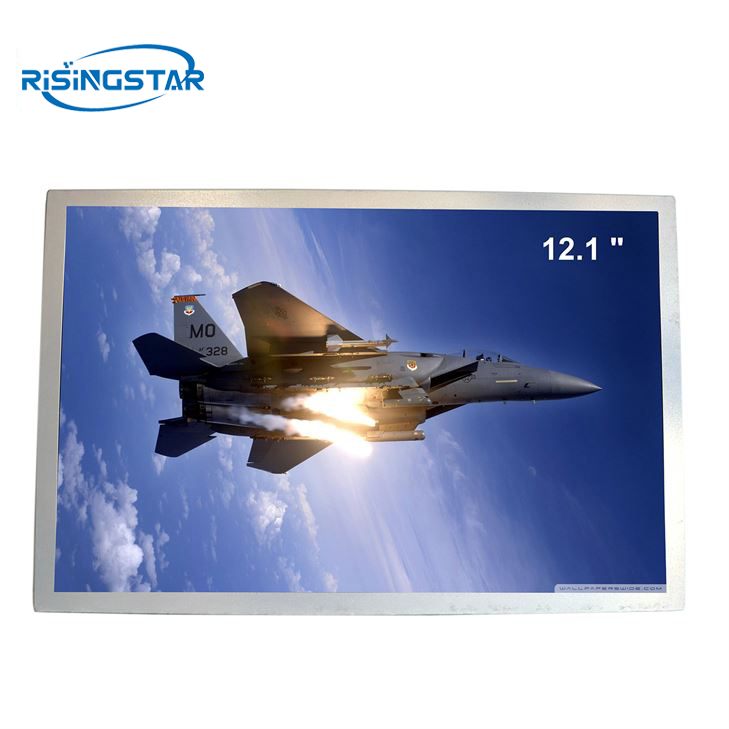

12.1 inch Innolux G121X1-L04 high brightness 500nits TFT LCD Panel sunlight visible.


brand Innolux Model name G121X1-L04
size 12.1 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1024(RGB)×768   [XGA]  105PPI Pixel configuration RGB vertical bar
Display size 245.76 × 184.32 mm (H×V) Surface treatment Fog surface, Hard coating (3H)
Visual size 249.0 × 187.5 mm (H×V) Contrast Ratio 700:1 (Typ.) [transmission]
Brightness(cd/m²) 500 cd/m² (Min.) or customized Outline dimension 260.5 × 204 × 7.7 mm (H×V×D)
Viewing Angle 80/80/70/70 (Typ.)(CR≥10)

Signal interface LVDS (1 ch, 6/8-bit) , terminal , 20 pins

work environment Storage temperature: -40 ~ 80 °C  Working temperature: -30 ~ 70 °C
