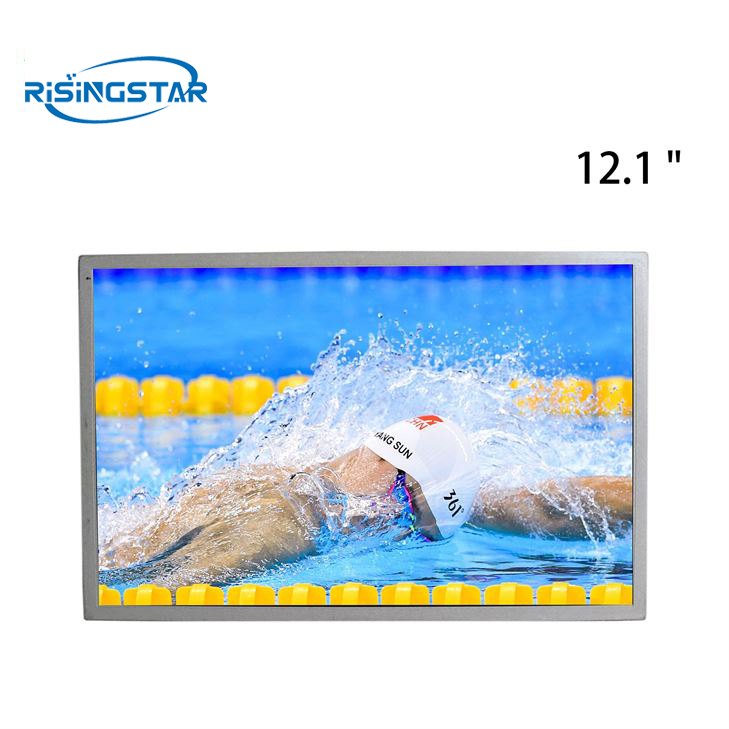

12.1" Innolux G121XGE-L01 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.G121XGE-L01

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

12.1 inch Innolux G121XGE-L01 High Brightness Lcd panel sunlight visible.


brand Innolux Model name G121XGE-L01
size 12.1 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 768(RGB)×1024, XGA, 105PPI  Pixel configuration RGB vertical bar
Display Area 184.32×245.76(H×V)mm Surface treatment Mirror (Haze 0%), Hard coating (3H)
Brightness(cd/m²) 600 cd/m² (Typ.)or customized Contrast Ratio 700:1 (Typ.) [transmission]
Viewing Angle 70/70/80/80 (Typ.)(CR≥10) Outline dimension 204×260.5×8.9(H×V×D)mm
Signal interface 20 pins   LVDS (1 ch, 6/8-bit) ,terminal

work environment Storage temperature: -40 ~ 85 °C  Working temperature: -30 ~ 80 °C
