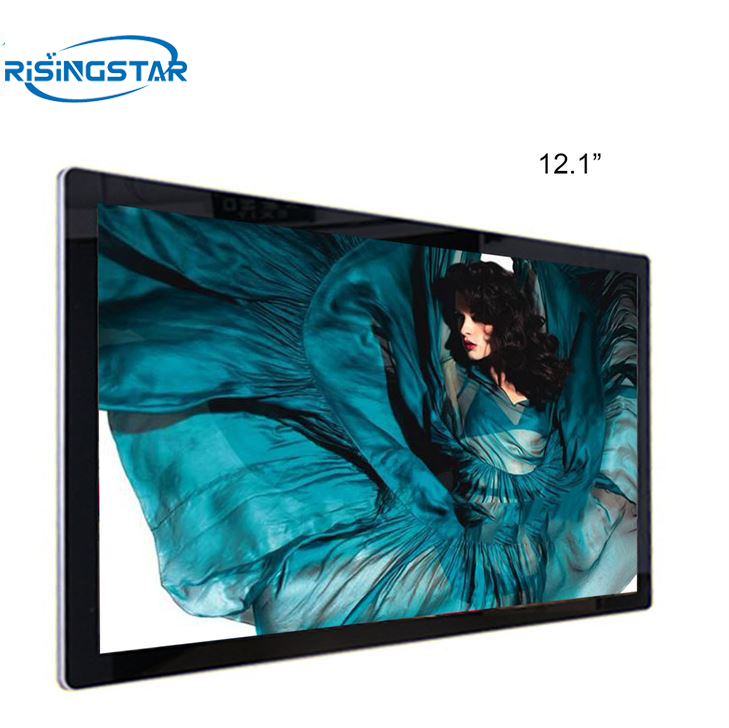

12.1" Innolux G121ICE-L01 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction


12.1 inch LCD high brightness Sunlight Readable Lcd Panel with 600 nits.


Not afraid of the sun, patent structure ultra-thin design, black quality technology.

Not afraid of the sun clearly show.

NTSC 72% color gamut coverage, restore super rich image color.

High temperature liquid crystal ensures superior display quality even in extreme weather conditions.


Same size models: G121S1-L02, G121XCE-L02, G121XCE-L01, G121X1-L03, G121X1-L02.


brand Innolux Model name G121ICE-L01
size 12.1 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1280(RGB)×800  WXGA 124PPI Pixel configuration RGB vertical bar
Display size 261.12×163.2mm(H×V) Surface treatment Fog surface, Hard coating (3H)
Open zone 264.12×166.2mm(H×V) Contrast Ratio 1000:1 (Typ.) [transmission]
Brightness(cd/m²) 600 cd/m² (Typ.)or customized Outline dimension 278×184×11 (H×V×D) mm
Viewing Angle 88/88/88/88(Typ.)(CR≥10)

Signal interface 30 pins   LVDS (1 ch, 6/8-bit) ,terminal

work environment Storage temperature: -30 ~ 85 °C  Working temperature: -30 ~ 80 °C
