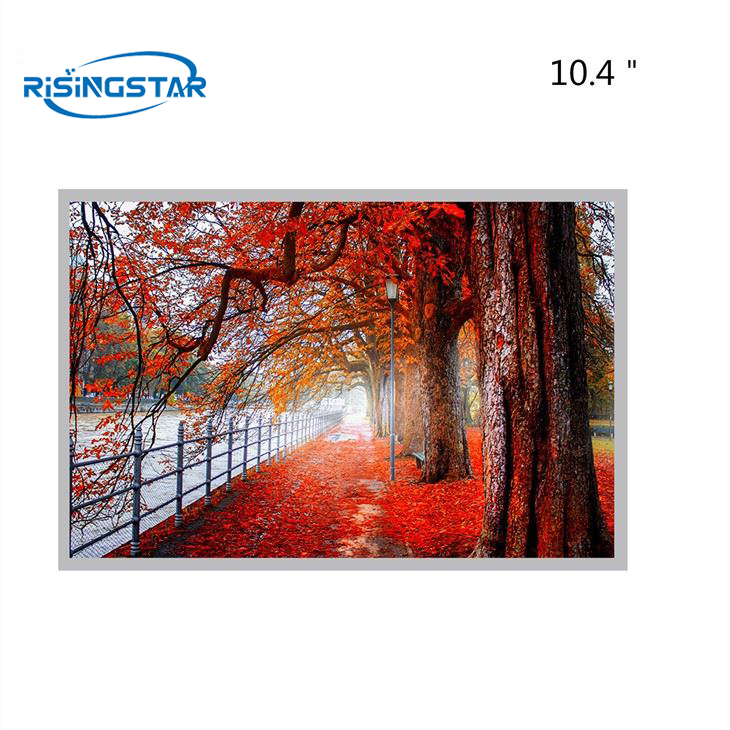

10.4" Innolux G104X1-L04 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.G104X1-L04

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

10.4" Innolux G104X1-L04 brightness 500nits sunlight readable TFT Lcd Module.

Picture quality black technology.

The dark is darker, the light is brighter.

Industrial grade liquid crystal, to ensure the quality of liquid crystal.

NTSC 72% color gamut coverage, restore rich image color.

Same size other models: G104ACJ-L01, G104XCE-L01, G104V1-T03


brandInnoluxModel nameG104X1-L04
size10.4 inchScreen typea-Si TFT-LCD,LCD module
resolution ratio1024(RGB)×768   [XGA]  123PPIPixel configurationRGB vertical bar
Display size210.4 × 157.8 mm (H×V)Surface treatmentFog surface
Visual size215.4 × 161.8 mm (H×V)Contrast Ratio1000:1 (Typ.) [transmission]
Brightness(cd/m²)500 cd/m² (Min.) or customizedOutline dimension225.5 × 176.3 × 9.2 mm (H×V×D)
Viewing Angle88/88/88/88 (Typ.)(CR≥10)

Signal interfaceLVDS (1 ch, 6/8-bit) ,terminal, 30 pins

work environmentStorage temperature: -30 ~ 80 °C  Working temperature: -30 ~ 80 °C
