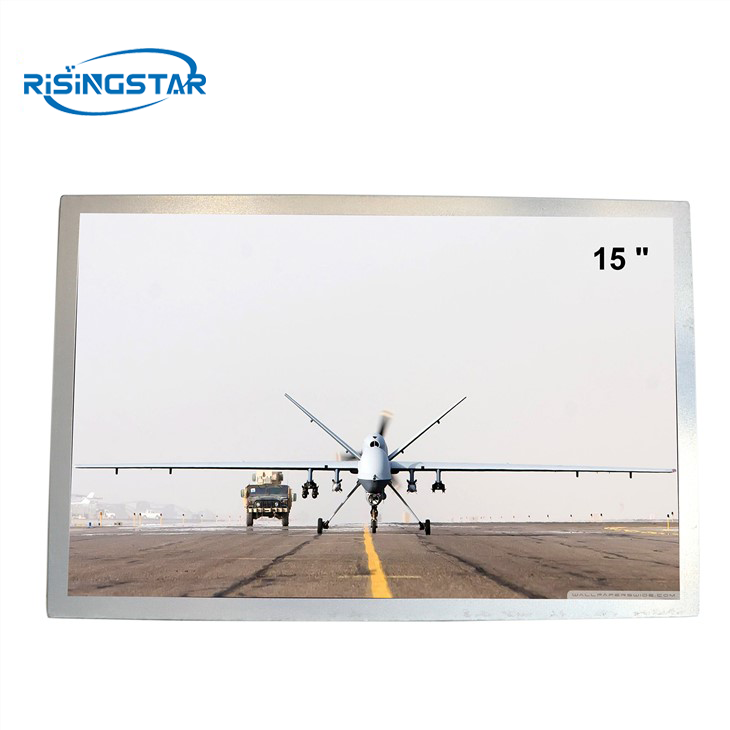

15.0" Innolux G150XNE-L01 TFT LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.G150XNE-L01

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

15.0" Innolux G150XNE-L01 brightness 500nits sunlight readable TFT Lcd Module.


Sunlight Readable And Clear DisplayNTSC 70% Color Gamut Coverage and restore the abundant color of the imageThe brightness can be customized from 500nit-5000nit and the uniformity is well controlledIt can bear the high temperature and display the optimum image quality under extreme Weather and temperature.


brandInnoluxModel nameG150XNE-L01
size15.0 inchScreen typea-Si TFT-LCD,LCD module
resolution ratio1024(RGB)×768   XGA   85PPIPixel configurationRGB vertical bar
Display size304.128(H)×228.096(V) mmSurface treatmentFog surface, Hard coating (3H)
Open zone307.4(H)×231.3(V) mmContrast Ratio2500:1 (Typ.) [transmission]
Brightness(cd/m²)500 cd/m² (Min.) or customizedOutline dimension326.5(H)×253.5(V) ×9.6(D) mm
Viewing Angle88/88/88/88 (Typ.)(CR≥10)

Signal interface20 pins   LVDS (1 ch, 6/8-bit) ,terminal

work environmentStorage temperature: -40 ~ 85 °C  Working temperature: -30 ~ 80 °C
