13.3 Innolux G133IGE-L03 TFT LCD Module
13.3 Innolux G133IGE-L03 TFT LCD Module
13.3 Innolux G133IGE-L03 TFT LCD Module
13.3 Innolux G133IGE-L03 TFT LCD Module
13.3 Innolux G133IGE-L03 TFT LCD Module
13.3 Innolux G133IGE-L03 TFT LCD Module

13.3 Innolux G133IGE-L03 TFT LCD Module

Payment Type:T/T,D/P,D/A,Paypal

Incoterm:CFR,FOB,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Port:Shenzhen

Product Description
Product Attributes

Model No.G133IGE-L03

BrandInnolux

Brightness500-nits

Size13.3-inch

BrandInnolux

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Place of OriginShenzhen

PortShenzhen

Payment TypeT/T,D/P,D/A,Paypal

IncotermCFR,FOB,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:

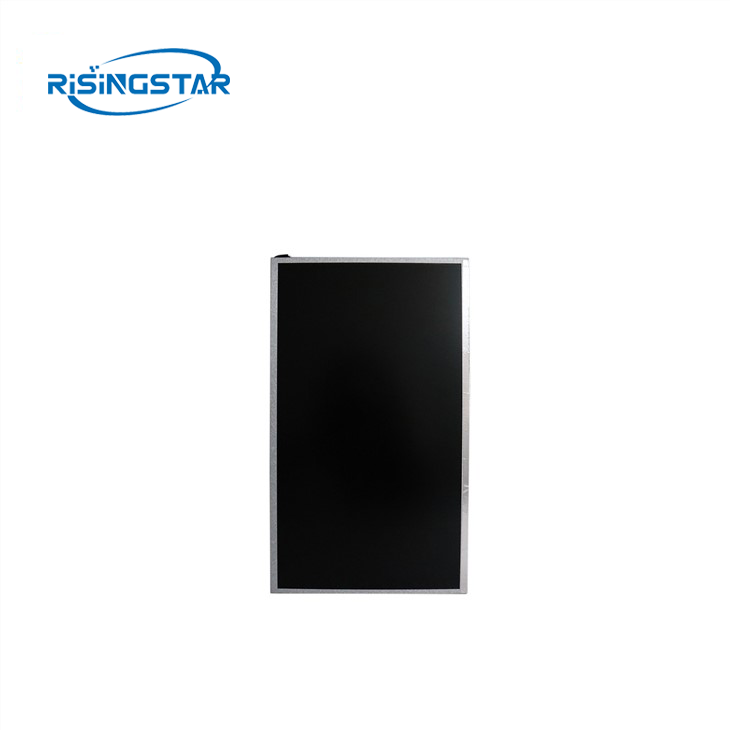

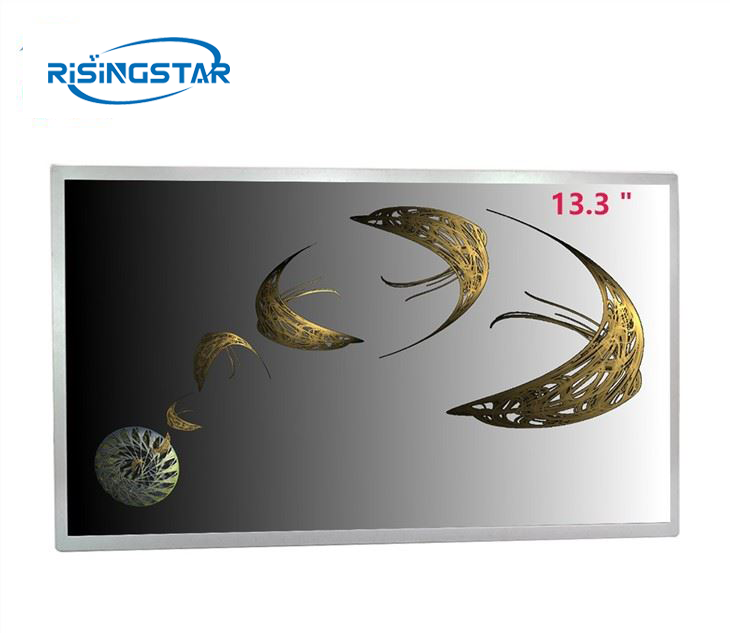

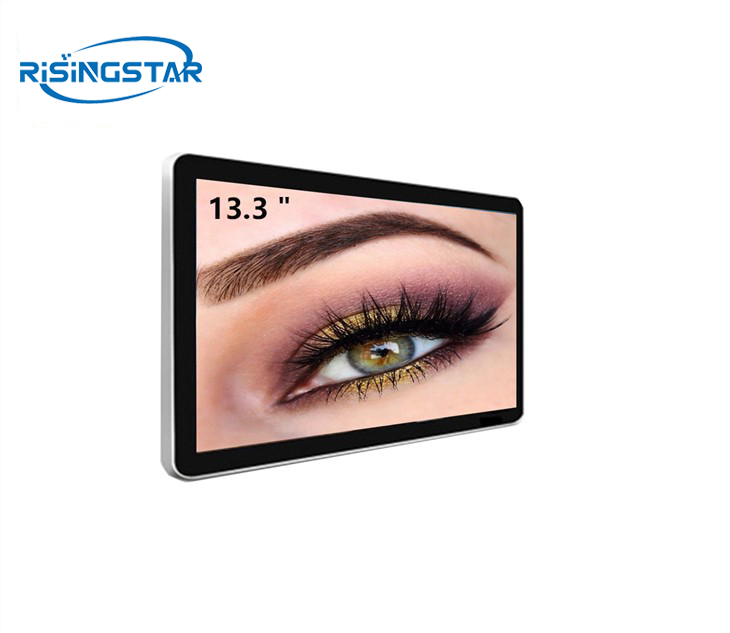

13.3" Innolux G133IGE-L03 TFT Lcd Module
The 13.3" Innolux G133IGE-L03 TFT LCD Module represents a cutting-edge solution for applications that require superior visibility in challenging lighting conditions. As a 10.1" - 27" High Brightness LCD Panel performs well in outdoor environments where sunlight washes out traditional displays.Its advanced technology, even in direct sunlight can ensure good readability, make it become an industrial control panel, outdoor signs and military display applications such as the ideal choice. With impressive brightness levels and high contrast, the G133IGE-L03 delivers crisp, crisp images and vibrant colors that remain legible under bright sunlight.This rugged, Sunlight Readable Tft Panel is designed to withstand harsh environmental conditions, including extreme temperatures and high humidity, ensuring reliable performance in demanding applications.While this specific model is from Innolux, it is worth noting that our inventory includes a variety of high quality LCD module solutions from leading manufacturers such as RisingStar Panel, ensuring compatibility and flexibility to meet different project requirements.
13.3Sunlight Readable 13.3inch LCD Module2
brand Innolux Model name G133IGE-L03
size 13.3 inch Screen type a-Si TFT-LCD,LCD module
resolution ratio 1280(RGB)×800   WXGA   113PPI Pixel configuration RGB vertical bar
Display size 286.08×178.8(H×V)mm Surface treatment Fog surface, Hard coating (3H)
Open zone 289.1×181.8(H×V)mm Contrast Ratio 800:1 (Typ.) [transmission]
Brightness(cd/m²) 500 cd/m² (Typ.)or customized Outline dimension 308.7×195×8.2(H×V×D)mm
Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
Signal interface 20 pins   LVDS (1 ch, 6/8-bit) ,terminal
work environment Storage temperature: -40 ~ 80 °C  Working temperature: -30 ~ 70 °C

Sunlight Readable 13.3inch LCD Module4
