Shenzhen Risingstar Outdoor High Light LCD Co., Lt
Payment Type:T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF,EXW
Min. Order:1 Piece/Pieces
Transportation:Land,Air,Express,Ocean
Model No.: G101ICE-L01
Brand: Innolux
Size: 10.1-inch
Brightness: 500-nits
Brand: Innolux
Transportation: Land,Air,Express,Ocean
Place of Origin: Shenzhen
Payment Type: T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF,EXW

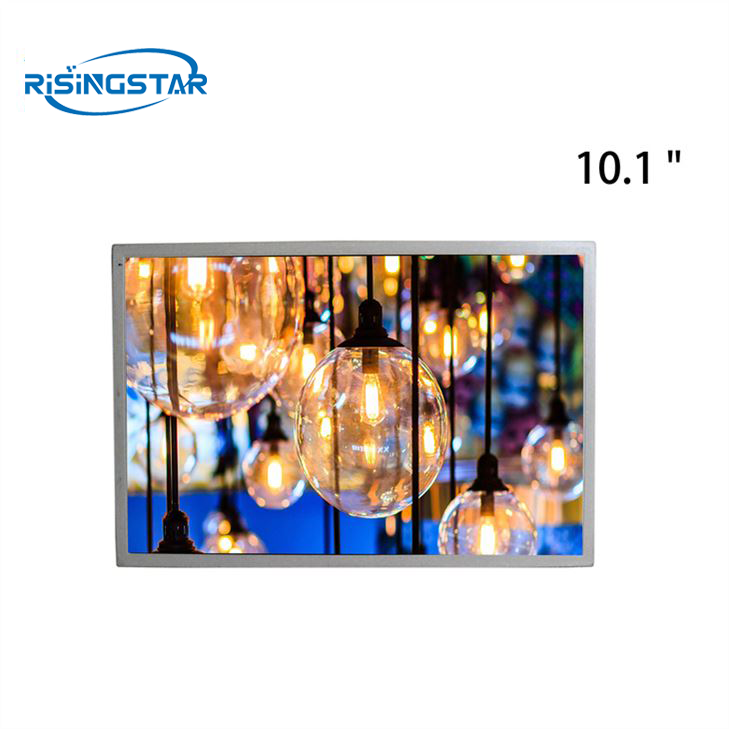

10.1" Innolux G101ICE-L01 brightness 500nits sunlight readable TFT Lcd Module.
| brand | Innolux | Model name | G101ICE-L01 |
| size | 10.1 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution ratio | 1280(RGB)×800 WXGA 149PPI | Pixel configuration | RGB vertical bar |
| Display size | 216.96×135.6(H×V）mm | Surface treatment | Fog surface, Hard coating (3H) |
| Open zone | 218.96×137.6(H×V）mm | Contrast Ratio | 800:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 500 cd/m² (Min.) or customized | Outline dimension | 230.7×152.55×7mm(H×V×D) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | ||
| Signal interface | 40 pins LVDS (1 ch, 6/8-bit),terminal | ||
| work environment | Storage temperature: -25 ~ 70 °C Working temperature: -20 ~ 70 °C |
Hot Tags: 10.1" innolux g101ice-l01 lcd module, China, factory, cheap, price, customized, quotation, window facing LCD, Small Size LCD screen, 1500 nits lcd board, 2000nit LCD Panel, Big Lcd Display, Outdoor TV displays, windows display
10.1" Innolux NJ101IA-01S LCD Module
17.0" Innolux G170J1-LE1 TFT LCD Module
