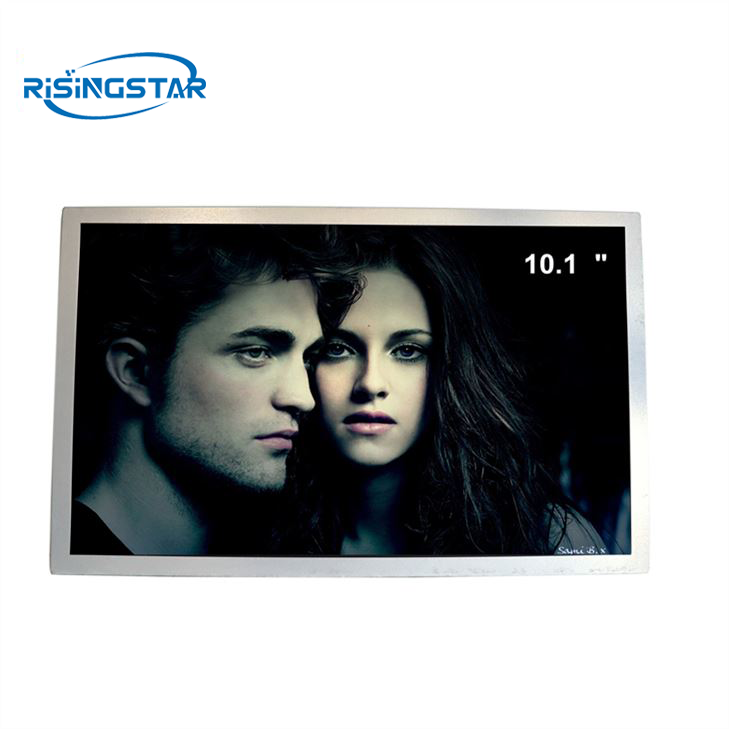

10.1" Innolux NJ101IA-01S LCD Module

Payment Type:T/T,D/P,D/A,Paypal

Incoterm:FOB,CFR,CIF,EXW

Min. Order:1 Piece/Pieces

Transportation:Ocean,Land,Air,Express

Port:Shenzhen

Product Description
Product Attributes

Model No.NJ101IA-01S

BrandInnolux

Size10.1-inch

Brightness500-nits

BrandInnolux

Supply Ability & Additional Information

TransportationOcean,Land,Air,Express

Place of OriginShenzhen

PortShenzhen

Payment TypeT/T,D/P,D/A,Paypal

IncotermFOB,CFR,CIF,EXW

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction
brand Innolux Model name NJ101IA-01S
size 10.1 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1280(RGB)×800   WXGA   149PPI Pixel configuration RGB vertical bar
Display size 216.96(H)×135.6(V) mm Surface treatment Hard coating
Visual size 219.46(H)×138.1(V) mm Contrast Ratio 800:1 (Typ.) [transmission]
Brightness(cd/m²) 500 cd/m² (Typ.)or customized Outline dimension 229.46(H)×149.1(V) ×7.7(D) mm
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)

Signal interface 40 pins   LVDS (1 ch, 8-bit),terminal

work environment Storage temperature: -30 ~ 80 °C  Working temperature: -20 ~ 70 °C
