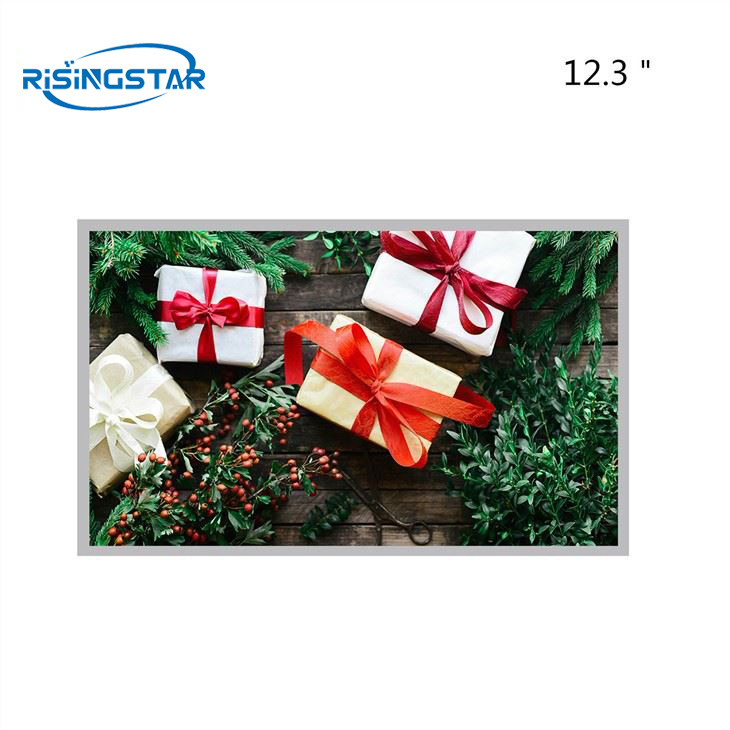

12.3" Innolux DJ123IA-01B LCD Module

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.DJ123IA-01B

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:
Product Introduction

12.3 inch Innolux DJ123IA-01B high brightness 750nits TFT LCD Panel sunlight visible.

1.Reserved automatic dimming system interface,automatically adjust LCD screen brightness according to outdoor brightness.

2.Adopt imported LED lamp which is low power,high luminous efficiency, and low power consumption.

3.LED driver is drove by Low-voltage constant current,safe and reliable.


The same size model: JJ103IA-12A, JJ123IA-01J




brand Innolux Model name DJ123IA-01B
size 12.3 inch Screen type a-Si TFT-LCD,Lcd Module
resolution ratio 1920(RGB)×720, 166PPI Pixel configuration RGB vertical bar
Display Area 292.608×109.728(H×V)mm Surface treatment /
Brightness(cd/m²) 750 cd/m² (Typ.)or customized Contrast Ratio 1000:1 (Typ.) [transmission]
Viewing Angle 85/85/85/85(Typ.)(CR≥10) Outline dimension 310×129.1×15.5mm(H×V×D)
Signal interface LVDS (2 ch, 8-bit) , 50 pins ,terminal

work environment Storage temperature: -40 ~ 90 °C  Working temperature: -30 ~ 85 °C
